Blue Sea Systems

Low stock: 3 left

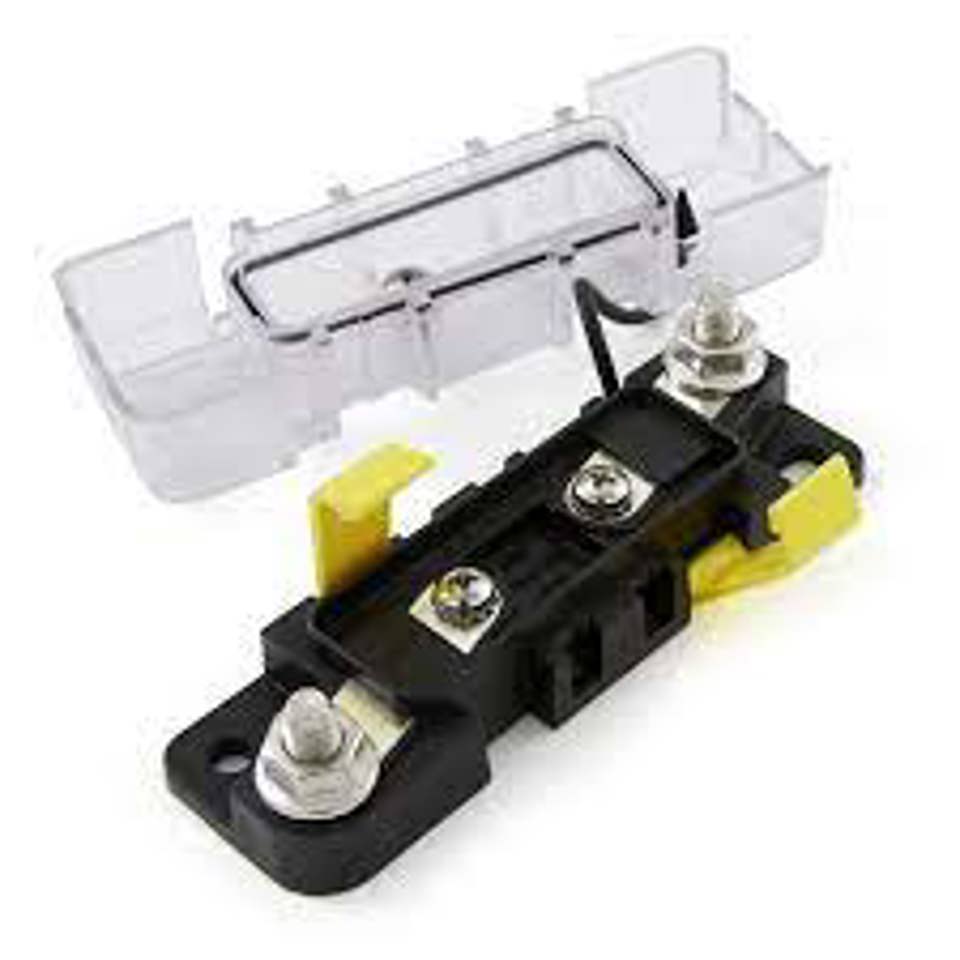

AMI / MIDI Safety Fuse Block

7720

• Ignition protected for installation aboard gasoline or diesel powered boats
• Sealed cover protects fuses from the harsh marine environment
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• 200A maximum with 4/0 cable
• Accepts Blue Sea Systems Square Format standard or custom label
• Fuses sold separately



Specifications
Maximum Amperage	200A
Maximum Voltage	32V DC
Stud Size	M8 x 1.25
Fuse Screw	M5 x 0.8
Recommended Screw Torque	27 in-lb (3.05 N·m)
Recommended Stud Torque	120 in-lb (13.56 N·m)
Ring Terminal Size	M8 (5/16")
Weight	0.15lb (0.07 kg)
