Tricab - Marine Grade Tinned 3 Core 6mm^2 Cable - BVA-PDXD/3C6BK (BLACK) Per Metre
Tricab - Marine Grade Tinned 3 Core 6mm^2 Cable - BVA-PDXD/3C6BK (BLACK) Per Metre
276 in stock
Couldn't load pickup availability
Tricab - Marine Grade Tinned 3 Core 6mm^2 Cable - BVA-PDXD/3C6BK (BLACK)
Type: 3x6mm2 SHF-1 0.6/1KV 90C IEC 92-350 IEC60332-3-22 IEEE-45 LSZH TACW (BROWN, BLUE, EARTH) - Lowest Bend Radius @ 30mm
Colour: BLACK (BROWN, BLUE, EARTH)
Price: Per metre - Contact onlinesales@obmghk.com for high volume orders.
-

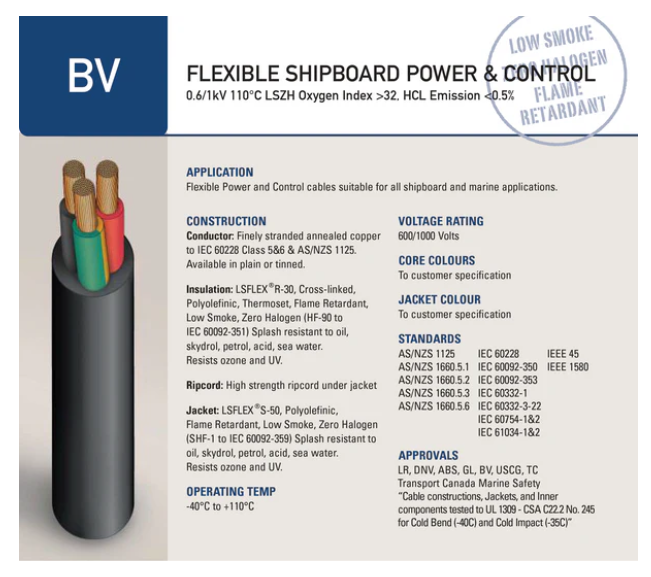

FLEXIBLE SHIPBOARD POWER & CONTROL
APPLICATION
Flexible Power and Control cables suitable for all shipboard and marine applications.
CONSTRUCTION
Conductor: Finely stranded annealed copper to IEC 60228 Class 5&6 & AS/NZS 1125. Available in plain or tinned.
Insulation: LSFLEX®R-30, Cross-linked, Polyolefinic, Thermoset, Flame Retardant, Low Smoke, Zero Halogen (HF-90 to IEC 60092-351) Splash resistant to oil, skydrol, petrol, acid, sea water.
Resists ozone and UV.
Ripcord: High strength ripcord under jacket
Jacket: LSFLEX®S-50, Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen (SHF-1 to IEC 60092-359) Splash resistant to oil, skydrol, petrol, acid, sea water.
Resists ozone and UV.
OPERATING TEMP
-40°C to +110°C
VOLTAGE RATING
600/1000 Volts
CORE COLOURS
Brown, Blue, Earth
JACKET COLOUR
Black
STANDARDS
AS/NZS 1125 AS/NZS 1660.5.1 AS/NZS 1660.5.2 AS/NZS 1660.5.3 AS/NZS 1660.5.6
IEC 60228, IEC 60092-350 IEC 60092-353 IEC 60332-1 IEC 60332-3-22 IEC 60754-1&2 IEC 61034-1&2
IEEE 45 IEEE 1580
APPROVALS
LR, DNV, ABS, GL, BV, USCG, TC
Transport Canada Marine Safety
“Cable constructions, Jackets, and Inner components tested to UL 1309 - CSA C22.2 No. 245 for Cold Bend (-40C) and Cold Impact (-35C)”
