OceanLED

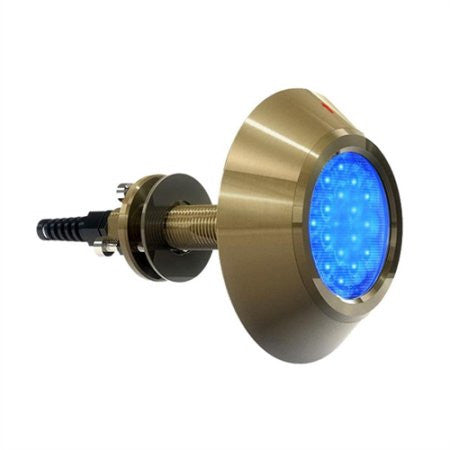

OceanLED -001-500731-2010 TH HD Gen 2 Midnight Blue

OceanLED -001-500731-2010 TH HD Gen 2 Midnight Blue

Out of stock

USD $1,584.00 USD
USD $1,584.00 USD
Sale Sold out
Shipping calculated at checkout.

OCEAN LED 001-500731 OCEANLED 2010 TH HD GEN2 MIDNIGHT BLUE



2010TH HD Gen2
High Definition Underwater Lighting Excellence

The original Thru-Hull with the world's smallest hole cut-out for a thru hull light at only 1 is now brighter again - the 2010TH HD Gen2 model is 67% brighter than its predecessor by exploiting the next generation of High Definition LEDs from Cree.

With 7,000-fixture lumen brightness and a 1-inch (25mm) profile head make the 2010TH the ideal underwater light for transom mount applications.

Suitable for all hull types up to and over 65' (20m) using 2-6 lights with spacing of 3-5' (1-1.5m) - for metal hulls, choose the Delrin Isolation Sleeve accessory. Deutsch plug-and-play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium™ glass lens. Three super bright LED color options.

  • 1 Hole in Hull
  • 67% Brighter than the Original 2010
  • Equal to 250w HID/Metal Halide
  • 12/24V DC (AC Upgrade Option)
  • 40,000+ Hour Life
  • Aluminium Bronze AB2
  • Plug & Play
  • No Breakable Parts
Mounting Recommendations 2010TH HD
Boat size up to and over 65' (20m)
Transom / Hull spacing 3-5' (1-1.5m)
Transom quantity 2-6
Maximum hull thickness 31/2" (90mm)
Installation depth (to top of fixture) 8-10in (200-250mm)
Technical
Light output equivalent to 250W HID Metal Halides
Fixture Lumens* (total light output from a finished fixture) 7000
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32V DC
Minimum-Maximum operating voltage AC 90-270V AC
Current / Amp draw (DC) 12V DC 5.8A24V DC 2.9A
Current / Amp draw (AC/optional) 110V AC 50/60HZ 0.76A 240V AC 50/60HZ 0.35A
Approx. light penetration (avg. water quality) 59' (18m)
Approx. Light penetration (perfect water quality) up to 140' (45+m)
Driver type External
Driver size (L x W x H) TBA
Physical
Diameter of fixture 51/2" (140mm)
Profile (height) of fixture 1
