OceanLED -001-500744-2010 XFM HD Gen 2 Ultra White
OCEAN LED 001-500744 OCEANLED 2010 XFM HD GEN2 ULTRA WHITE

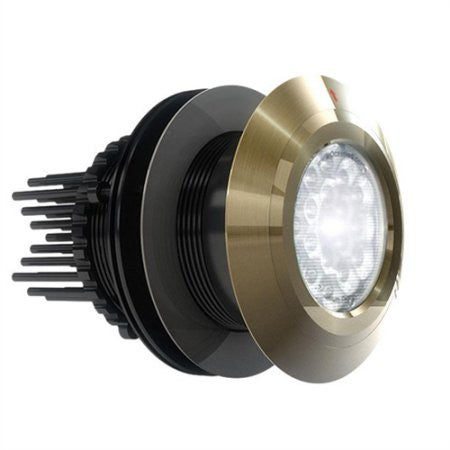

2010XFM HD Gen2
High Definition Underwater Lighting Excellence
XFM models, or Xchangeable Flush Mounts, are just that - they're exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.
At 7,000-fixture lumen brightness the 2010XFM HD Gen2 model is 67% brighter than its predecessor by exploiting the next generation of High Definition LEDs from Cree.
Suitable for all hull types up to and over 65' (20m) using 2-6 lights with spacing of 3-5' (1-1.5m) - for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plug-and-play quick connectors make this light a quick fit.
Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium™ glass lens.
|Mounting Recommendations||2010XFM HD|
|Boat size||up to and over 65' (20m)|
|Transom / Hull spacing||3-5' (1-1.5m)|
|Maximum hull thickness||4" (100mm)|
|Installation depth (to top of fixture)||10-12in (250-300mm)|
|Light output equivalent to||250W HID Metal Halides|
|Fixture Lumens* (total light output from a finished fixture)||7000|
|Typical LED life expectancy||40,000+ Hours|
|Minimum-Maximum operating voltage DC||9-32V DC|
|Minimum-Maximum operating voltage AC (AC/optional)||90-270V AC|
|Current / Amp draw (DC)||12V DC 5.8A 24V DC 2.9A|
|Current / Amp draw (AC/optional)||110V AC 50/60HZ 0.76A 240V AC 50/60HZ 0.35A|
|Approx. light penetration (avg. water quality)||59' (18m)|
|Approx. Light penetration (perfect water quality)||up to 140' (45+m)|
|Driver size (L x W x H)||TBA|
|Diameter of fixture||619/64" (160mm)|
