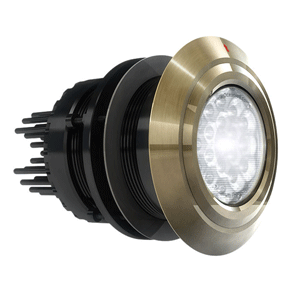

OceanLED -001-500748-3010 XFM HD Gen 2 Ultra White

OceanLED -001-500748-3010 XFM HD Gen 2 Ultra White

Pre order

Regular price $ 5,919.33 USD
Regular price Sale price $ 5,919.33 USD
Sale Pre Order
Shipping calculated at checkout.

OCEAN LED 001-500748 OCEANLED 3010 XFM HD GEN2 ULTRA WHITE



XFM models, or Xchangeable Flush Mounts, are just that - they're exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.

At 10,000-fixture lumen brightness the 3010XFM HD Gen2 model is 43% brighter than its predecessor by exploiting the next generation of High Definition LEDs from Cree.

Suitable for all hull types over 65' (20m) using 4 or more lights with spacing of 3-6' (1-1.8m) - for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plug-and-play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium™ glass lens. Three super bright LED color options.

Mounting Recommendations 3010XFM HD
Boat size over 65' (20m)
Transom / Hull spacing 3-6' (1-1.8m)
Transom quantity 4+
Hull quantity 4+/side
Maximum hull thickness 4" (100mm)
Installation depth (to top of fixture) 10-12" (250-300mm)
Technical
Light output equivalent to 2 x 100W HID Metal Halides
Fixture Lumens* (total light output from a finished fixture) 10000
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32V DC
Minimum-Maximum operating voltage AC (AC/optional) 90-270V AC
Current / Amp draw (DC) 12V DC 10A24V DC 5A
