Actisense - EMU-1-BAS - NMEA 2000 Engine Gateway

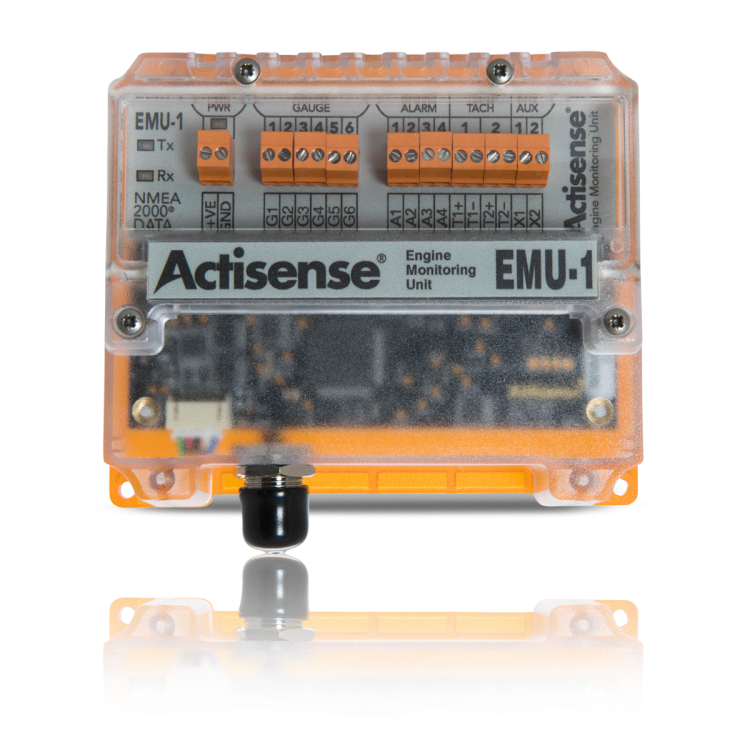

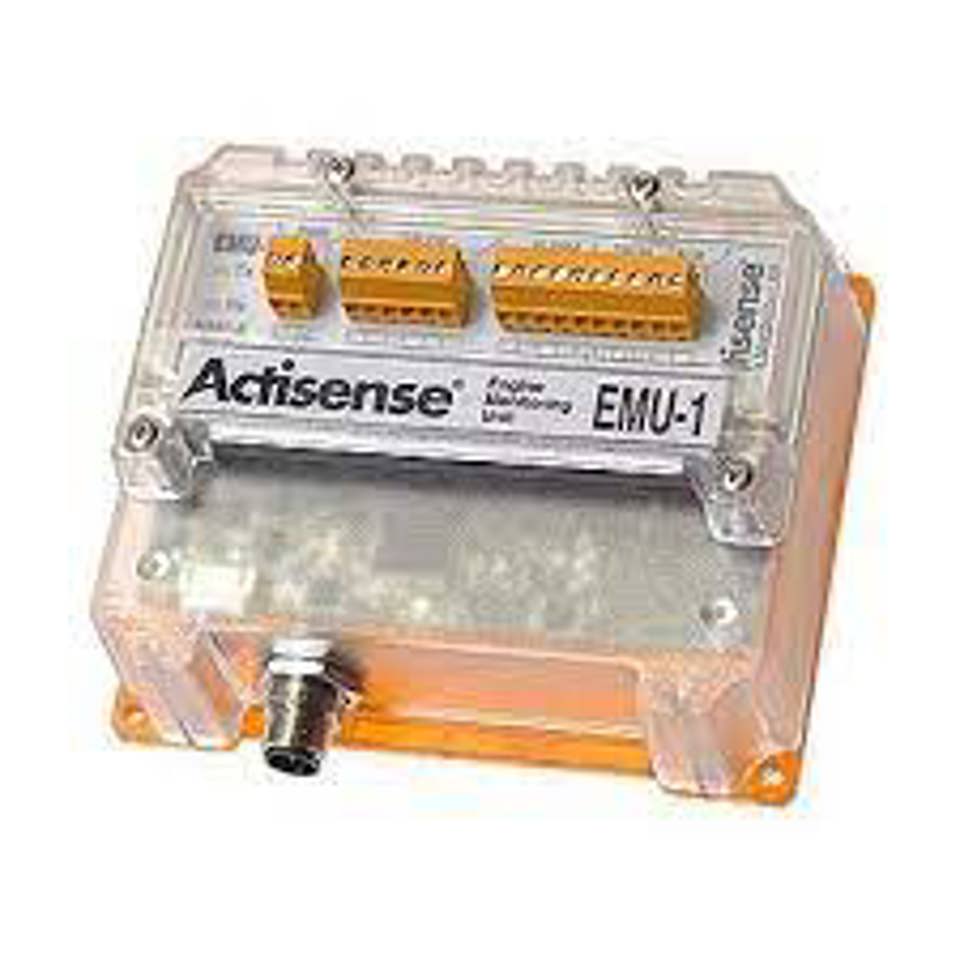

Engine Monitoring Unit, Analogue to NMEA 2000, standard configuration.
The Actisense EMU-1 is a specialised analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data.
Find out if the EMU-1 works with your engine
New features and updates will be added to the Actisense Toolkit (the EMU-1 Configuration Tool) on a regular basis. Please check you are using the latest version of Toolkit and EMU-1 firmware by going to the Downloads page. All EMU-1 firmware updates are part of the Toolkit software.
The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.
The EMU-1 has a PC based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models. An Actisense PC to NMEA 2000 Gateway (NGT-1) is required to configure the EMU-1.
It is recommended that an NGT-1 is available for every EMU-1 installation. The NGT-1 can be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGT-1 page for product details.
The EMU-1 is available with the SeaTalkNG to NMEA 2000 adaptor Cable - STNG-A06045
The SeaTalk NG to NMEA 2000® adaptor cable (STNG-A06045) is not available as a standalone product and must be bought as part of a bundle.
An optional DIN rail mounting kit is also available. The kit is suitable for use with a top hat rail, type EN 50 022 or a G section rail, type EN 50 035. Please order the DIN rail kit using part number: DIN-KIT-1.
New features and updates will be added to the Actisense Toolkit (the EMU-1 Configuration Tool) on a regular basis. Please check you are using the latest version of Toolkit and EMU-1 firmware by going to the Downloads page. All EMU-1 firmware updates are part of the Toolkit software.
The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.
The EMU-1 has a PC based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models. An Actisense PC to NMEA 2000 Gateway (NGT-1) is required to configure the EMU-1.
It is recommended that an NGT-1 is available for every EMU-1 installation. The NGT-1 can be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGT-1 page for product details.
The EMU-1 is available with the SeaTalkNG to NMEA 2000 adaptor Cable - STNG-A06045
The SeaTalk NG to NMEA 2000® adaptor cable (STNG-A06045) is not available as a standalone product and must be bought as part of a bundle.
An optional DIN rail mounting kit is also available. The kit is suitable for use with a top hat rail, type EN 50 022 or a G section rail, type EN 50 035. Please order the DIN rail kit using part number: DIN-KIT-1.
Geek Mode
- Enables analogue gauge/sender information to be converted to NMEA 2000® messages
- Supports up to two engines with a single EMU-1
- Six gauge/parameter inputs
- Four alarm inputs
- Two Tach inputs
- Supports 12V and 24V systems
- Bulkhead mount, with optional DIN rail mount kit
- Total engine hours are logged by the monitoring of engine Tach (RPM) input
- PC based configuration tool for customised installation
- Connect signals from fluid level gauges to NMEA 2000®
Technical Specification
| Power Supply | |
| Supply Voltage | 9 to 35V DC |
| Supply Current | Typically < 25mA @ 12V DC |
| Supply Protection | Continuous reverse polarity protection and load dump protection (meets SAE J1113) |
| Supply Connector | Pluggable 2-way screw terminal, 3.5mm pitch |
| Supply Voltage (NMEA 2000 Port) | 9 to 29V DC |
| Supply Current (NMEA 2000 Port) | < 20mA @ 12V DC from NMEA 2000 bus |
| Load Equivalent Number (LEN) | 1 |
| Supply Protection (NMEA 2000 Port) | Continuous reverse polarity protection and overvoltage protection to 40V |
| NMEA 2000 Port - In/Out | |
| Compatibility | Fully NMEA 2000 certified |
| Galvanic Isolation | 2500V input to ground, 1500V output to ground using ISO-Drive |
| Speed / Baud Rate | 250kbps |
| NMEA 2000 Connector | M12 male (A coded) connector |
| Gauge Inputs | |
| Voltage Range | 0 to 35V DC |
| Input Impedance | > 50kΩ |
| Sender Feed | 0, 4 or 18mA |
| Accuracy | <= 2% |
| Input Connector | Pluggable 6-way screw terminal, 3.5mm pitch |
| Input Protection | Overvoltage protection to ±40V |
| Alarm Inputs | |
| Voltage Range | 0 to 37V DC |
| Input Impedance | > 50kΩ |
| Threshold Voltage | Configurable, default is 5V |
| Alarm Polarity | Configurable, default is alarm on low input |
| Accuracy | <= 2% |
| Input Connector | Pluggable 4-way screw terminal, 3.5mm pitch |
| Input Protection | Overvoltage protection to ±40V |
| Tacho Inputs | |
| Voltage Range | ±3 to ±60V |
| Input Impedance | > 100kΩ to ground |
| Input Pulse Range | 4 to 50,000Hz |
| Accuracy | <= 1% |
| Sender Compatibility | Ignition coil, alternator ("W", "R" or "AC") terminal, hall effect, VR or inductive sender |
| Threshold | Automatically adjusts to signal level |
| Input Connector | Pluggable 4-way screw terminal, 3.5mm pitch |
| Input Protection | Can withstand an ignition pulse to ±500V |
| Engine Log | |
| Engine Hours | 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memory |
| Mechanical | |
| Housing Material | Polycarbonate |
| Protective Lid Material | Polycarbonate |
| Sealing Materials | Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent |
| Dimensions | 127mm (L) x 112mm (W) x 48mm (H) |
| Weight | 250g |
| Mounting | 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request |
| Approvals and Certifications | |
| Fully NMEA 2000 Certified | |
| EMC | EN 60945 (sections 9 & 10) |
| Environmental Protection | IP66 (PCB housing) |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| Recommended Humidity | 0 - 93% RH |
| Guarantee | 3 years |
