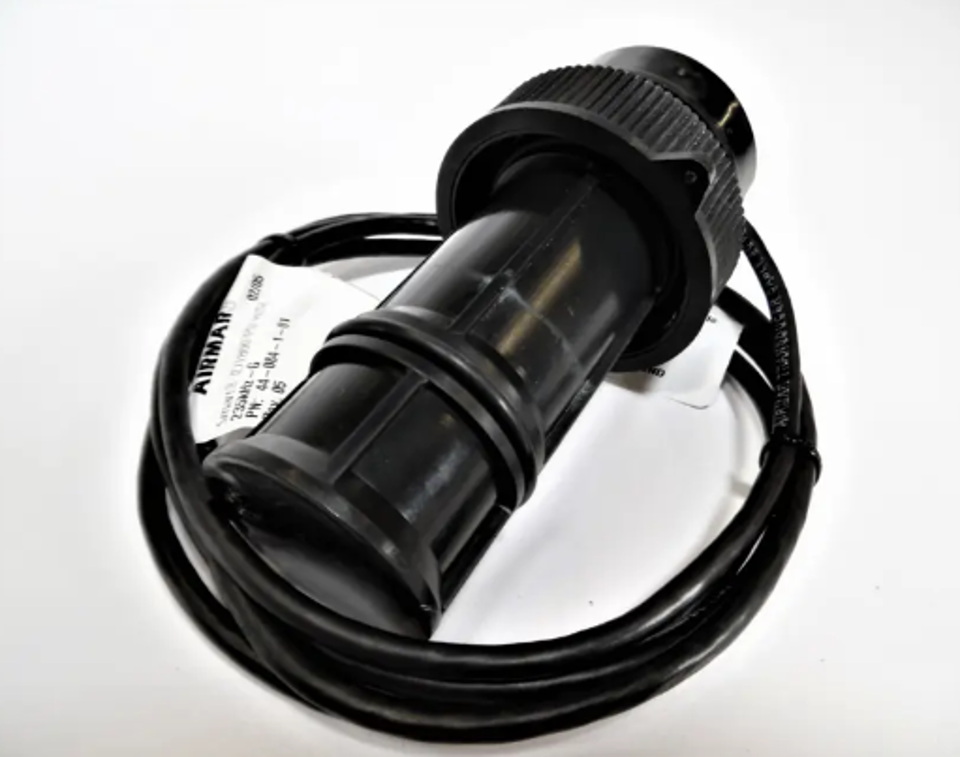

Airmar 44-084-1-01 DT800 NMEA 0183 Transducer

Airmar DT800 0° Tilt Thru-Hull NMEA 0183 Smart Transducer

The Airmar 44-084-1-01 (Model: DT800 / P217) is a low-profile thru-hull Smart Sensor designed to output digital depth and fast-response water temperature data directly over an NMEA 0183 serial interface. Engineered with internal digital signal processing (DSP), the sensor processes echo signals directly inside the housing and outputs standard NMEA sentences, eliminating the need for an external sonar module or echosounder black box.

Featuring a 0° deadrise tilt angle, the DT800 is intended for flat-bottom hulls or installation into fairing blocks up to 7° of hull deadrise. Its flush, low-profile plastic housing minimizes drag and turbulence while operating at 235 kHz to eliminate cross-talk interference with standard 50/200 kHz fishfinders. The self-closing valve insert allows quick servicing and cleaning of the ceramic element from inside the hull.

Key Features

• Integrated Smart Sensor DSP: Converts acoustic echoes directly into digital NMEA 0183 data strings (4800 baud) for direct input to chartplotters, instrument displays, and autopilot systems.

• Non-Interfering 235 kHz Frequency: Prevents mutual acoustic interference with separate 50/200 kHz fishfinder transducers installed on the same vessel.

• Low-Profile Plastic Housing: Extends only 6.3 mm (0.25") outside the hull, dramatically reducing drag and boundary-layer turbulence.

• Integrated Water Temperature Sensor: Delivers fast-response surface water temperature measurements directly to the NMEA data bus.

• Self-Closing Water Valve: Retractable insert design incorporates a rubber flap valve to restrict water ingress into the bilges during insert extraction and cleaning.
