Airmar 44-215-1-01 DX900+ Speed & Temp Sensor

Airmar 44-215-1-01 DX900+ Electromagnetic Speed & Temp Insert Kit

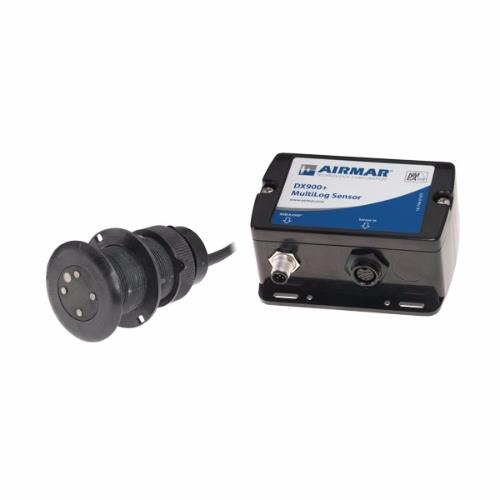

The Airmar 44-215-1-01 (Model: DX900+) is an advanced dual-axis electromagnetic speed through water (STW) and water temperature insert sensor kit. Designed without moving mechanical parts like traditional paddlewheels, the DX900+ uses electromagnetic fields to measure forward, leeway, and reverse vessel speed directly against pin-point magnetic sensors on its flush face plate.

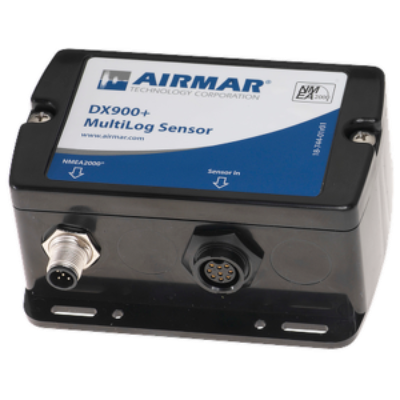

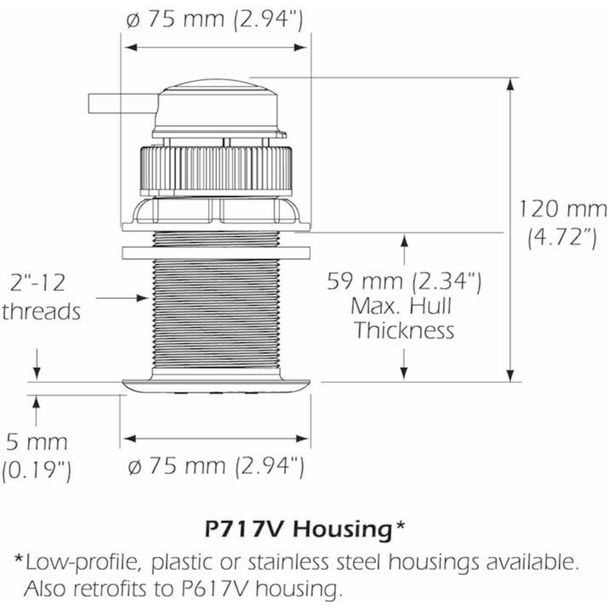

Equipped with wireless Bluetooth Low Energy (BLE) and wired NMEA 0183 data interfaces, the sensor broadcasts real-time dual-axis speed vectors, water temperature, and 3D attitude (pitch and roll) metrics simultaneously to mobile devices (via Airmar's CAST app) and wired marine instrument displays. The kit comes complete with a low-profile thru-hull housing and blanking plug for maintenance.

Key Features

• Paddlewheel-Free Electromagnetic Tech: No moving parts to foul with barnacles, weeds, or debris, eliminating mechanical failure modes.

• Dual-Axis Measurement: Measures both forward/aft speed and transverse leeway speed simultaneously to optimize sailing trim and tactical navigation.

• Wireless Bluetooth & CAST App: Connects directly to smart devices for real-time data monitoring, field diagnostics, and multi-point speed calibration routines.

• 3D Attitude Sensor: Integrated 3-axis accelerometer and gyro measure pitch, roll, and dynamic motion to refine speed calculations.

Specifications
