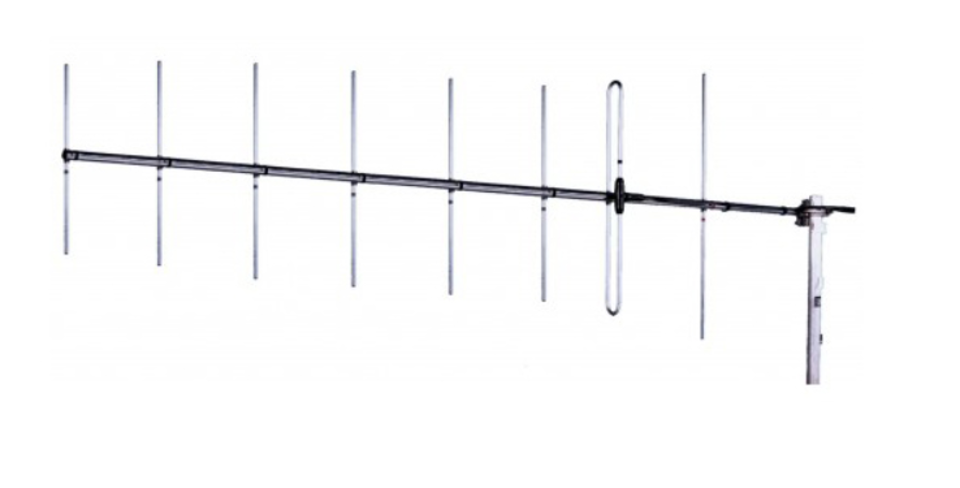

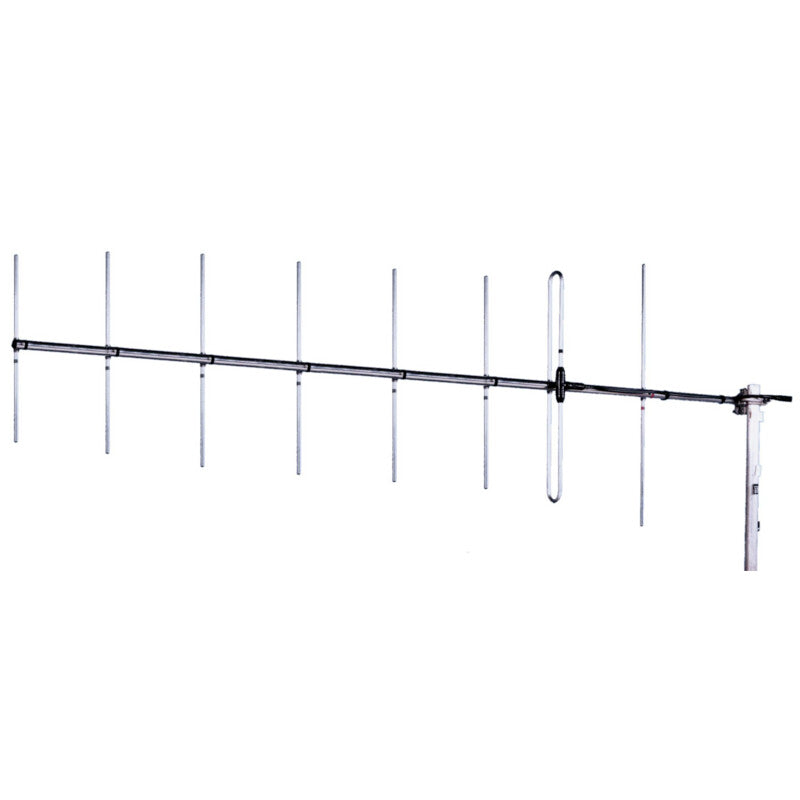

Amphenol Procom 7043150 8-Element VHF Yagi Antenna (145–165 MHz)
The Amphenol Procom 7043150 (formerly Jaybeam brand) is a high-gain, heavy-duty 8-element VHF Yagi directional antenna designed for Professional Mobile Radio (PMR), Trunked Radio, and VHF broadcast networks operating across the 145–165 MHz frequency band. Delivering a high gain of 10 dBd (12.2 dBi) with a front-to-back ratio exceeding 20 dB, it is ideal for long-range point-to-point links and directional coverage.
Built for demanding environmental conditions, the antenna features heavy-duty aluminum construction (32 mm boom diameter) with fully DC-grounded metal parts for lightning/antistatic protection. It includes a 3 m integrated RG213 cable terminating in an N-female connector and supports both vertical and horizontal linear polarization.
Key Features
-
High Directional Gain: 10 dBd (12.2 dBi) gain provides high signal margin for long-distance VHF links.
-
Selectable Linear Polarization: Mountable for either Vertical or Horizontal polarization setups.
-
DC-Grounded Antistatic Protection: All metal components are DC-grounded to minimize static noise and protect connected radio equipment.
-
Rugged Marine/Commercial Construction: Features a 32 mm aluminum boom, fully potted balun enclosure, and withstands winds up to 160 km/h.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Amphenol Procom (Legacy Jaybeam) |
| Part Code / SKU | 7043150 |
| Antenna Type | 8-Element Yagi Array |
| Frequency Range | 145-165 MHz |
| Gain | 10 dBd (12.2 dBi) |
| Maximum Input Power | 150 W |
| Impedance | 50 Ω |
| VSWR | < 1.5:1 |
| Front-to-Back Ratio | > 20 dB |
| Polarization | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth (E-Plane) | 45° |
| 3 dB Beamwidth (H-Plane) | 54° |
| Connector / Cable | 3 m (Approx. 9.8 ft) RG213 Cable with N-Female Connector |
| Boom Diameter / Material | 32 mm Aluminum Boom |
| Elements Diameter | 12.7 mm Solid Aluminum |
| Overall Length | Approx. 3410 mm (134.25'' / 3.41 m) |
| Weight | Approx. 6 kg (13.23 lbs) |
| Wind Load / Rating | 205 N @ 160 km/h |
| Mounting Hardware | Requires 3202078/68 + 3201079/00 clamp kit (Sold Separately) |
| Compliance | HCM Code: HCM027EB10 / 023EB10 |
