Ancor 156410 14/3 AWG Round Bilge Pump Cable 100ft

Ancor Marine Grade 14/3 AWG Round Bilge Pump Cable (100ft)

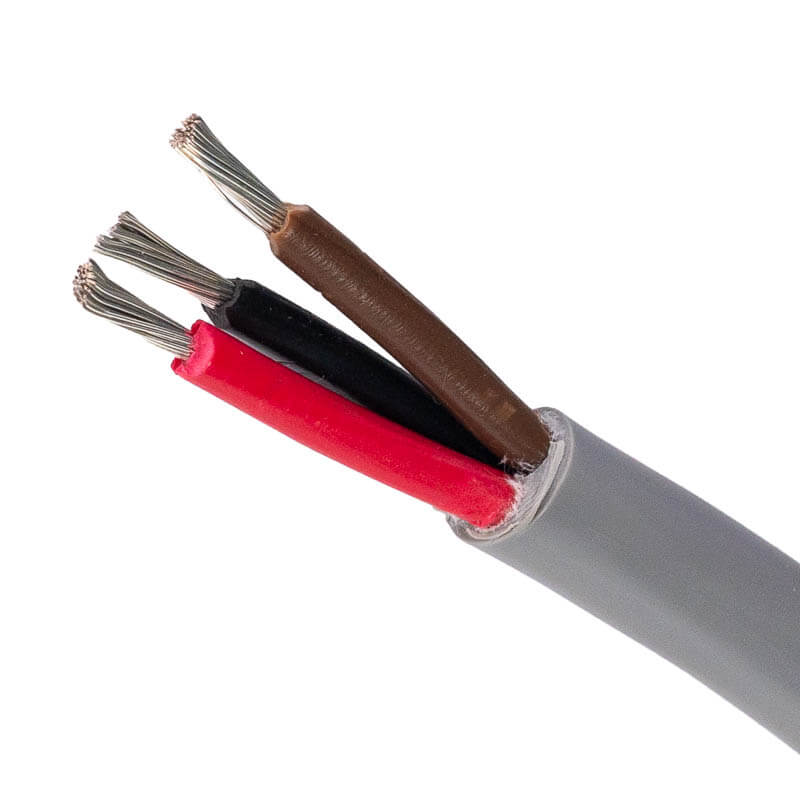

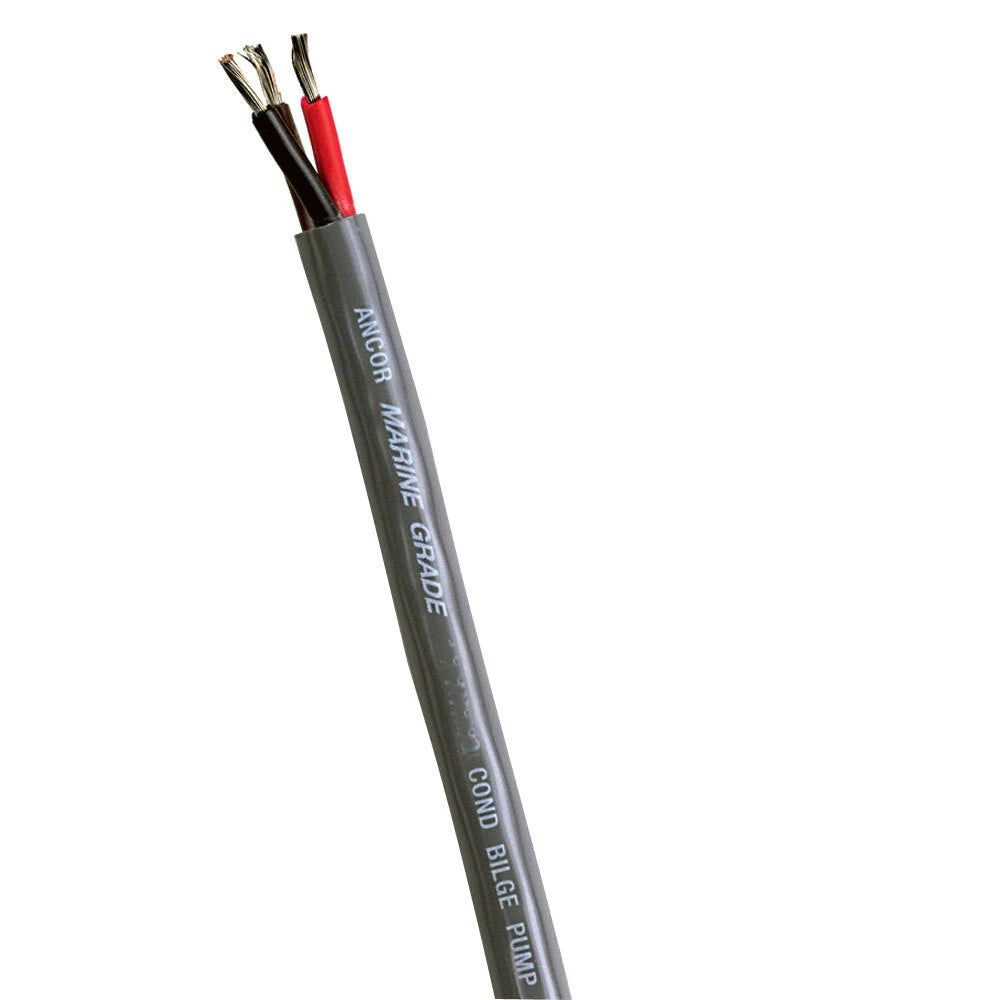

The Ancor 156410 is a premium, 14/3 AWG (3 * 2.0 mm²) round heavy-duty marine bilge pump cable supplied on a 100-ft (30.5-m) spool. Engineered specifically for continuous submersion and exposed bilge conditions, it features three color-coded conductors (Black, Brown, and Red) designed to simplify wiring setups for automatic bilge pump systems with integrated or standalone float switches.

Constructed from fine-stranded, tinned copper (Type III stranding) for maximum flexibility and fatigue resistance, the cable incorporates a pressure-extruded outer PVC jacket. This round jacket design ensures a water-tight seal when passing through marine liquid-tight deck cable glands, bulkhead seals, or bilge strain relief fittings, protecting the inner conductors against bilge acids, engine oils, gasoline, UV exposure, and continuous saltwater immersion.

Key Features

• Type III Tinned Copper Stranding: High-strand-count tinned copper offers maximum fatigue resistance under severe hull vibration while preventing internal strand oxidation.

• Color-Coded Circuit Identification: Includes Brown (Manual/Pump Positive), Red (Automatic/Float Switch Positive), and Black (Common Ground Negative) conductors per ABYC standards.

• Pressure-Extruded Round Outer Jacket: Eliminates inner voids, allowing deck glands and liquid-tight strain reliefs to compress evenly for an IP67/IP68 waterproof seal.

• Extreme Chemical & Moisture Resistance: Designed to withstand continuous exposure to bilge water, engine oils, battery acid, diesel fuel, and UV radiation.

• High Thermal Tolerance: 105°C dry / 75°C wet rated premium vinyl insulation resists heat breakdown in cramped engine compartments.
