30/30 HV for H5000/Triton

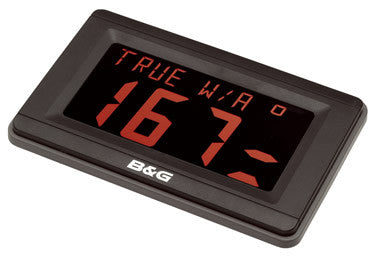

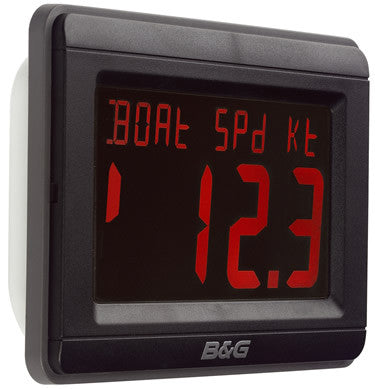

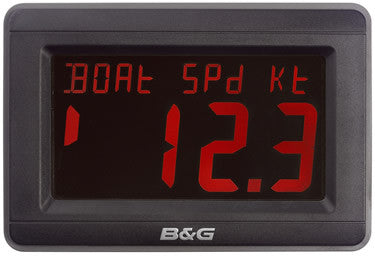

HVision bonded displays provide ultra clear instrument information with zero condensation. HV Displays store 14 configurable pages, so whether you want to see True Wind Angle, COG or SOG, getting the crucial information in the right place is simple. 20/20 HV Displays are ideal mast displays for yachts in the 30ft to 50ft range
- Bonded LCD
- Rapid Update
- Maximum clarity
- Lightweight
- 'White on Black' display
- Incredibly durable
- Ocean Proven
DISPLAY
Display Resolution |
Custom Segmented HVision (H x W) |
NETWORKING / CONNECTORS
TECHNICAL / ENVIRONMENTAL
Construction |
Moulded ABS w/ aluminium rear case |
Sealing |
IP67 |
Width |
249 mm \ 9.8 in |
Height |
156 mm \ 6.1 in |
Depth |
50 mm \ 2 in |
Weight |
0.9 kg \ 1.98 lbs |
Humidity |
Up to 95% relative humidity |
Operating Temperature |
-10°C to 55°C / 14°F to 131°F |
POWER
Power Supply |
12V vDC |
Power Consumption Lights Off |
25 mA |
Power Consumption Lights On |
50 mA |
OTHER
Compass Safe Distance |
200 mm \ 7.9 in |
Interfaces |
NMEA 2000 (Requires Triton Display) |
