B&G
B&G-000-11142-001-SonarHub Module, with power cable and Ethernet cable 4.5m (15ft)
B&G-000-11142-001-SonarHub Module, with power cable and Ethernet cable 4.5m (15ft)
Regular price
USD $898.50 USD
Regular price
Sale price
USD $898.50 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

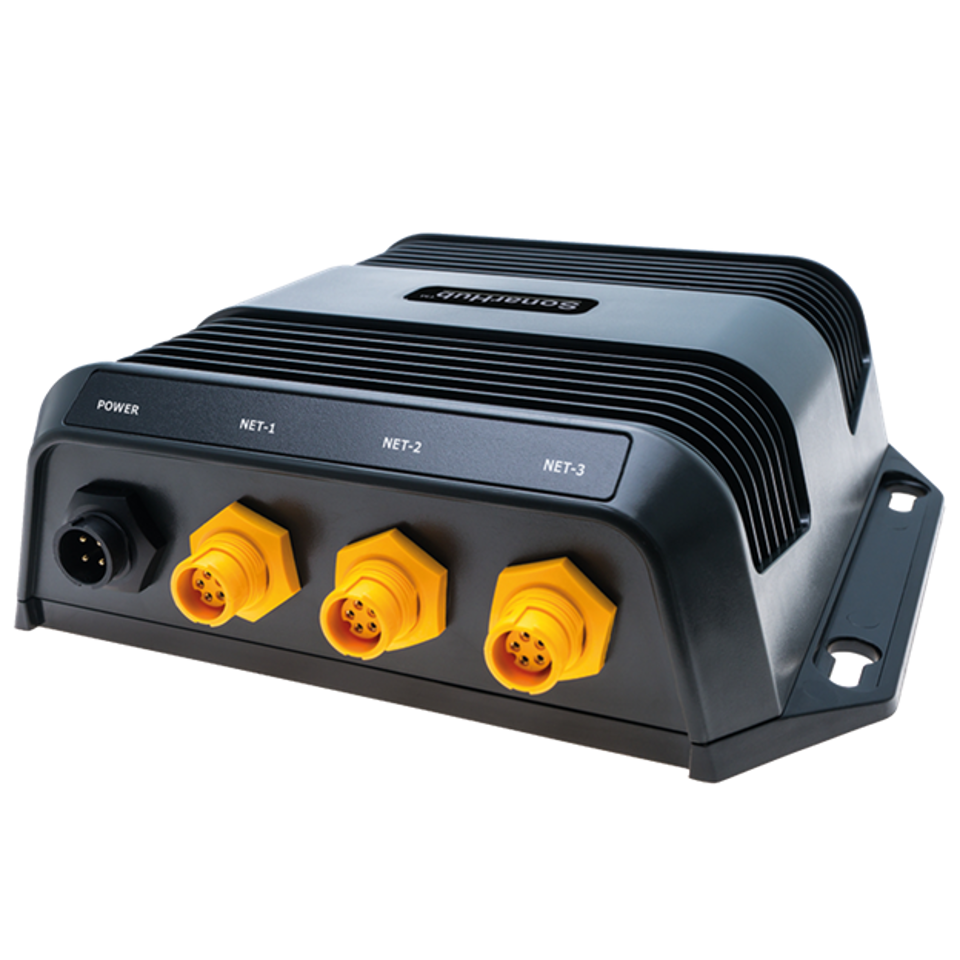

SonarHub™ Sounder Module
The all-new compact SonarHub™ module provides an all-in-one solution for adding ForwardScan™ to B&G Zeus2 multifunction displays. Compatible with the complete line of Zeus2 & Zeus2 Glass Bridge displays.
The innovative, plug and play SonarHub module features three built-in Ethernet ports for quick and convenient networking without the need for an extra Ethernet networking module.
Compatible transducers from B&G and AIRMAR are sold separately.
- Compact all-in-one sonar module delivers ForwardScan™ to B&G Zeus2 & Zeus2Glass Bridge units
- Plug-and-play compatibility providing StructureScan® HD and CHIRP sonar capabilities with B&G Zeus2 Series multifunction displays
- Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module
Sonar |
|
| Output Power | Max 500W RMS (StructureScan® HD), 250W RMS (CHIRP) |
| Sonar Frequencies | 455/800 kHz (StructureScan® HD), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band) |
| Max Side-Scanning Range | 300 feet per side |
| Transducer Type | Multiple selections Navico and AIRMAR® |
| Max Depth Per Optional Transducer Type |
StructureScan: Max 91 m / 300 ft @ 455/800 KHz CHIRP: 1067 m / 3,500 ft (transducer dependent) |
Technical/Environmental |
|
| Waterproof Standard/Rating | IPx7 |
| Product Width | 180 mm \ 7.1 in |
| Product Height | 57 mm \ 2.2 in |
| Product Weight | 0.9 kg \ 2 lbs |
| Operating Temperature |
-28° to 75° C (-20° to 167° F) |
| Power Supply (Supply Voltage) | 12 or 24 vDC (9-32 vDC min-max) |
Networking and Power Connectors |
|
| Ethernet | Three ports |
| Power | 4-pin power connector |
| Transducer Port 1 | Blue 7-pin connector for CHIRP and narrow-band transducers |
| Transducer Port 2 | Black 9-pin connector for use with StructureScan® HD |
Other |
|
| Warranty | Limited two-year warranty |
