B&G 000-11247-001 NSO evo2 Serial Cable

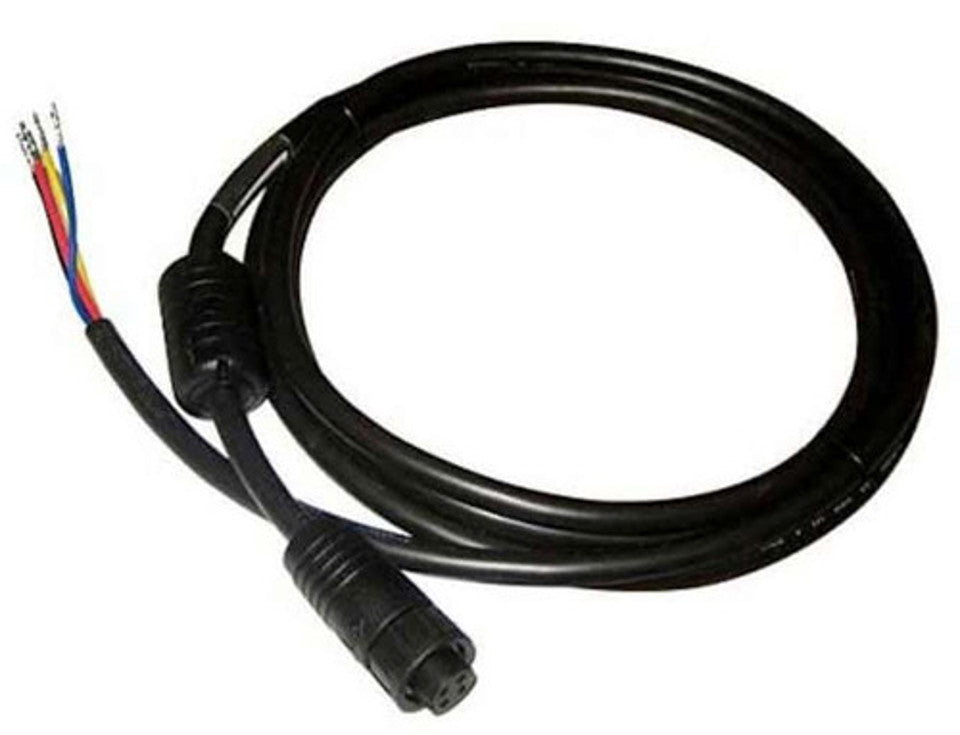

B&G / Simrad NSO evo2 NMEA 0183 & Touch Monitor Serial Cable – 2 m / 6.5 ft (000-11247-001)

The B&G / Simrad 000-11247-001 is a 2 m (6.5 ft) multi-conductor NMEA 0183 & Touch Monitor Serial Interface Cable designed for high-end glass bridge system architectures. Compatible with B&G Zeus2 / Zeus3S Glass Bridge processors and Simrad NSO evo2 / NSO evo3S Marine Processor Units (MPUs), it provides dual-function data connectivity between central processors and external marine monitors or legacy instrument networks.

Constructed with an 8-core shielded cable structure, the assembly splits internally into 4 cores dedicated to NMEA 0183 bi-directional differential data (RX+/RX- and TX+/TX-) and 4 cores assigned to RS422 touch monitor feedback control. Terminated with an 8-way LTW waterproof connector on the processor end and bare wire leads on the device end, it allows clean, custom wiring into marine terminal strips or junction boxes.

Key Features

• 8-Core Dual-Interface Architecture: Integrates 4 cores for NMEA 0183 serial data transmission and 4 cores for RS422 touch screen communications in a single cable jacket.

• Broad Processor Compatibility: Interfacing cable for B&G Zeus Glass Bridge series and Simrad NSO MPUs.

• Industrial LTW Connector: Features a waterproof 8-pin LTW twist-lock connector for secure attachment to the processor chassis.

• Tinned Bare Wire Leads: Color-coded stripped leads facilitate direct hookup to terminal blocks, NMEA 0183 talkers/listeners, and touch monitors.

• Full-Coverage Shielding: High-density internal shielding prevents data corruption from engine ignition and RF noise sources.
