B&G-000-11542-001-B&G H5000 Graphic Display

B&G-000-11542-001-B&G H5000 Graphic Display

Regular price USD $1,249.00 USD
Regular price Sale price USD $1,249.00 USD
Sale Sold out
Shipping calculated at checkout.

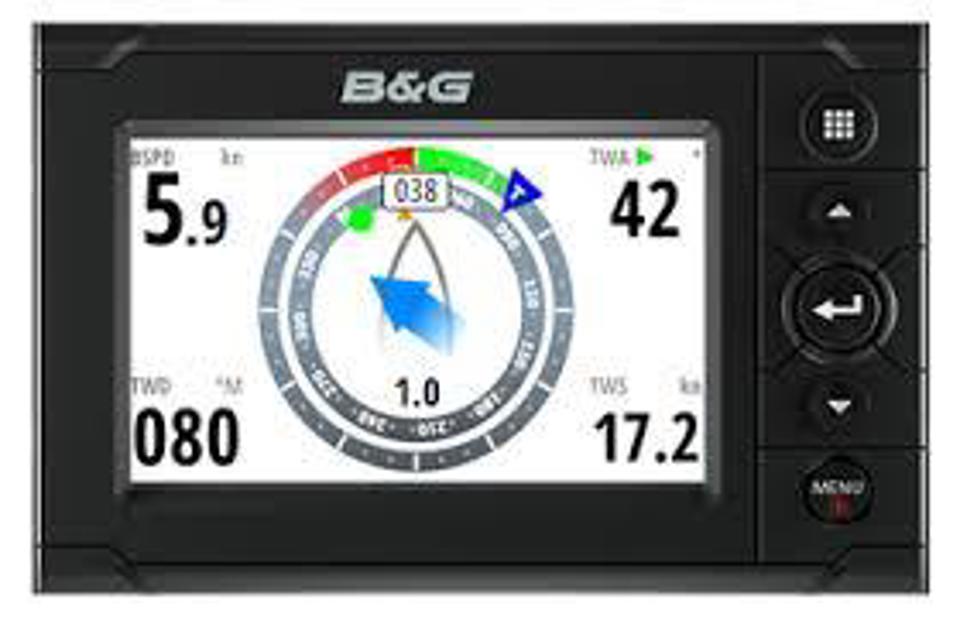

H5000 Graphic Display

B&G’s H5000 Graphic Display is a 5-inch, sunlight-viewable colour screen with a highly intuitive user interface. View your sailing data in sharp digital detail or graphical form with impressive 4Hz update rate.

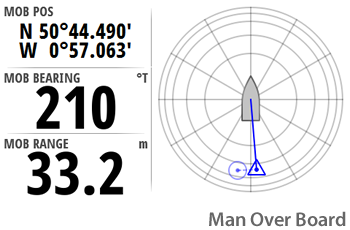

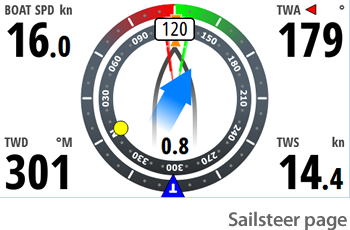

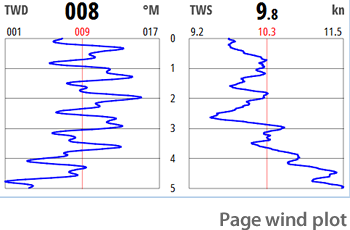

Use the Graphic Display as the main visual information hub of your H5000 system or as an alternative to a Race Display whether on deck, from a distance or in short-range applications at nav stations, in cabins and on pedestal mounts. Uniquely designed for sailing, this marine monitor is packed with dedicated features such as time plot, wind plot smart line, SailSteer and MOB laylines.

  • Unique Sailing Features
  • Bright, Colour Display
  • Optically bonded glass screen
  • Low power consumption
  • Tough design - built to last
  • Night palette options


Display Size 5” widescreen
Resolution 480 x 272
Backlighting LED
Operating Voltage 12V DC nominal (powered from network)
Warranty 2 Year (3 Years with +1 Advantage)



Display Resolution 480 x 272
Display Type Colour TFT LCD
Display Backlighting Enhanced LED
Display Size 5” Widescreen



Waterproof Standard/Rating IP67
Product Width 178mm
Product Depth 8mm (visible front), 32mm (rear including all cables)
Product Height 114mm



Power Supply (Supply Voltage) 12V DC nominal (powered from network)


Networking Connectors

Network 1x Micro-C connector on flying lead
