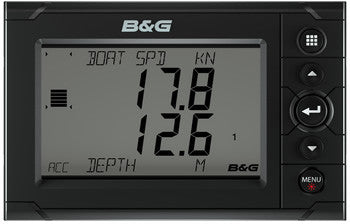

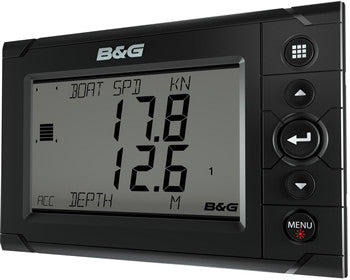

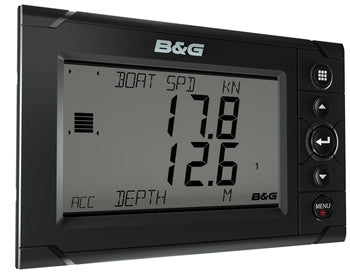

H5000 Race Display

The bonded glass H5000 Race Display features large, clear custom display to deliver essential race data at a glance. A unique bar graph adjacent to the numbers provides an immediate visual indicator of target data and trends.

With huge viewing angles and excellent visibility, this 5-inch LCD screen is sunlight readable and the backlight can be dimmed to almost zero for night sailing.

  • Clear, highly visible display in all conditions
  • Transflective, Custom display
  • Optically bonded glass screen
  • Ultra-low power consumption
  • Tough design - built to last
  • HV display control

Overview

Display Size 5” widescreen
Resolution N/A (Custom Segmented data display)
Backlighting LED
Operating Voltage 12V DC nominal (powered from network)
Warranty 2 Year (3 Years with +1 Advantage)



Display

Display Resolution N/A
Display Type Custom Segmented data display
Display Backlighting LED
Backlighting Levels 10 levels
Display Size 5”



Technical/Environmental

Waterproof Standard/Rating IP67
Product Width 178mm
Product Depth 8mm (visible front), 32mm (rear including all cables)
Product Height 114mm



Power

Power Supply (Supply Voltage) 12V DC nominal (powered from network)



Networking Connectors

Network 1x Micro-C connector on flying lead
