B&G-000-11545-001-H5000,CPU HYDRA

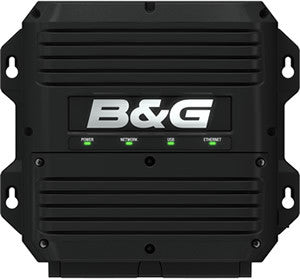

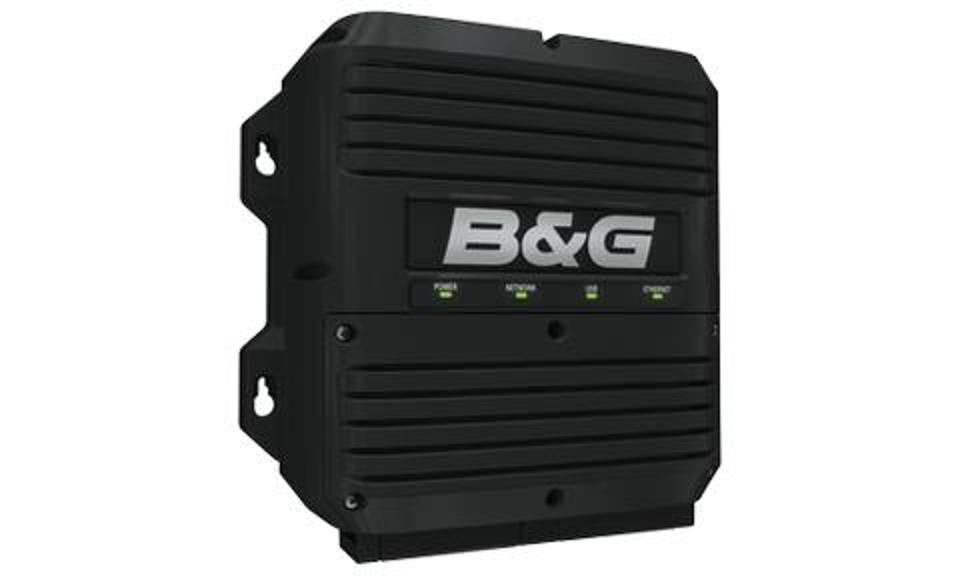

H5000 CPU, Hydra

The H5000 Hydra CPU is the brains behind the ultimate bluewater or cruiser/racer system. Its ultrafast dual ARM processors deliver data in an instant and the browser based setup allows straight-forward configuration and settings backup.

• Performance Wind Filter for accurate, stable data
• Startline tool
• SailSteer composite sailing display
• Browser based setup makes complex setup easy
• MOB input and set/drift calculations



  Overview

  Languages	English (web-browser)
  Operating Voltage	12V DC nominal
  Media Port	USB port for software and configuration updates
  Warranty	2 Year (3 Years with +1 Advantage)



  Technical/Environmental

  Waterproof Standard/Rating	IPx5
  Product Width	210 mm
  Product Depth	60 mm
  Product Height	194 mm



  Power

  Power Supply

  12V DC nominal



  Interfaces

  Interfaces	B&G Wind Sensor; 0-5V TTL Boat Speed input; 4x Analog inputs; MOB input; Alarm output.
  Network	1x Network port
  NMEA	2x bi-directional NMEA 0183 ports
  Ethernet	RJ45 Ethernet port (web-browser access and data streaming)



  Other

  Languages

  English only (web-browser)
