B&G-000-11546-001-H5000, CPU Hercules
B&G-000-11546-001-H5000, CPU Hercules

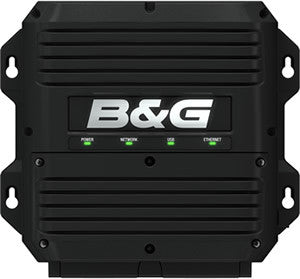

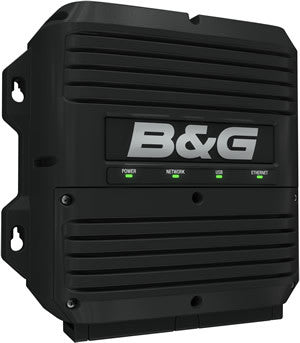

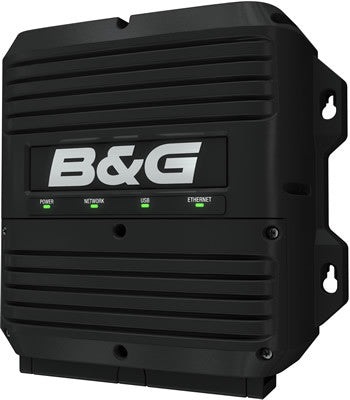

H5000 CPU Hercules
The H5000 CPU with Hercules software is geared for success on the race course. Hercules builds on the Hydra level and adds race focused features including Polar Tables for performance targets, 3D Motion correction support for the ultimate in wind data accuracy.
On top of the benefits of provided by Hydra, Hercules adds a whole tier of race functionality with the advantages of more accurate data and more race specific features, alongside web-browser integration for ease of set-up. By adding optional sensors, you can benefit from 3D Motion wind correction, offsetting the unavoidable discrepancy of induced wind errors caused by boat motion, for more accurate results. An integrated Polar table provides target boat speed, target wind angles and performance monitoring for a real racing advantage.
Key Features:
H5000 CPU Hydra, plus:
- 3D Motion correction support for ultimate Wind data accuracy
- Polar data for Performance Targets
- Enhanced Startline
- HV Display context switching
- MOB input and set/drift calculations
Languages | English (web-browser) |
Operating Voltage | 12V DC nominal |
Media Port | USB port for software and configuration updates |
Warranty | 2 Year (3 Years with +1 Advantage) |
Technical/Environmental
Waterproof Standard/Rating | IPx5 |
Product Width | 210 mm |
Product Depth | 60 mm |
Product Height | 194 mm |
Power
Power Supply | 12V DC nominal |
Interfaces
Interfaces | B&G Wind Sensor; 0-5V TTL Boat Speed input; 4x Analog inputs; MOB input; Alarm output. |
Network | 1x Network port |
NMEA | 2x bi-directional NMEA 0183 ports |
Ethernet | RJ45 Ethernet port (web-browser access and data streaming) |
Other
Languages | English only (web-browser) |
