B&G

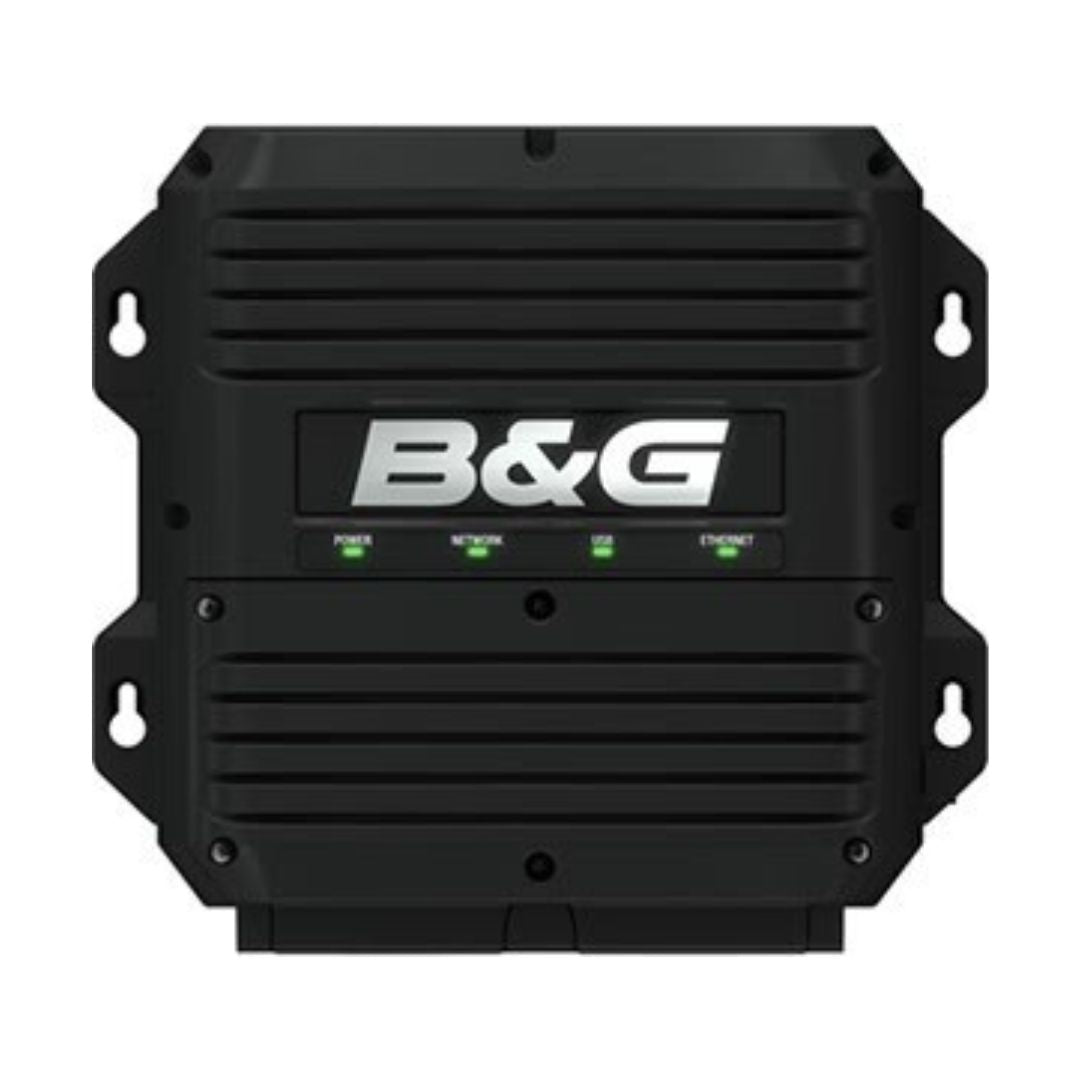

B&G - 000-11547-001 - H5000 CPU Performance
B&G - 000-11547-001 - H5000 CPU Performance
Pre order
Regular price
$ 6,111.36 USD
Regular price
$ 5,299.00 USD
Sale price
$ 6,111.36 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The powerful H5000 CPU with Performance software is designed for larger racing yachts and Superyachts. It offers the ability to run and monitor complex sailing systems with enhanced sensor options and up to 16 user defined functions.
Key Features:
H5000 CPU Hercules , plus:
- Dual Wind support
- GoFree(TM) protocol for 3rd party development
- H-Link communications protocol
- User defined functions
- MOB input and set/drift calculations
Overview
| Languages | English (web-browser) |
| Operating Voltage | 12V DC nominal |
| Media Port | USB port for software and configuration updates |
| Warranty | 2 Year (3 Years with +1 Advantage) |
Technical/Environmental
| Waterproof Standard/Rating | IPx5 |
| Product Width | 210 mm |
| Product Depth | 60 mm |
| Product Height | 194 mm |
Power
| Power Supply | 12V DC nominal |
Interfaces
| Interfaces | B&G Wind Sensor; 0-5V TTL Boat Speed input; 4x Analog inputs; MOB input; Alarm output. |
| Network | 1x Network port |
| NMEA | 2x bi-directional NMEA 0183 ports |
| Ethernet | RJ45 Ethernet port (web-browser access and data streaming) |
Other
| Languages | English only (web-browser) |
