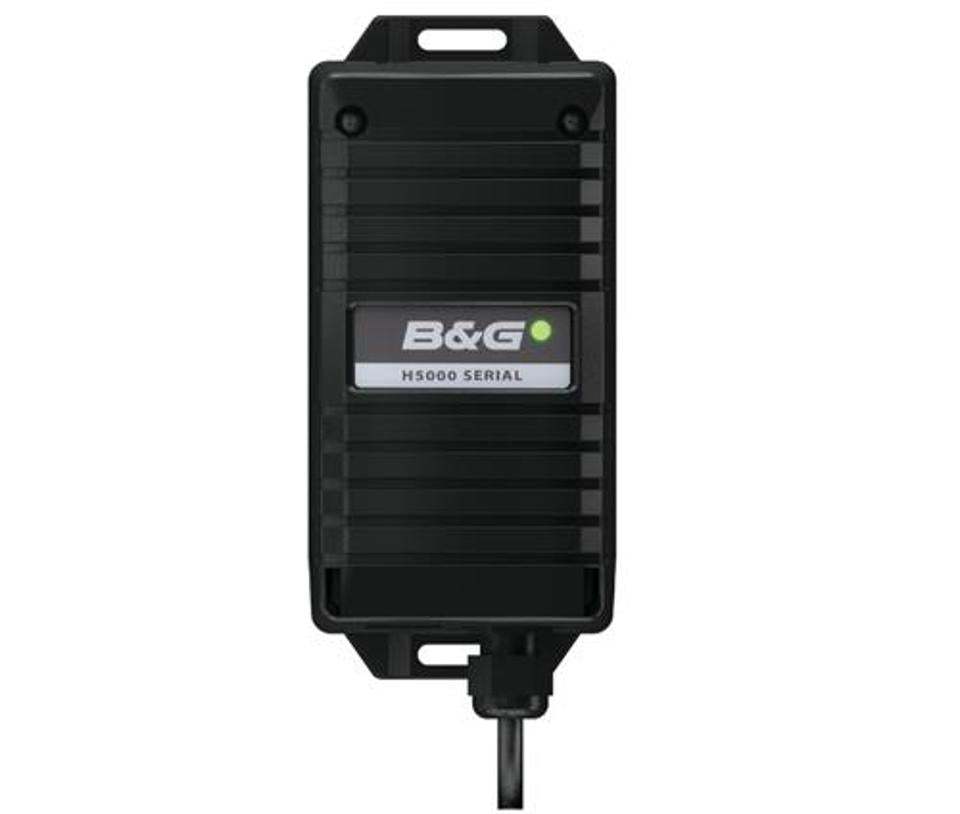

B&G-000-11726-001-H5000 SERIAL EXPANSION

B&G-000-11726-001-H5000 SERIAL EXPANSION

Regular price USD $1,199.00 USD
Regular price USD $1,199.00 USD Sale price USD $1,199.00 USD
Sale Sold out
Shipping calculated at checkout.

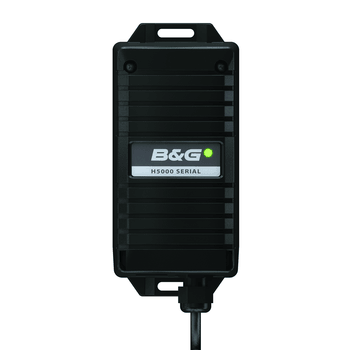

H5000 Serial Expansion

SKU: 000-11726-001

Allows expansion of an H5000 system. Provides additional serial interfacing options. Typically used for interfacing B&G HGSC heading sensor, GPS sensors, 3rd party heading sensors and other NMEA 0183 devices.

Product details

Allows expansion of an H5000 system to enable additional serial interfacing options. Typically used for interfacing HGSC compass, GPS units, Gyro Compasses and other NMEA 0183 devices. The H5000 CPU, calculating precise data up to 50 times faster than its predecessor, provides Hydra, Hercules and Performance level software options tailored for all users from serious cruisers to professional racers. This powerful 5-inch, sunlight viewable, colour display with a straightforward user interface is packed with unique sailing features including SailSteer and Start Line. From clever sailing algorithms, including B&G’s unique boat motion corrections, to dedicated start line features, the H5000 won’t be beaten.

Key Features

  • 2x bi-directional Serial ports
  • Configurable NMEA 0183 input/output sentences
  • Configurable baud rate and data update rates
  • Support for HGSC Compass
  • Configuration via H5000 CPU web browser
  • Industry standard compatible CAN network





  • NMEA 2000 Connectivity1 x NMEA2000 Micro-C port, 1 LEN


  • Approvals ComplianceIEC/EN 60945


  • Power Consumption typical0.6W
  • Recommended Fuse Rating5A
  • Supply Voltage12V DC (10-16V DC)


  • Operating Temperature Range-10 to +55ºC (+14 to 131ºF)
  • WaterproofratingIP6


  • Dimensions W x H x D61 x 131 x 45mm (2.4 x 5.2 x 1.8")
  • Weight0.17 kg (0.37 lbs)


  • Interfacevia Webserver on CPU
  • Warranty Period2 Years
