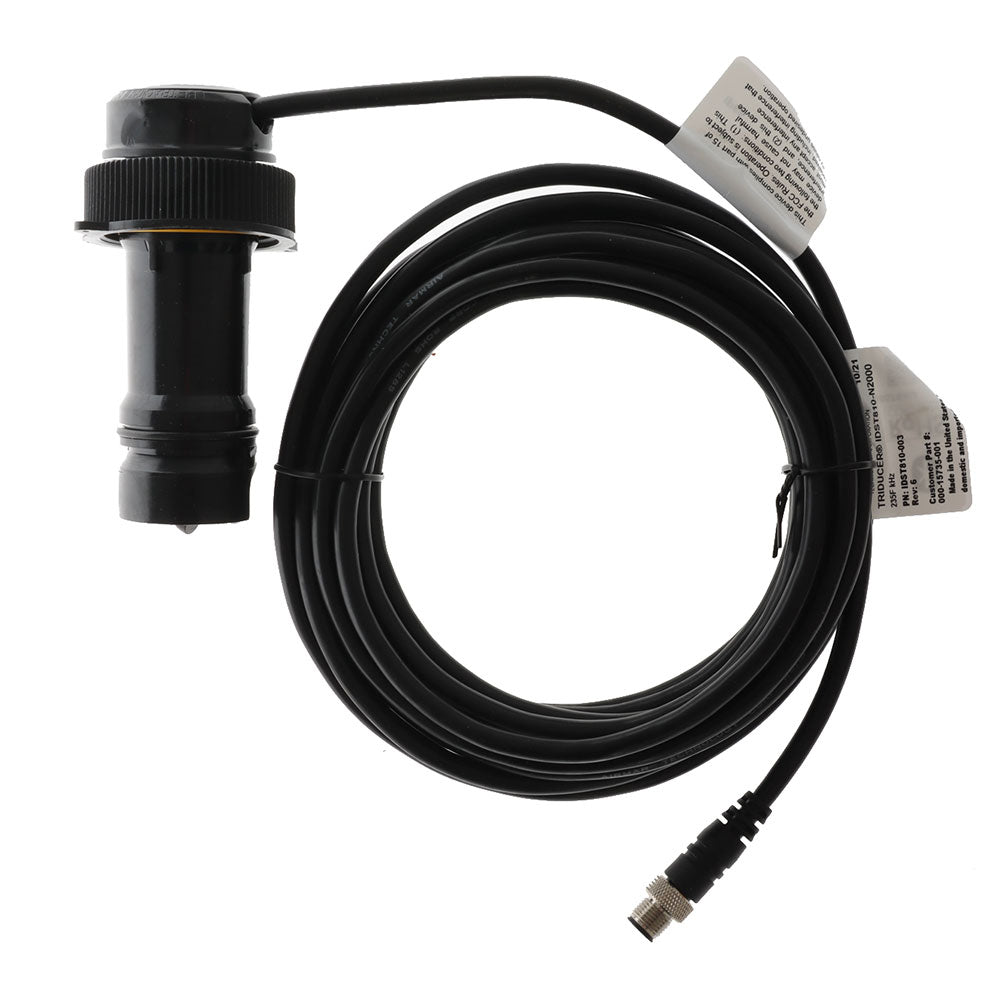

B&G 22098586 ST800 Speed/Temperature Sensor

B&G / Simrad ST800 Passive Speed & Temperature Sensor (22098586)

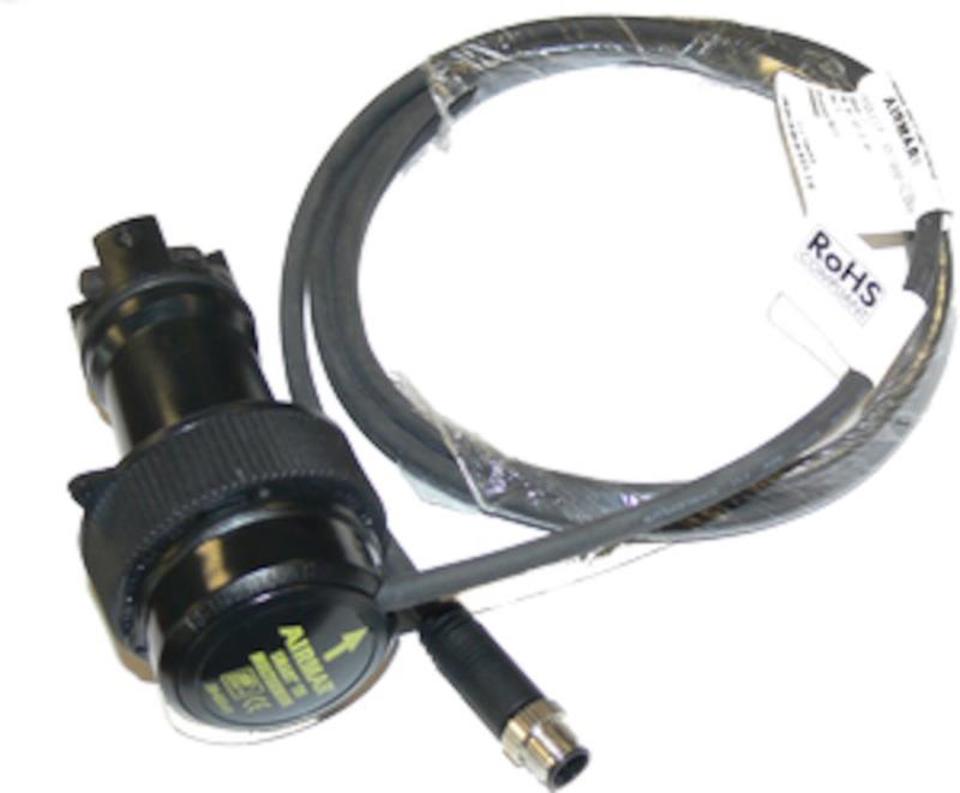

The B&G / Simrad 22098586 is a low-profile ST800 Passive Speed-Through-Water (STW) and Water Temperature Thru-Hull Sensor housed in a high-impact plastic fitting. Designed specifically as an add-on expansion sensor for the D800 / DT800 depth transducer series (such as part number 22098560), this sensor allows vessel owners to add paddlewheel speed and fast-response water temperature tracking to an existing depth-only installation.

Equipped with a 1 m (3.3 ft) pigtail cable harness, the ST800 connects directly into the auxiliary input interface of the depth transducer or instrument junction module, combining depth, speed, and temperature data into a single stream for B&G Triton, IS20, and Simrad instrument displays. Its retractable paddlewheel design features a self-closing water valve inside the plastic housing, allowing for safe in-water cleaning and paddlewheel maintenance.

Key Features

• Direct D800 / DT800 Integration: Plugs into the auxiliary pigtail port of D800 depth transducers (e.g., 22098560) to convert a depth-only setup into a full DST system.

• Low-Profile Plastic Thru-Hull Housing: Durable plastic housing installs flush with the hull, minimizing hydrodynamic drag on fiberglass or aluminum hulls.

• Fast-Response Temperature & Speed: High-accuracy paddlewheel measures water speed while the fast-response thermistor provides real-time surface temperature tracking.

• Retractable Insert Design: Allows quick removal of the paddlewheel insert for weed clearing or seasonal storage via a self-closing flap valve.
