B&G

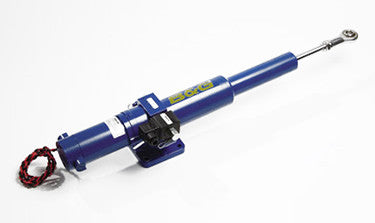

B&G-Hydraulic Ram T2 24V-Pilot Ram Type 2 24vdc
B&G-Hydraulic Ram T2 24V-Pilot Ram Type 2 24vdc
Pre order
Regular price
$ 2,230.00 USD
Regular price
Sale price
$ 2,230.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
T2-Pilot-Ram-RAM-T2-24V
Handheld autopilot remote control unit
General |
|
| Weight | 7.8 kg |
| Dimensions can be found in the Installation and Service Handbook - see the 'Support' tab on this page | |
Performance |
|
| Maximum thrust (intermittent) | 675 kg |
| Hard over time nominal RAM-T2 | 9 sec |
| Temperature rating minimum | -20ºc |
| Temperature rating maximum | +65ºc |
| Relief valve setting | 62 bar |
| Back-drive at 12 sec Hard-over | 7kg |
Electrical |
|
| Motor voltage nominal | 12 or 24v DC |
| Motor power | 100 watt |
| Max current 12v 25% duty | 22.5 A |
| Max current 24v 25% duty | 11.2 A |
| Rotation | Reversing |
| Protection | IP44 |
| Connection | 1m 2 Core Flying Lead |
| Ignition protection | BS EN 28846:1993 |
| Coil power continuous | 12 watt |
| Connection | DIN 43650 |
Recommended oil |
|
| Mineral based hydraulic | ISO VG10 |
Materials |
|
| Body | Aluminium BS 1490 |
| Piston rod | Chrome Plated Stainless Steel |
| Seals | Nitrile & PTFE |
| Body Protection | SP270 |
