B&G - RAM-T2-12V - Hydraulic Ram T2 12V
B&G - RAM-T2-12V - Hydraulic Ram T2 12V
Pre order
Regular price
$ 2,499.00 USD
Regular price
$ 2,230.00 USD
Sale price
$ 2,499.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

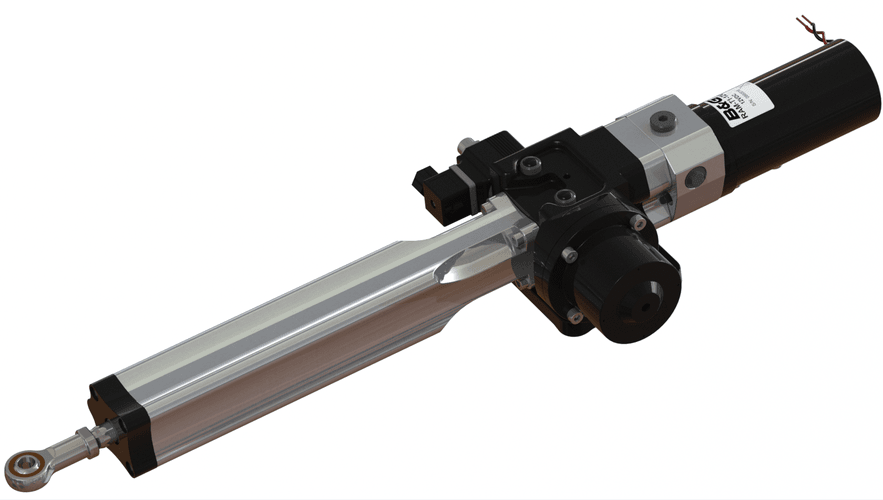

Hydraulic Ram T2 12V: High power, efficient drive units for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure. Fully Integrated hydraulic system, no external hoses, reservoirs etc.
Performance
| Maximum thrust (intermittent) | 700 kg |
| Hard over time nominal RAM-T2 | 9 sec |
| Temperature rating minimum | -20ºc |
| Temperature rating maximum | +65ºc |
| Relief valve setting | 62 bar |
| Back-drive at 12 sec Hard-over | 7kg |
Electrical
| Compatible computers | H5000 / NAC3 |
| Motor voltage nominal | 12v DC |
| Motor power | 100 watt |
| Max current 12v 25% duty | 22.5 A |
| Rotation | Reversing |
| Protection | IP44 |
| Connection | 1m 2 Core Flying Lead |
| Ignition protection | BS EN 28846:1993 |
| Coil power continuous | 12 watt |
| Recommended oil | Mineral based hydraulic ISO VG10 |
Materials
| Body | Aluminium BS 1490 |
| Piston rod | Chrome Plated Stainless Steel |
| Seals | Nitrile & PTFE |
| Body Protection | SP270 |
