B&G

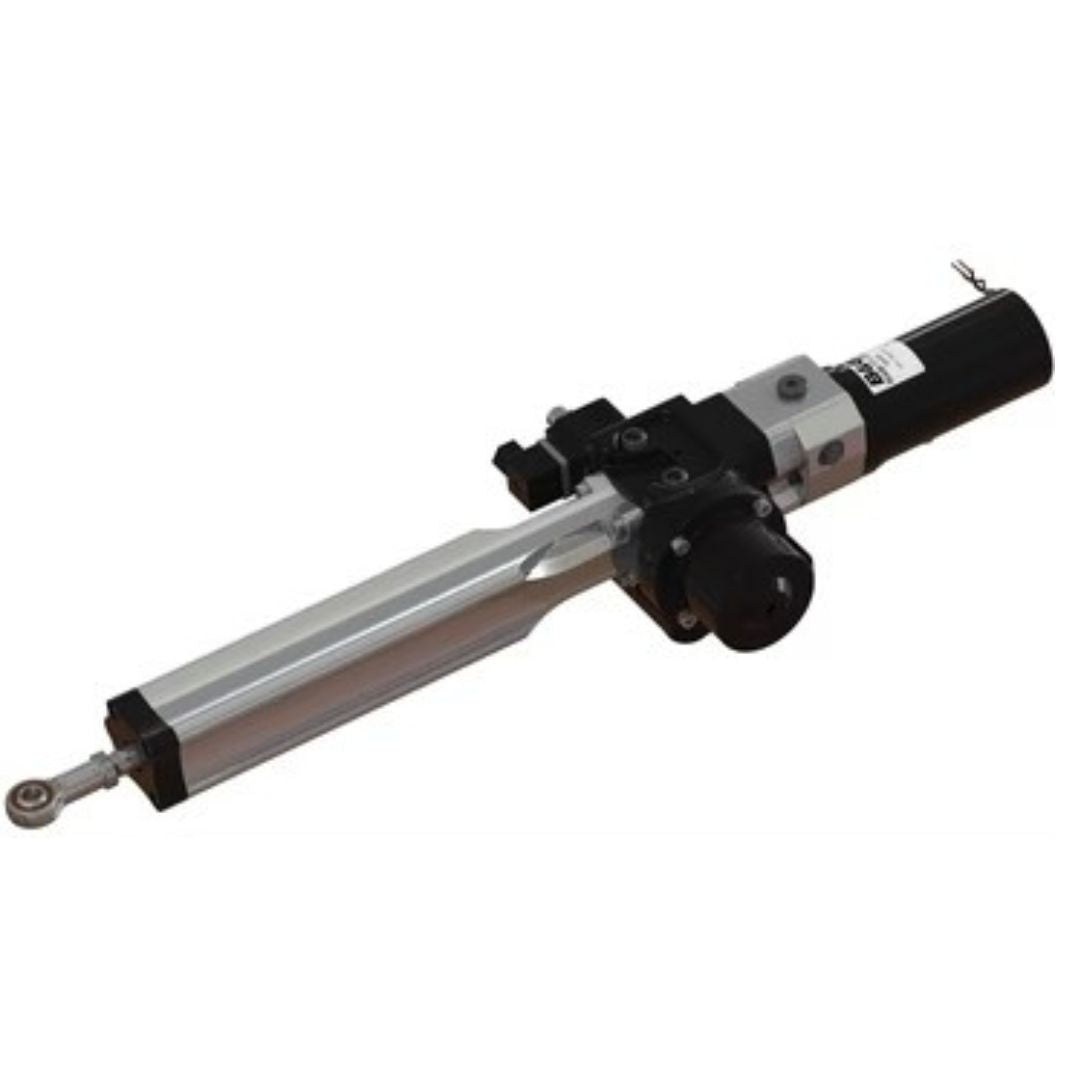

B&G - RAM-T2-24V-Hydraulic Ram T2 24V
B&G - RAM-T2-24V-Hydraulic Ram T2 24V
Pre order
Regular price
$ 2,499.00 USD
Regular price
$ 2,499.00 USD
Sale price
$ 2,499.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
B&G-RAM-T2-24V-Hydraulic Ram T2 24V
Performance
| Maximum thrust (intermittent) | 675 kg |
| Hard over time nominal RAM-T2 | 9 sec |
| Temperature rating minimum | -20ºc |
| Temperature rating maximum | +65ºc |
| Relief valve setting | 62 bar |
| Back-drive at 12 sec Hard-over | 7kg |
Electrical
| Motor voltage nominal | 24v DC |
Motor power 100 watt
| Max current 24v 25% duty | 11.2 A |
| Rotation | Reversing |
| Protection | IP44 |
| Connection | 1m 2 Core Flying Lead |
| Ignition protection | BS EN 28846:1993 |
| Coil power continuous | 12 watt |
| Recommended oil | Mineral based hydraulic ISO VG10 |
Materials
| Body | Aluminium BS 1490 |
| Piston rod | Chrome Plated Stainless Steel |
| Seals | Nitrile & PTFE |
| Body Protection | SP270 |
