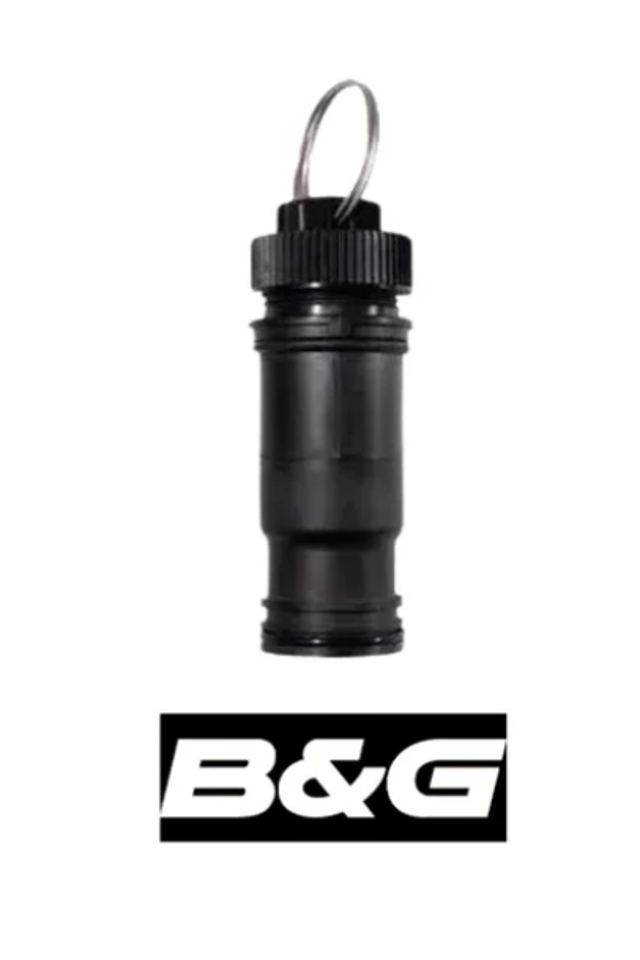

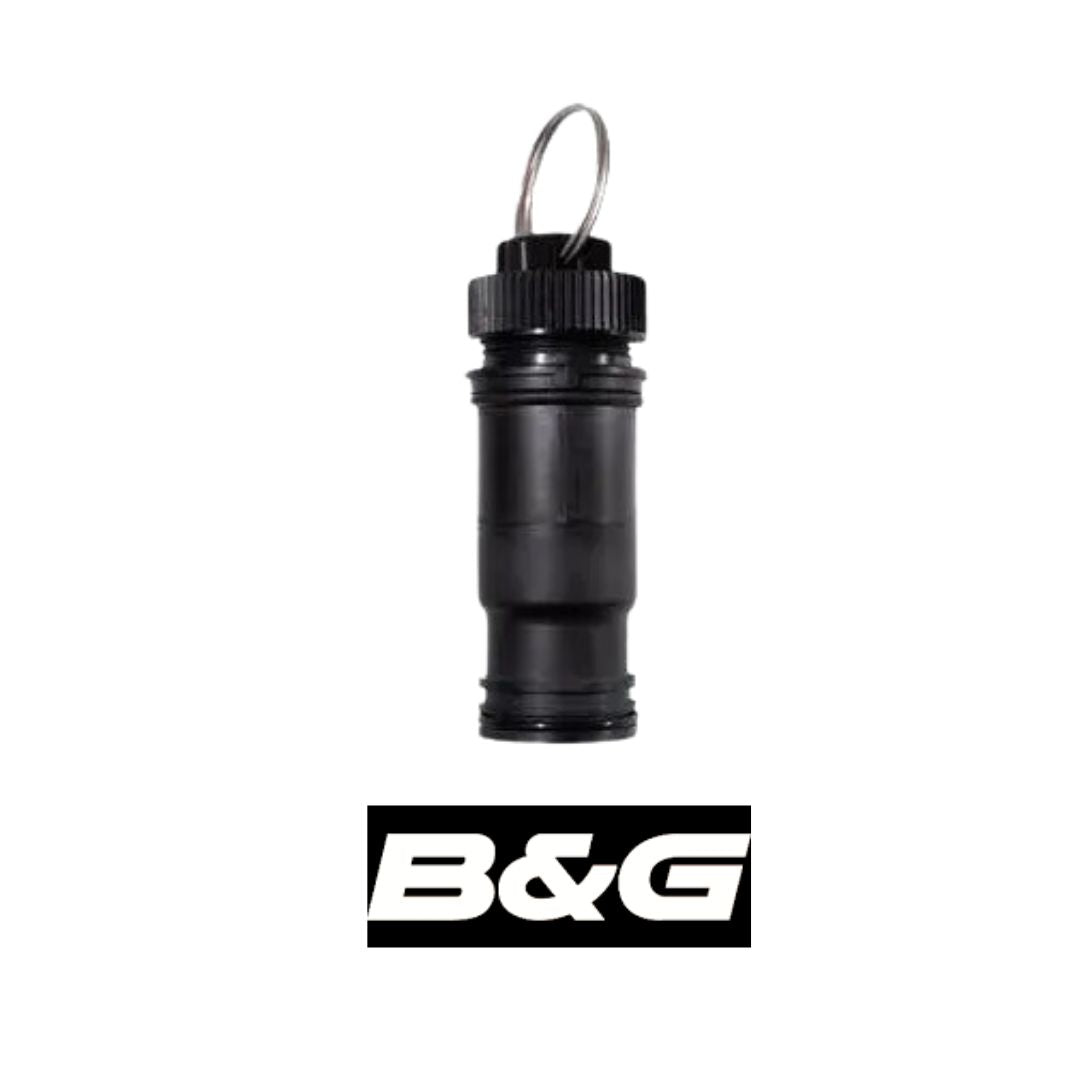

B&G SEN-DPT-HPF H3000 Plastic Flush Depth Sensor

B&G H3000 Plastic Flush Depth Sensor (SEN-DPT-HPF)

The B&G SEN-DPT-HPF is a grand-prix grade 170 kHz Plastic Flush Thru-Hull Depth Transducer engineered specifically for high-performance sailing systems including B&G H3000, H5000, Hydra, Hercules, and WTP platforms. Featuring a zero-drag flush-mount housing profile, this sensor installs completely level with the vessel's hull exterior to eliminate hydrodynamic turbulent drag, making it a preferred choice for racing yachts and performance cruisers.

Operating at B&G’s specialized 170 kHz frequency, the SEN-DPT-HPF prevents acoustic crosstalk and signal corruption from standard 50/200 kHz fishfinders or echo sounders operating nearby. The transducer can be fitted into a removable thru-hull housing or permanently glassed/molded into the hull matrix. It provides raw analog acoustic telemetry directly to B&G CPU sounder processing cards, allowing full datum adjustment to display depth relative to the waterline, keel draft, or transducer face.

Key Features

• Zero-Drag Flush Housing: Fits completely flush with the outer hull laminate to eliminate drag and preserve hydrodynamic performance.

• 170 kHz Operating Frequency: Off-frequency design eliminates acoustic interference and crosstalk with standard 50/200 kHz depth transducers.

• Versatile Hull Mounting: Can be installed via a removable thru-hull housing or glassed directly into fiberglass/composite hull matrices.

• Configurable Depth Datum: Fully compatible with B&G CPU offset processing for depth readings calibrated to the waterline, keel, or sensor face.
