Belden 8471 16 AWG 1-Pair Tinned Marine Cable (Per Meter)
Belden 8471 16 AWG 1-Pair Tinned Marine Cable (Per Meter)
74 in stock
Couldn't load pickup availability

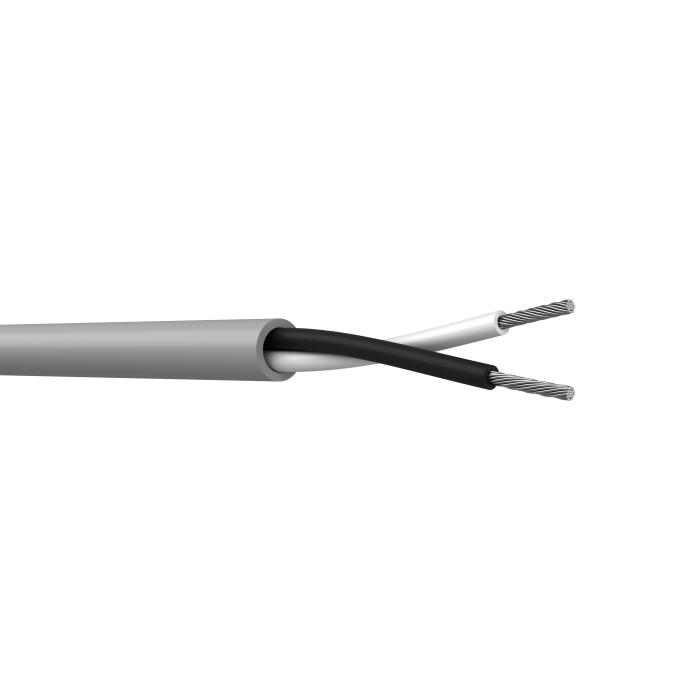

Belden 8471 Tinned Copper Twisted Pair Cable (Sold Per Meter / 16 AWG)
The Belden 8471 (SKU: BE8471-1000-060) is an industry-standard, high-durability 1-pair (2-conductor) 16 AWG tinned copper twisted-pair cable designed for marine instrumentation, low-voltage power distribution, audio speaker runs, and RS-485/industrial bus control signals.
Featuring stranded tinned copper conductors (19 * 29 stranding), the Belden 8471 offers exceptional resistance to tarnish, salt-air corrosion, and wire fatigue caused by continuous vessel engine vibration. The conductors are insulated with High-Density Polyethylene (HDPE) in a black/white color code and enclosed in a flexible, oil- and UV-resistant Chrome PVC outer jacket. Its unshielded design minimizes line capacitance for long low-voltage AC/DC power and audio signal runs throughout dry and damp interior vessel conduits.
Key Features
-
16 AWG Marine-Grade Tinned Conductors: Tinned copper strands prevent galvanic oxidation and maintain low resistance across crimped and soldered terminations in humid saltwater environments.
-
Low-Capacitance HDPE Insulation: High-Density Polyethylene wire dielectric provides low capacitance for clean audio transmission and uncorrupted sensor signaling.
-
19 * 29 High-Flexibility Stranding: Multi-strand conductor layout resists metal fatigue caused by engine vibration and continuous hull flexing.
-
UV & Marine-Resistant PVC Jacket: Flame-retardant outer PVC sheath withstands oil, sunlight, moisture, and mechanical abrasion in cable chases.
Specifications
| Feature | Specification |
| Manufacturer / Brand | Belden Inc. |
| Part Code / Series | 8471 (BE8471-1000-060) |
| Cable Architecture | 1-Pair (2 Conductors) Unshielded Twisted Pair (UTP) |
| Conductor Gauge | 16 AWG (1.31 mm²) |
| Conductor Stranding | 19 * 29 (19 Strands of 29 AWG Tinned Copper) |
| Conductor Material | High-Purity Tinned Copper (TC) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Insulation Color Code | Black & White |
| Outer Jacket Material | UV-Resistant PVC (Polyvinyl Chloride) - Chrome Gray |
| Nominal Outer Diameter | Approx. 7.01 mm (0.276 in) |
| Nominal Conductor DCR | 4.49 Ω / 1000 ft (14.73 Ω / km) |
| Nominal Capacitance (Cond-Cond) | 33 pF/ft (108.3 pF/m) |
| Voltage Rating | 300 V RMS (UL AWM Style 2598) |
| Current Rating | 7.2 A DC per conductor @ 25°C |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Compliance & Approvals | UL Style 2598, NEC/CEC CM, EU RoHS, CE |
