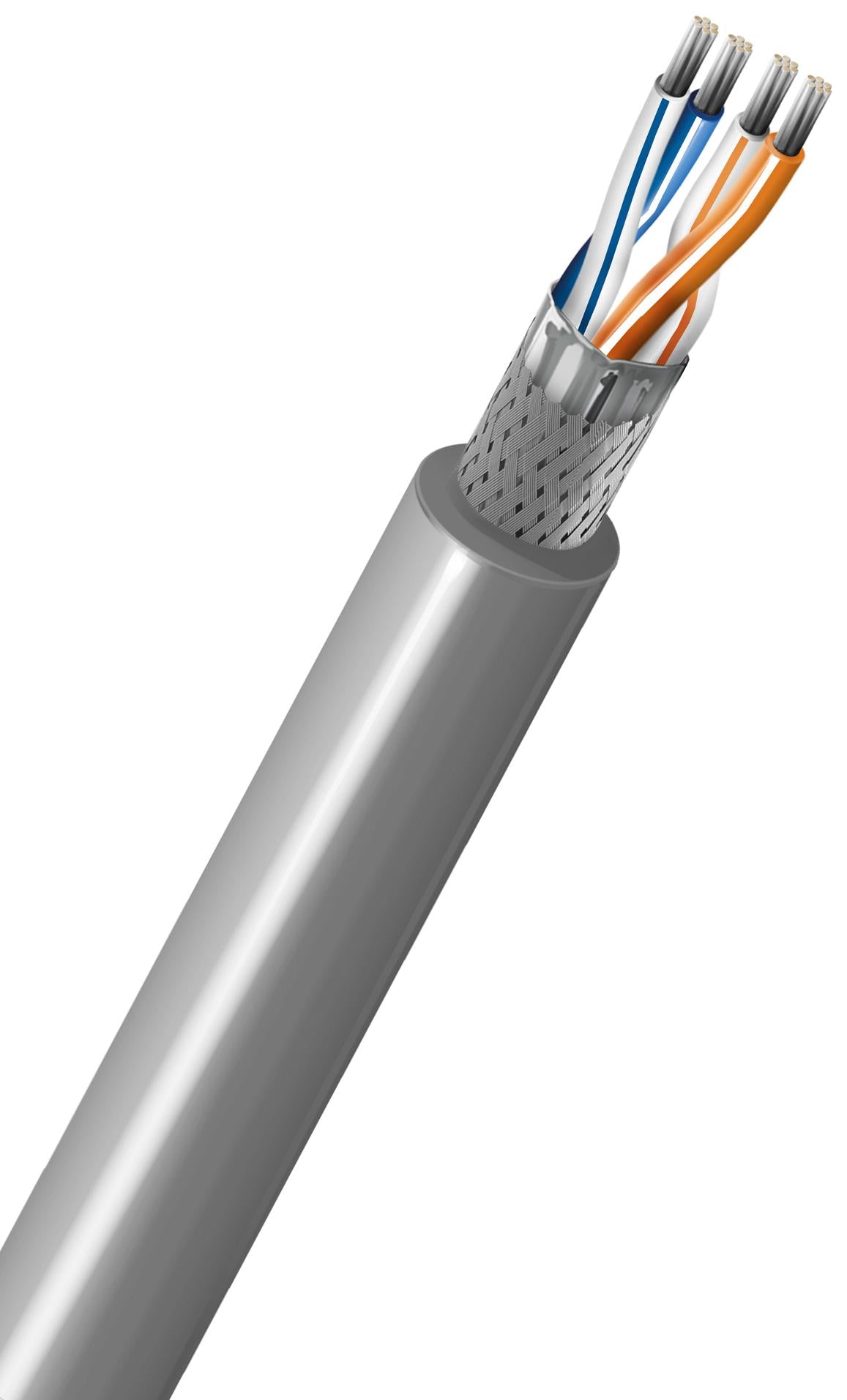

Belden 9842 24 AWG 2-Pair Shielded RS-485 Cable( Per Meter)

Belden 9842 Low-Capacitance 2-Pair Shielded RS-485 Cable(Per Meter)

The Belden 9842 (SKU: BE9842-1000-060 / 9842 0601000) is the industry-standard 2-pair 24 AWG low-capacitance shielded data cable engineered specifically for extended-distance EIA RS-485, DMX-512, and high-noise industrial serial communication networks.

Constructed with stranded tinned copper conductors (7 * 32) and High-Density Polyethylene (PE) insulation, the cable delivers a low mutual capacitance of 12.8 pF/ft (42 pF/m) and a matched 120 Ω characteristic impedance. To ensure signal integrity in electrically noisy environments, the Belden 9842 features dual overall shielding: a 100% coverage Beldfoil® aluminum/mylar foil tape wrap combined with a 90% tinned copper wire braid shield and a 24 AWG tinned copper drain wire. Enclosed in a rugged, oil- and flame-retardant Chrome PVC outer jacket, it provides ultra-reliable signal transmission across marine, industrial, and building automation systems.

Key Features

• Matched 120 Ω Impedance for RS-485 & DMX-512: Designed to meet the stringent electrical requirements of EIA RS-485 serial buses and DMX lighting control protocols.

• Ultra-Low Capacitance: High-Density PE dielectric minimizes pulse distortion and attenuation over long cable runs.

• Combination Double Shielding: Beldfoil® 100% aluminum foil layer protects against high-frequency RFI, while the 90% tinned copper braid provides high structural strength and low-frequency EMI protection.

• Tinned Copper Drain Wire: 24 AWG stranded drain wire simplifies grounding at shield terminations.

• Marine & Industrial Grade Sheath: Chrome-colored PVC outer jacket resists sunlight, moisture, oil, and continuous panel vibration.

Specifications
