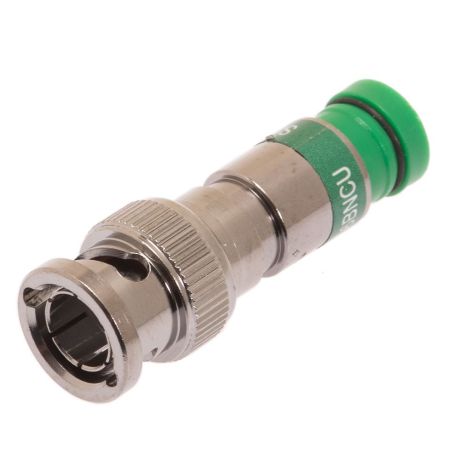

Belden FSNS6BNCU-25 Snap-N-Seal RG-6 BNC Connector

Belden FSNS6BNCU-25 Snap-N-Seal RG-6 Universal BNC Connector

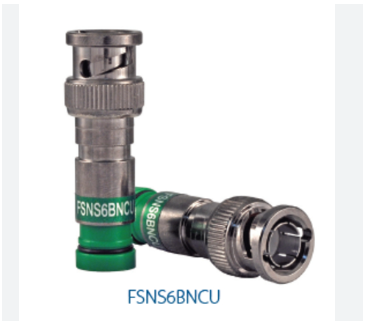

The Belden Snap-N-Seal FSNS6BNCU-25 (also referenced as FSNS6BNCU) is a high-performance 75-Ohm male BNC compression connector engineered for broadcast video, marine CCTV, GPS receiver feedlines, HD-SDI, and commercial marine RF installations. Designed for fast, tool-assisted compression termination onto standard, tri-shield, and quad-shield RG-6 coaxial cables, it provides complete 360° radial seal integrity to prevent moisture ingress and signal degradation.

Featuring a heavy-duty nickel-plated brass body and a patented internal sleeve assembly, the FSNS6BNCU delivers superior return loss (> -30 dB up to 3 GHz) and maximum pull-off mechanical strength. Its true 75 Ω design minimizes standing wave ratios (VSWR) across high-definition video and data communications spectrums.

Key Features

• True 75 Ω Impedance: Optimized for HD-SDI, marine surveillance video, radar signals, and digital audio, preventing signal reflection and jitter.

• Universal RG-6 Compatibility: Fits all standard, tri-shield, and quad-shield RG-6 coaxial cables with a single connector model.

• 360° Radial Compression Seal: True environmental seal guards against moisture intrusion in humid, salt air, and deck-exposed environments.

• Color-Coded Plastic Guide Ring: Internal polymer sleeve ensures effortless alignment during cable insertion and instant visual compression status verification.

• High Mechanical Retention: Exceeds SCTE pull-out strength guidelines to resist cable pull-off caused by engine vibration or deck movement.
