Belden RVAFPSME-S1 REVConnect 10GX Shielded Plug

Belden REVConnect 10GX Category 6A Shielded Field-Mount Plug

The Belden RVAFPSME-S1 is a industrial/marine-grade REVConnect 10GX STP (Shielded Twisted Pair) field-mount RJ45 plug engineered for Category 6A / 10GBASE-T high-bandwidth networking. Designed for direct connection to IP surveillance cameras, wireless access points (WAPs), marine satellite communications gateways, and industrial IoT devices, it utilizes Belden’s universal REVConnect core system to streamline field termination without stripping individual conductors.

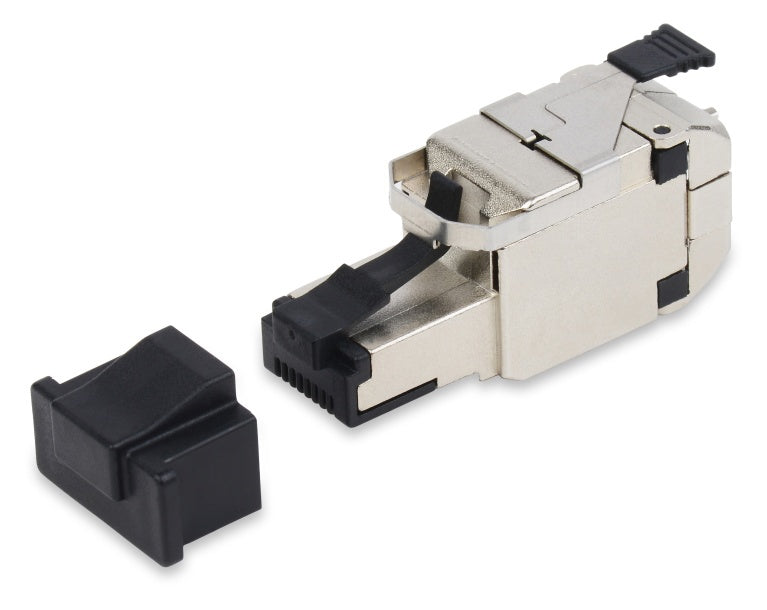

Housed in a nickel-plated die-cast zinc alloy metal body, the RVAFPSME-S1 provides 360° continuous shielding against high electromagnetic interference (EMI) from adjacent variable frequency drives (VFDs), radar transmitters, and marine power inverters. The single-pack variant (RVAFPSME-S1) contains a complete field plug assembly and termination core, rated for 100W Type 4 Power over Ethernet (PoE++) delivery.

Key Features

• REVConnect Termination Core: Insulation-piercing contact (IPC) technology enables fast, reliable terminations across stranded and solid conductor cables.

• 360° STP Metal Shielding: Die-cast zinc alloy housing insulates Cat 6A 10Gbps data lines against severe industrial EMI.

• 100W PoE++ Power Handling: Certified for IEEE 802.3bt Type 4 (up to 100W), Cisco UPOE, and Power over HDBaseT (PoH) applications.

• Plenum Rated (UL 2043): Approved for air handling spaces and enclosed vessel wiring trunks.

• Universal Cable Compatibility: Fits both Category 6A STP and Category 6 STP cables with bonded or non-bonded pair construction.
