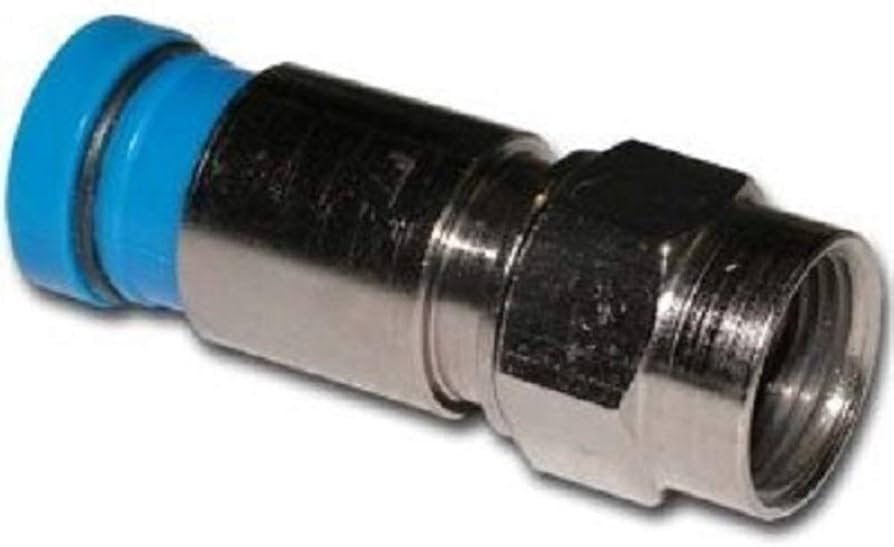

Belden PPC SNS1P6 Snap-N-Seal RG6 F Compression Connector

Belden / PPC SNS1P6 Snap-N-Seal RG6 F Compression Connector

The Belden / PPC SNS1P6 is a high-performance, one-piece 75-Ω male F-type compression connector specifically designed for RG6 coaxial cable installations across marine RF networks, CATV, satellite systems, and broadband communication drops. Built to exceed SCTE standards, it features a true 360° radial compression collar that provides uniform mechanical retention and complete RF shielding.

Manufactured from precision-machined tin-plated brass with ethylene propylene O-rings, the SNS1P6 delivers exceptional resistance to galvanic corrosion and moisture ingress in harsh outdoor and marine salt-air environments. Its integrated Snap-N-Seal sleeve design allows low-force cable insertion and fast, single-tool crimping, ensuring a gas-tight, 100% waterproof seal that prevents signal attenuation and moisture migration.

Key Features

• True 360° Radial Compression: Delivers full perimeter shielding and uniform grip on cable jacket to prevent signal leakage and packet loss.

• 100% Weatherproof Environmental Seal: Internal dual O-rings and sealing sleeve form a permanent barrier against rain, salt spray, and condensation.

• Tin-Plated Solid Brass Construction: Ensures maximum corrosion resistance and structural integrity under high marine mechanical strain.

• Low Insertion & High Retention Force: Tooling-optimized sleeve geometry requires low physical force to seat while providing >40 lbs of tensile pull-off resistance.

• Broadband Performance (3 GHz Rated): Minimal return loss (<-27 dB up to 1 GHz) ensures clean signal transfer for marine satellite TV and digital video feeds.
