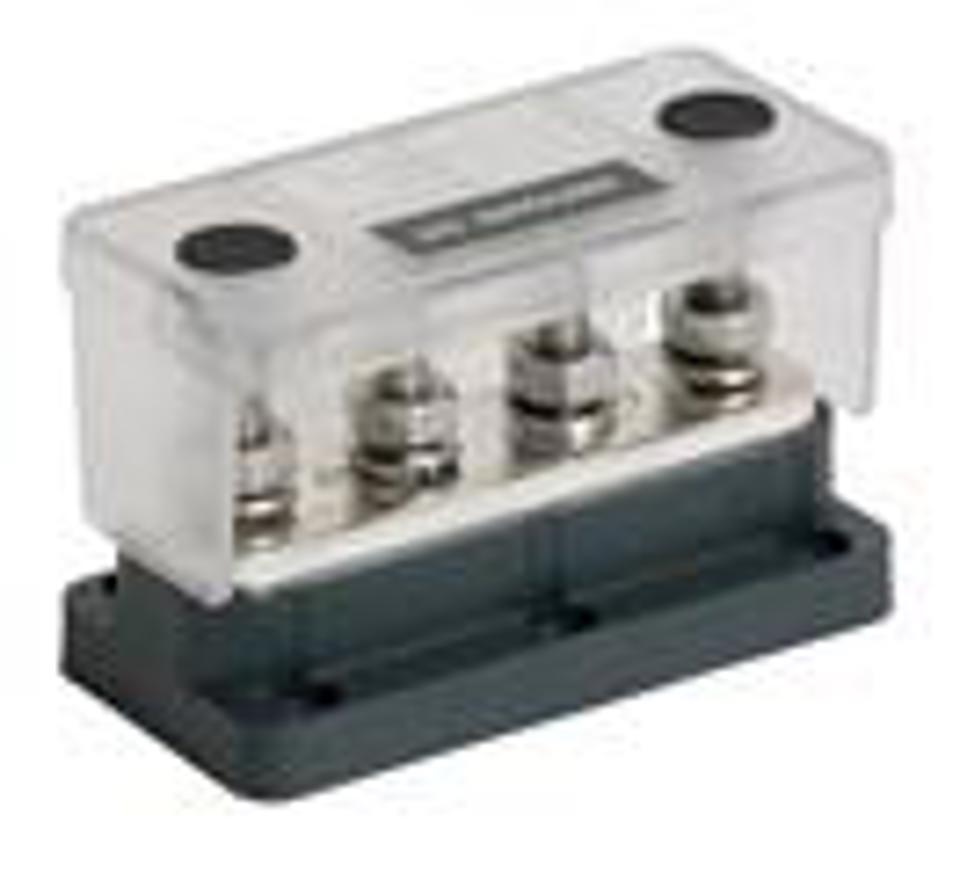

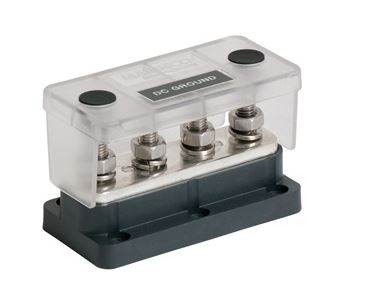

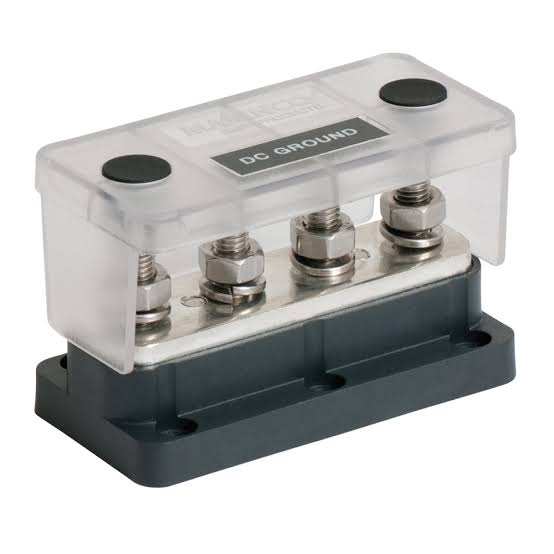

BEP 777-BB4S-500-B Pro Installer 500A Busbar

BEP Pro Installer 500A 4-Stud Heavy-Duty Power Busbar (Bulk Pack )

The BEP 777-BB4S-500-B is a high-capacity 500 Amp DC distribution busbar engineered to consolidate heavy-gauge battery cables, inverter feeds, and main ground paths. Part of BEP's modular Pro Installer cluster system, it features a standardized 1* footprint and common interconnection height, allowing direct link-bus joining to Pro Installer fuseholders and battery switches to save installation space and labor time.

Constructed with high-purity tinned CDA102 copper conductors mounted on a high-temperature glass-reinforced fiber base, the 777-BB4S-500-B handles high continuous current up to 50V DC. It provides four M8 (5/16 in) stainless steel studs treated with factory anti-seize lubricant to prevent thread galling under high torque. Each busbar includes a clear polycarbonate protective cover with removable snap-out side panels for multidirectional cable access.

Key Features

• High-Conductivity Copper Bus: Tinned CDA102 copper plate ensures minimal voltage drop and maximum heat dissipation under high loads.

• Modular Pro Installer Interconnection: Uniform footprint height enables direct bar-to-bar connection to Pro Installer switches and ANL/Class-T fuse blocks.

• Anti-Seize Coated Studs: M8 (5/16 in) stainless steel studs pre-treated with anti-seize lubricant to ensure thread reliability in marine conditions.

• Clear Polycarbonate Protective Cover: Insulates live conductors while allowing visual inspection; flexible snap-out sections permit custom cable breakout angles.

• Fiber-Reinforced Polycarbonate Base: Flame-retardant, high-impact base resists engine room ambient heat and chemical exposure.
