BEP Pro Installer 777-Z10W-200 200A 10-Way Z-Busbar

BEP Pro Installer 200A 10-Way Z-Busbar System

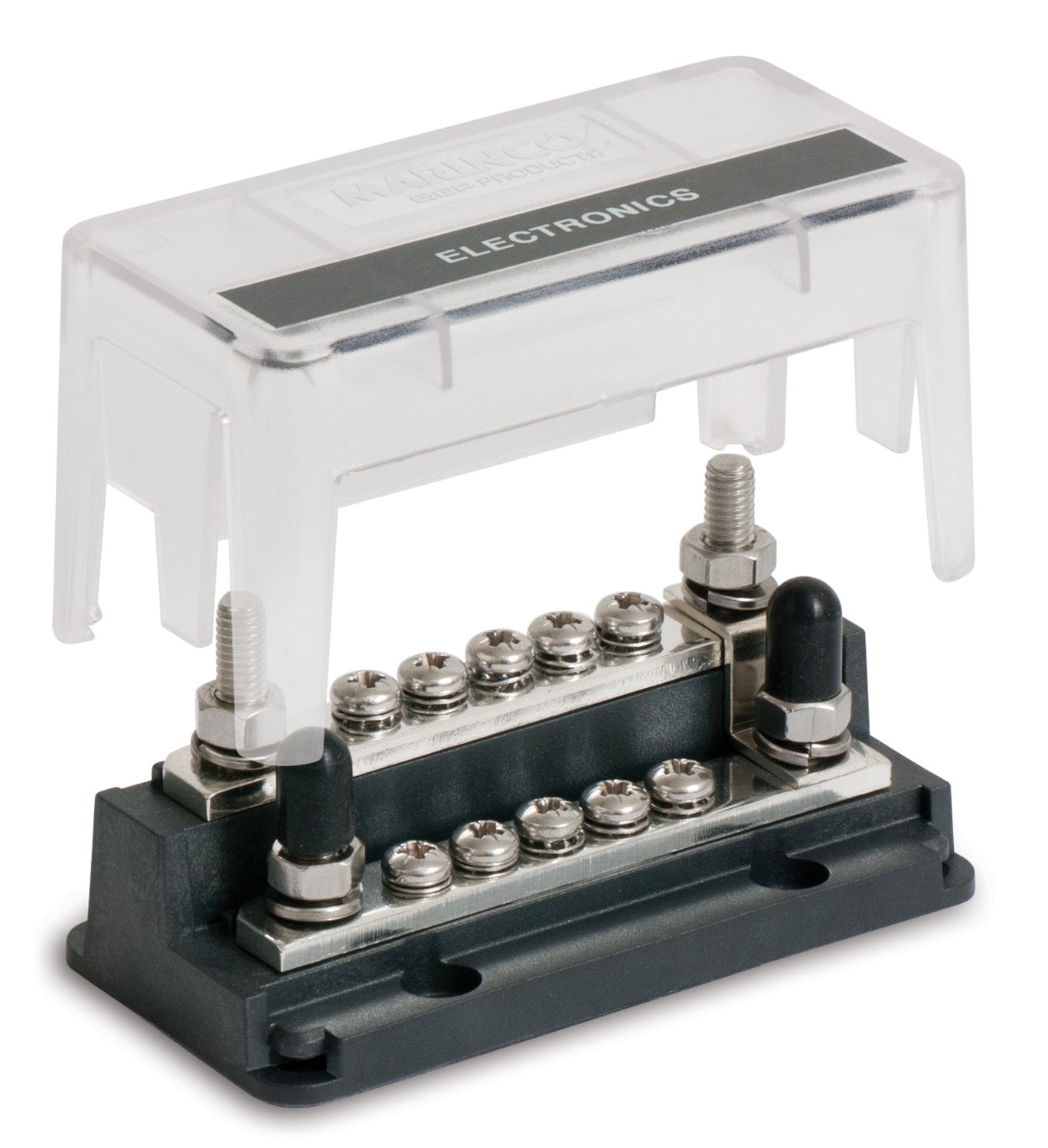

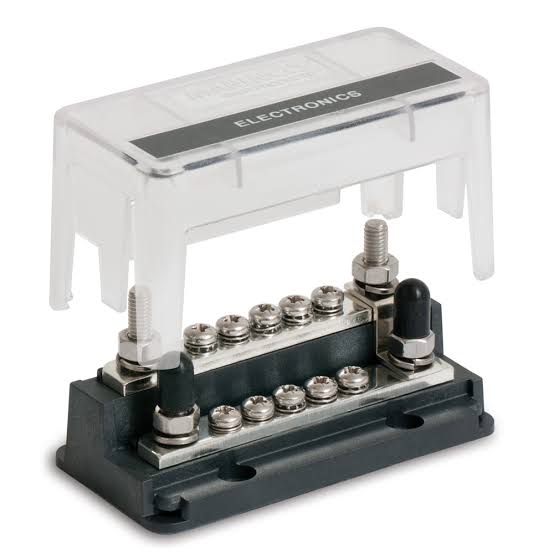

The BEP Pro Installer 777-Z10W-200 is a compact, 200-Amp 10-way dual-tier Z-busbar engineered for high-density secondary power and return distribution in marine electrical panels. Featuring a patent-pending two-tier "Z" stepped conductor profile, it allows small-to-medium gauge branch cables (1.5 mm² to 16 mm² / 16 AWG to 6 AWG) to enter from a single side without overlapping or cluttering terminal connections.

Designed as part of the modular BEP Pro Installer footprint, the 777-Z10W-200 can be used as a standalone 10-terminal positive or negative bus, linked back-to-back/end-to-end to expand capacity, or split into separate positive and negative return rails using Pro Installer Z-Links. Constructed from high-purity tinned C11000 copper with stainless steel studs and a high-temperature reinforced base, it includes a snap-on transparent protective cover insulating three sides while ensuring easy access for circuit testing.

Key Features

• Patent-Pending Two-Tier Z-Profile: Elevates alternate terminal rows, enabling all 10 cables to exit cleanly from one side without severe wire bending or overlapping.

• High-Density Footprint: Doubly efficiently utilizes enclosure space compared to traditional inline 10-terminal busbars.

• Modular Extension Capability: Z-Bars can be placed end-to-end or back-to-back and linked using Z-Link copper bars to double system capacity.

• Clear Insulating Cover: Three-side clip-on polycarbonate cover insulates live terminals per ABYC standards while keeping labels and cable lugs visible.

• Corrosion-Resistant Hardware: Heavy-plated C11000 copper bar with stainless steel M6 (1/4 in) main studs and M4 / M5 branch terminal screws.
