BEP 777-Z18W-200-B Pro Installer 18-Way Z-Busbar 200A

BEP Pro Installer 18-Way 200A Z-Busbar (Z-Profile Architecture)

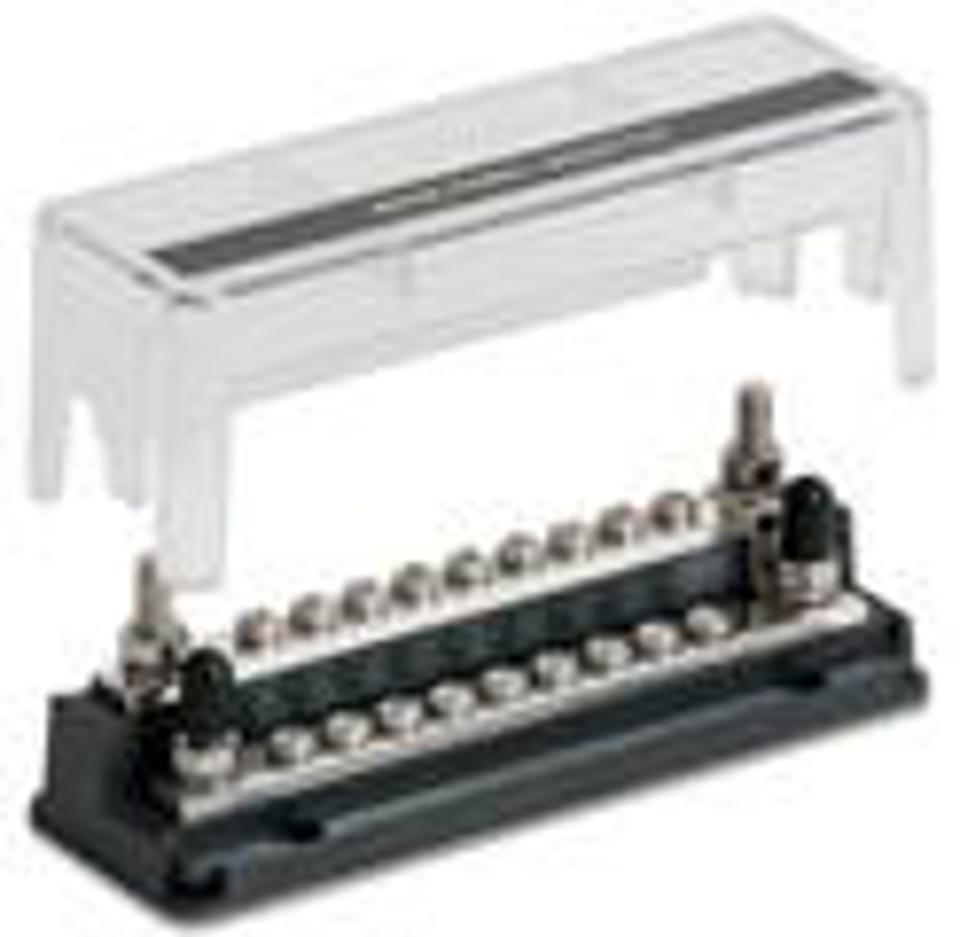

The BEP 777-Z18W-200-B is a high-density, 200 Amp 18-way distribution busbar engineered to solve space-constraint issues in complex marine helm consoles and power distribution panels. Built using BEP’s patented Z-Busbar dual-level offset architecture, it allows small gauge branch load terminals to overlap cleanly on two distinct height levels, doubling terminal density compared to traditional flat busbars.

Constructed with high-purity C11000 electro-tin plated copper, the 777-Z18W-200-B features two primary M8 (5/16 in) studs for main feed connections alongside 18 stainless steel terminal screws (M4 / #8-32) for branch loads. Integrated into the BEP Pro Installer system, its fiber-reinforced composite base interlocks seamlessly with other modules, while the included snap-on clear cover provides IP20 shielding against accidental contact.

Key Features

• Patented Z-Busbar Profile: Dual-level staggered height design doubles connection density in half the linear footprint.

• Pro Installer Modular Footprint: Integrates modularly with Pro Installer battery switches, fuseholders, and power distribution blocks.

• High-Conductivity C11000 Copper: Electro-tin plated copper bar delivers max power transfer while resisting salt spray corrosion.

• Snap-On Protective Cover: Clear polycarbonate insulating cover shields live conductors with breakout skirts for multi-angle cable routing.

• High-Temperature Structural Base: Molded fiber-reinforced plastic base withstands severe engine compartment heat and mechanical stress.
