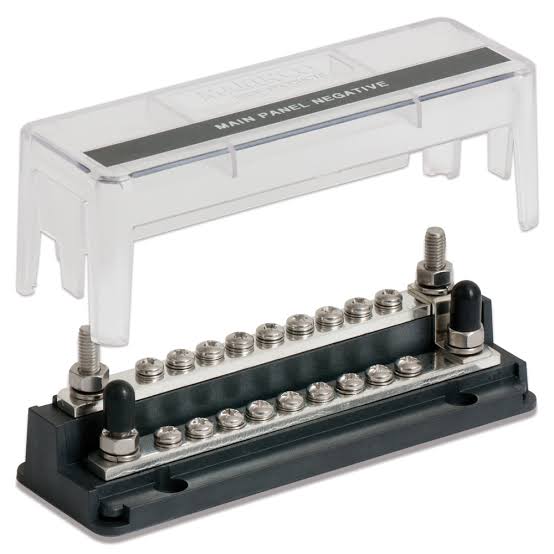

BEP Pro Installer 777-Z18W-200 200A 18-Way Z-Busbar

 BEP Pro Installer 200A 18-Way Z-Busbar System

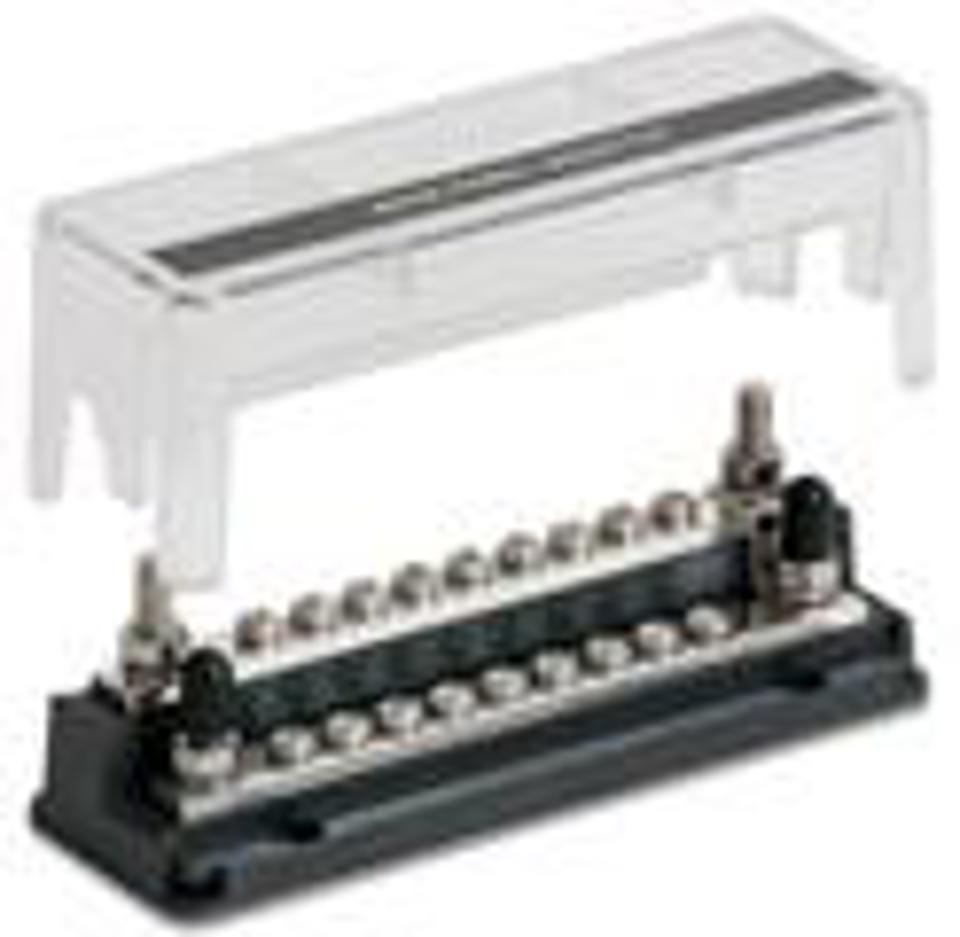

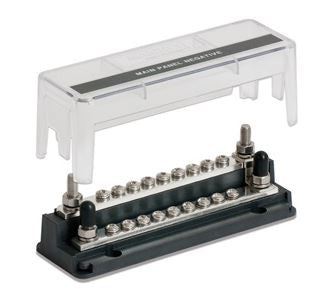

The BEP Pro Installer 777-Z18W-200 is a high-density, 200-Amp 18-way dual-tier Z-busbar designed for high-capacity DC power and ground distribution in space-constrained marine electrical panels. Featuring BEP’s patent-pending two-tier "Z" stepped conductor architecture, it allows small-to-medium branch feed conductors to enter neatly from a single side without overlapping, tangling, or requiring severe wire bend radiuses.

Engineered with high-purity tinned C11000 copper bars, the 777-Z18W-200 includes 4 primary M6 (1/4 in) connection studs alongside 18 M4 (5/32 in) screw terminals equipped with captive lock washers. The unit can function as a single 200A high-density bar, split into separate positive/negative distribution rails, or linked to adjacent Pro Installer modules using copper Z-Links. A transparent polycarbonate insulating cover insulates live terminals across three sides while allowing clear visual circuit inspection.

Key Features

• Patent-Pending Two-Tier Z-Profile: Elevates alternate terminal rows, allowing all 18 branch wires to exit cleanly from one direction for superior wire management.

• High Terminal Density: Accommodates up to 18 individual branch circuits and 4 main feeder/tie cables within a compact 1.5* Pro Installer footprint.

• Modular Linkability: Easily extended end-to-end or back-to-back, or linked across tiers using Pro Installer Z-Links.

• 3-Side Protective Cover: Snap-on transparent cover insulates live electrical contacts per ABYC requirements with breakaway tab openings for flexible cable egress.

• Marine-Grade Hardware: High-purity tinned C11000 copper conductor bar with stainless steel studs, nuts, and anti-seize lubricant applied to main stud threads.
