BEP 778-ANL-B Pro Installer 300A ANL Fuse Holder

BEP Pro Installer 300A ANL Fuse Holder

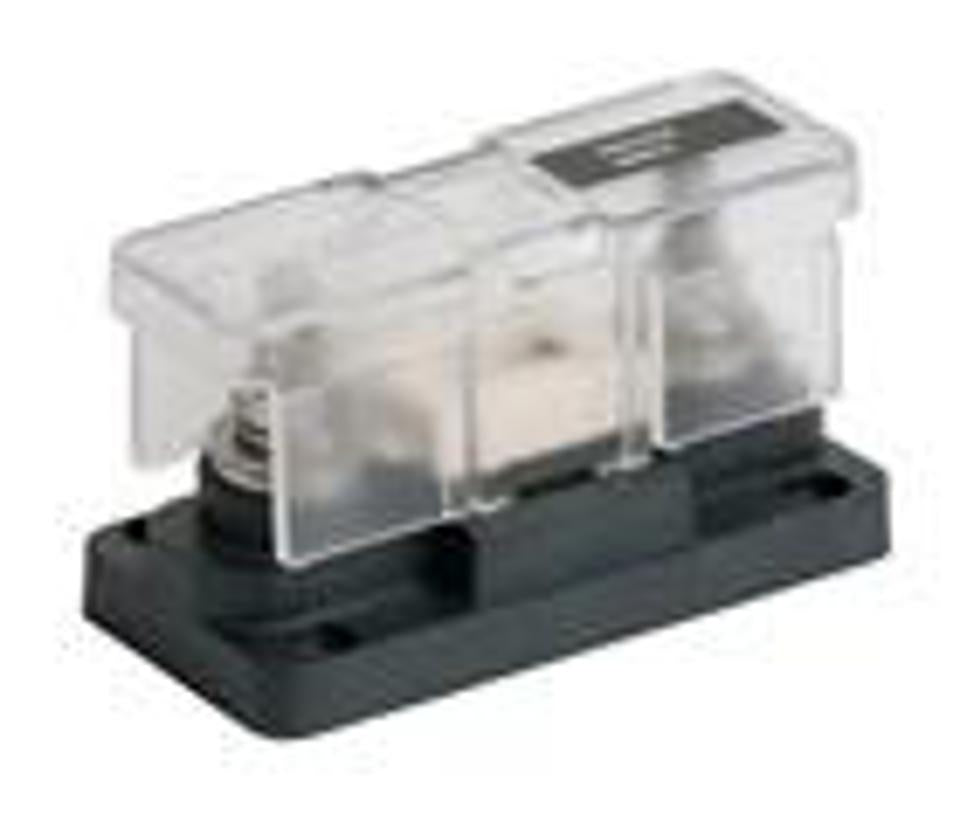

The BEP 778-ANL-B is a heavy-duty 300 A continuous marine ANL fuse holder engineered to provide high-current DC circuit protection for anchor windlasses, battery chargers, bow thrusters, and sub-panel feeder lines. Designed as part of the modular BEP Pro Installer system, it features radiused high-purity tinned copper busbars and extended M8 (5/16 in) studs that accommodate back-to-back terminal stackings and link-bus connections.

Constructed with a high-temperature, fiber-reinforced plastic base, the 778-ANL-B eliminates physical stress on the fuse element during installation and cable tightening. The included snap-on transparent polycarbonate cover provides IP20 environmental shielding against accidental shorts while featuring dual side-skirt breakouts for flexible multi-directional cable entry.

Key Features

• Pro Installer Modular Footprint: Standardized footprint and terminal height allow direct modular connection with Pro Installer distribution blocks, battery switches, and busbars.

• Radiused Tinned Copper Busbars: High-conductivity C11000 tinned copper plates optimize current flow while curved edges improve heat dissipation under sustained loads.

• Insulating Protective Cover: Clear polycarbonate snap-on cover insulates live components and includes breakaway skirts for custom wire access.

• Durable Structural Base: High-impact, fiber-reinforced composite base provides exceptional mechanical strength and heat resistance in engine compartments.

• Dual Cable Attachment Studs: Robust M8 (5/16 in) tinned copper studs accept multiple heavy-gauge crimp lugs per side without thread binding.
