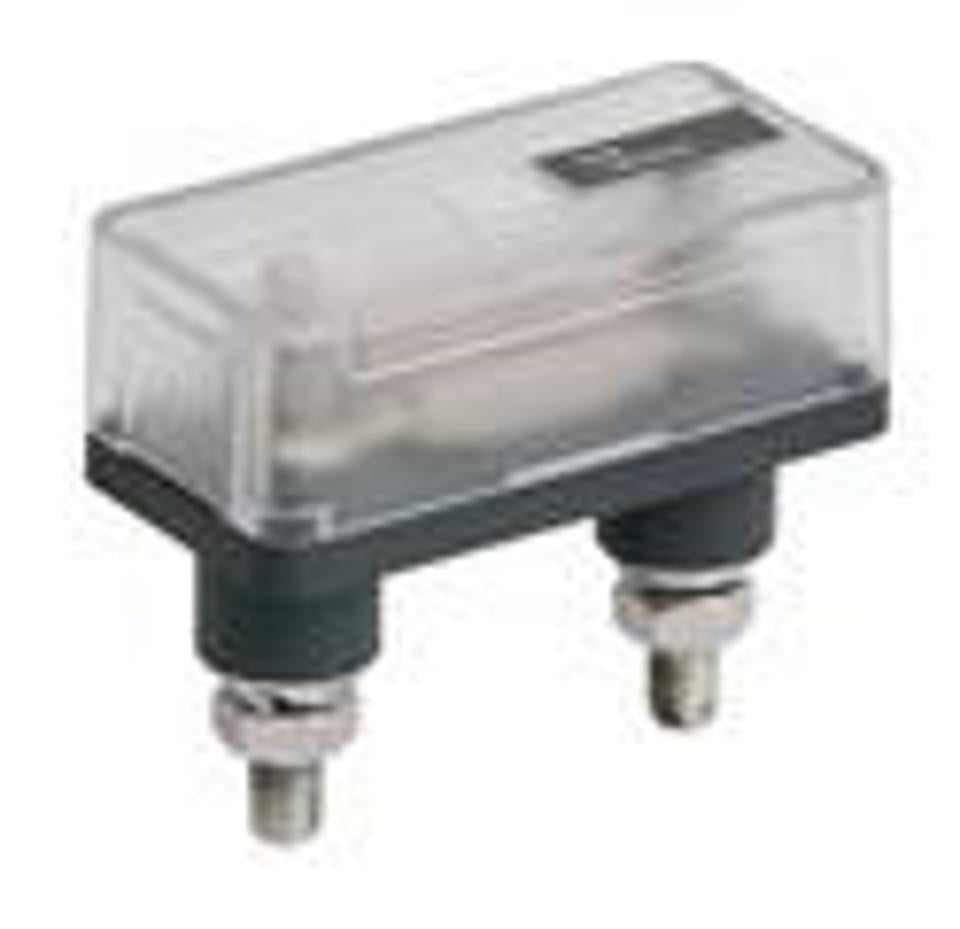

BEP Pro Installer 500A Through-Panel ANL Fuse Holder
The BEP 778-ANLTP is a heavy-duty, commercial-grade through-panel ANL fuse holder designed for high-current main battery feed and inverter circuit protection up to 500 Amperes. Part of BEP’s modular Pro Installer series, this specialized holder allows high-amperage cable pass-through across engine room bulkheads, battery boxes, or helm console panels while maintaining absolute circuit isolation and a clean, space-saving installation layout.
Engineered with high-conductivity tin-plated CDA 110 copper busbars and heavy-duty M10 (3/8") stainless steel studs, the 778-ANLTP accepts standard high-capacity ANL fuses and large-gauge cable lugs. Its high-impact, fiber-reinforced plastic base provides high dielectric strength and thermal resistance, while the snap-on protective cover features break-out skirts on four sides to accommodate flexible cable entry angles.
- Convenient fuse inspection and replacement
- Compact footprint saves space
- Radiused connection points improve cable routing options (back-to-back lugs fit at any angle -90 to +90)
- Innovative clear cover provides insulation/protection
- Fuse viewing "window" in cover aids visual inspection of fuse state
- Label recess on cover allows fitting up to " width (12.7mm) printed labels from handheld label printers
- Insert moulded studs offer superior mechanical strength
- Designed for the harsh marine environment
- Studs have anti-seize lubrication applied to prevent thread galling
- Cable connection studs: 10mm (3/8")
- Fuse mounting studs: 8mm (5/16"). Also allows 10mm (3/8") fuses to be used
- Fuse type: ANL or ANN (very fast acting)
- Amperage: 35-500A
- 50 VDC, or determined by fuse fitted (if lower)
- High temperature, fibre reinforced plastic base provides strength and chemical resistance
- Clear polycarbonate cover
- Tinned CDA260 highly conductive brass for improved strength on integral studs, stainless steel nuts and washers for longevity in the marine environment
- All threads are metric
