BEP Pro Installer 779-LBJ-3 3-Way Link Joiner Bar

BEP Pro Installer 3-Way Link Joiner Bar

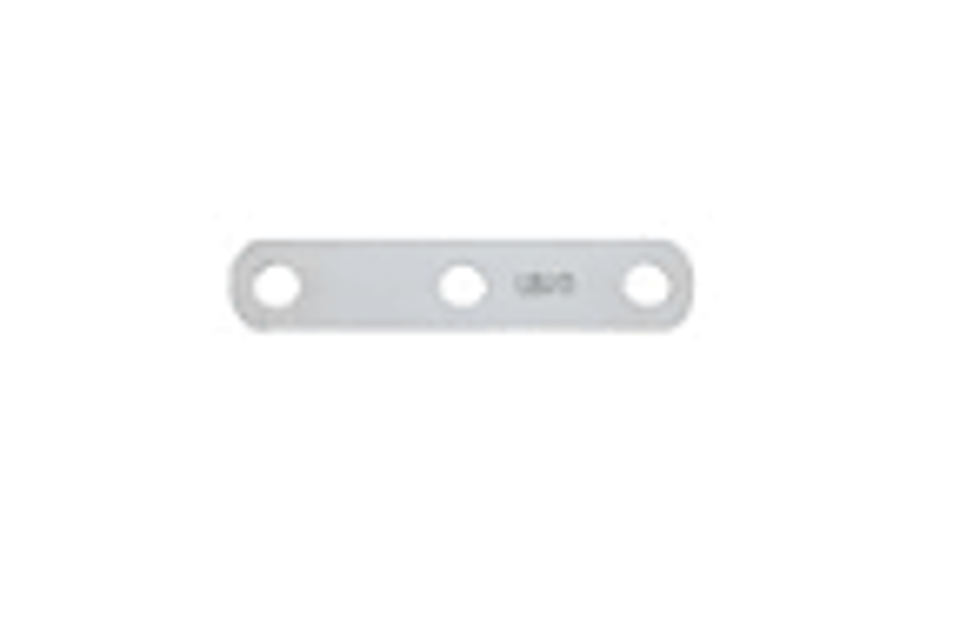

The BEP Pro Installer 779-LBJ-3 is a high-conductivity 3-way tinned copper link joiner bar engineered to interconnect up to three adjacent Pro Installer modules (such as battery switches, ANL fuseholders, Class-T fuseholders, and busbars). Designed to match the standardized interconnection height across the Pro Installer series, it eliminates heavy interconnecting cables, shortens wire runs, and creates ultra-compact distribution clusters.

Manufactured from high-purity C11000 electro-tin-plated copper, the 779-LBJ-3 provides superior corrosion resistance and ultra-low contact resistance in harsh saltwater environments. Featuring M10 (3/8 in) stud hole dimensions spaced at 50.8 mm (2.0 in) centers, this joiner bar supports continuous current loads up to 650A between adjacent positions and 500A across all three positions. Bars can also be stacked or doubled up on the same studs to accommodate higher continuous current demands.
