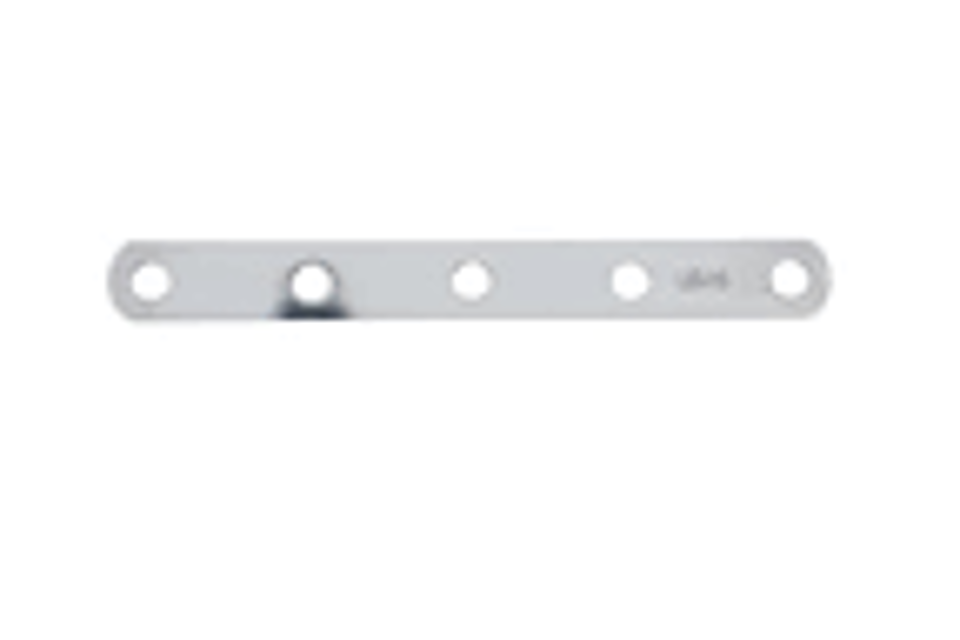

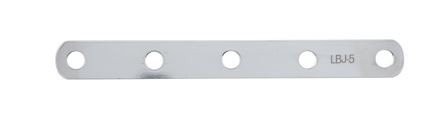

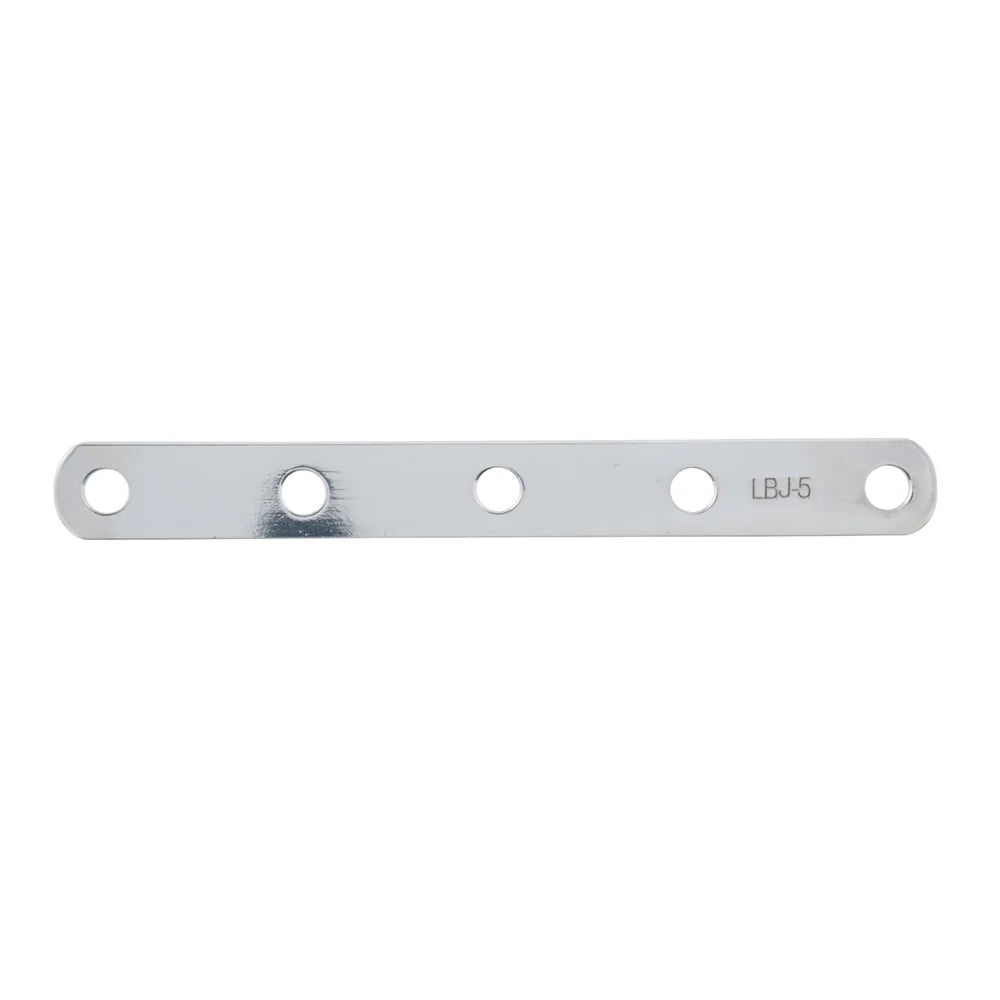

BEP Pro Installer 779-LBJ-5 5-Way Link Joiner Bar

BEP Pro Installer 5-Way Link Joiner Bar

The BEP Pro Installer 779-LBJ-5 is a high-conductivity 5-way tinned copper link joiner bar engineered to interconnect up to five adjacent Pro Installer modules (such as battery switches, ANL fuseholders, Class-T fuseholders, and busbars). Designed to match the standardized interconnection height across the Pro Installer series, it eliminates heavy interconnecting cables, shortens cable runs, and creates ultra-compact distribution clusters.

Manufactured from high-purity C11000 electro-tin-plated copper, the 779-LBJ-5 provides superior corrosion resistance and low contact resistance in harsh saltwater environments. Featuring M10 (3/8 in) stud hole dimensions spaced at 49 mm centers, this joiner bar supports continuous current loads up to 650A between adjacent positions and 400A across the entire length. Bars can also be stacked/doubled up to accommodate even higher current demands.
