BEP 80-511-0001-00 12V 5A Latching Red LED Push Button

BEP 12V Latching Push-Button Switch (Red LED Ring)

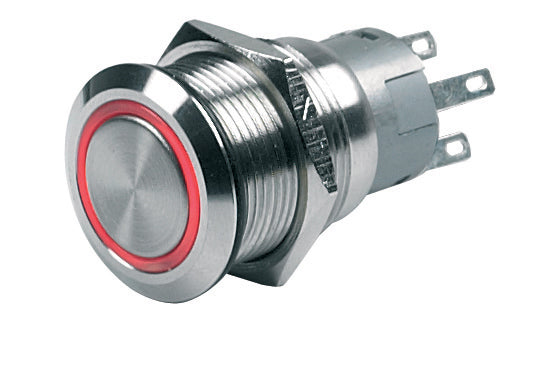

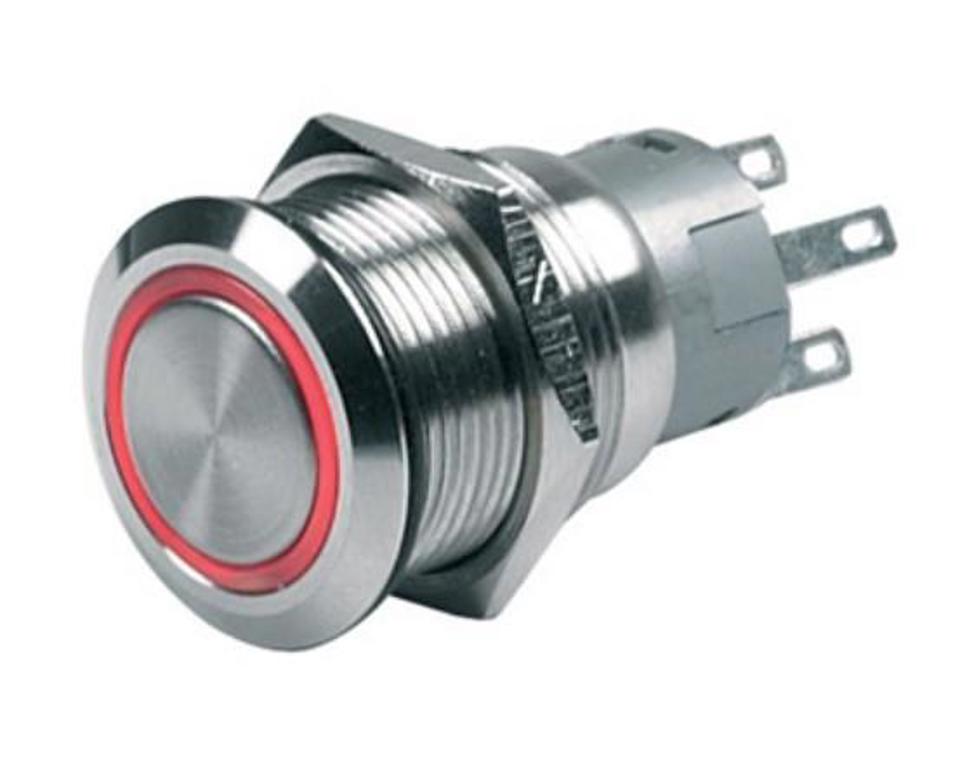

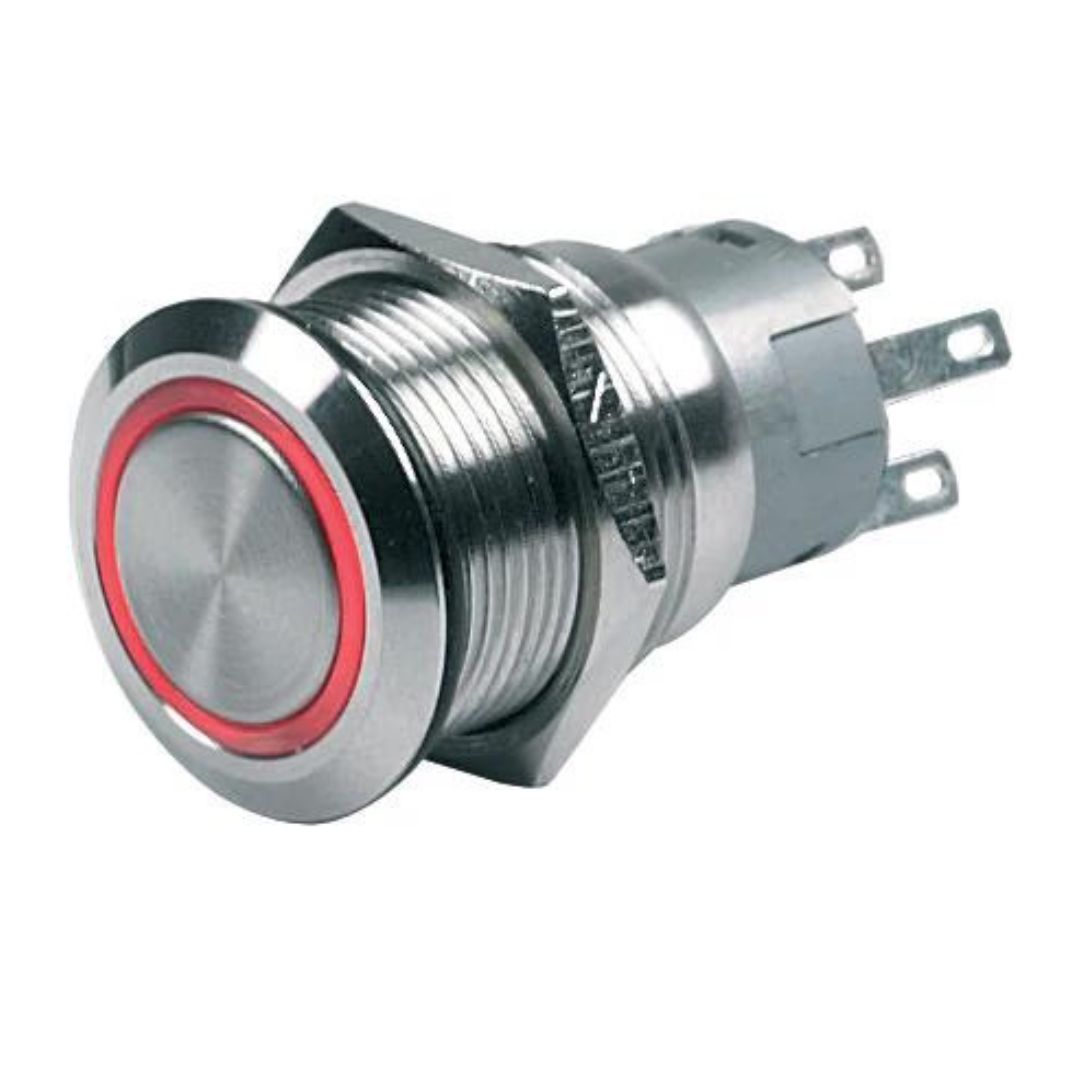

The BEP 80-511-0001-00 is a marine-grade 12V DC latching ON/OFF stainless steel push-button switch featuring an integrated Red LED halo ring illumination. Designed for through-panel mounting on helm consoles, dash control centers, and auxiliary switchboards, it provides physical circuit actuation for DC lighting, pumps, blowers, or instrument feeds up to 5 A.

Constructed with stainless steel body components and silver alloy contacts, the switch resists pitting, atmospheric tarnish, and internal arc-wear. Featuring IP67 environmental front-panel sealing, the assembly protects internal contacts against heavy spray, salt air, and washdowns. The red LED light ring can be wired to display active circuit power or wired independently as a backlighting halo for night operation.

Key Features

• Latching Push-ON / Push-OFF Actuation: Mechanically maintains state when pressed until actuated again to turn OFF.

• IP67 Sealed Stainless Steel Construction: Premium stainless body housing with internal O-ring seal resists saltwater splash and humidity.

• Silver Alloy Electrical Contacts: Ensures low contact resistance and high current transfer reliability under heavy 5A inductive loads.

• Flexible LED Wiring Options: Red LED halo ring can be connected to indicate load-active state or wired into panel backlighting circuits.

• Through-Panel Mounting: Compact threaded barrel mounts cleanly into standard dashboard cutout profiles with a rear locking nut.
