BEP 80-511-0004-00 Momentary 12V Blue LED Push Button

BEP Stainless Steel Momentary Push-Button Switch (12V Blue LED Ring)

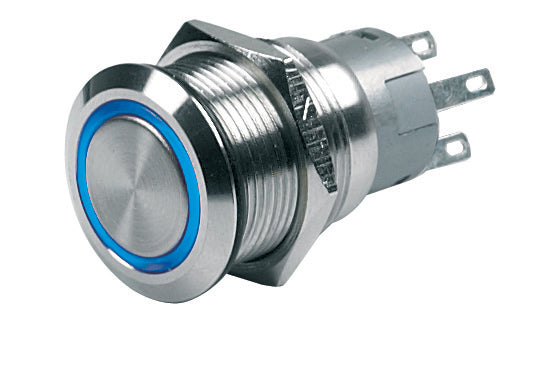

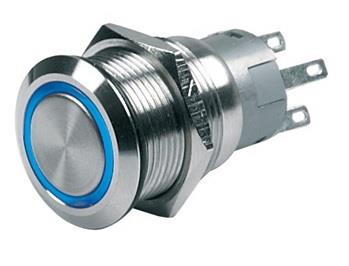

The BEP 80-511-0004-00 is a heavy-duty, marine-grade momentary (ON)/OFF stainless steel push-button switch featuring an integrated 12V DC Blue LED halo ring. Designed for through-panel mounting on helm consoles, flybridge dashboards, and distribution panels, it provides reliable switching for horn signals, engine start routines, trim tabs, or momentary digital circuit triggers.

Constructed with a 316-grade stainless steel body and silver alloy contacts, the 80-511-0004-00 resists pitting, salt air oxidation, and high-frequency vibration. Rated at IP67 for total waterproof protection across exposed panel faces, the integrated 12V DC Blue LED ring can be wired either as an active system status indicator (illuminated when pressed/active) or as a continuous dashboard night-backlighting circuit.

Key Features

• IP67 Waterproof Face Seal: Hermetically sealed housing protects internal contacts from salt spray washdowns, high humidity, and dust ingress.

• 316 Stainless Steel & Silver Alloy Contacts: Maximizes electrical conductivity while mitigating arc erosion and galvanic corrosion.

• Integrated 12V Blue LED Ring: Provides clean, low-glare visibility at the helm with flexible wiring options for active indicator or background halo lighting.

• Through-Panel Installation: Standard 19 mm mounting thread with rear securing nut and rubber sealing gasket ensures a tight panel seal.

• 5-Amp DC Current Handling: Direct switching capacity up to 5A at 12V DC without needing an auxiliary isolation relay for standard loads.

Specifications
