BEP-80-600-0029-00-MON SYS DCSM TANK PROBE INTERFACE

BEP Marine DCSM Tank Probe Interface Module (80-600-0029-00)

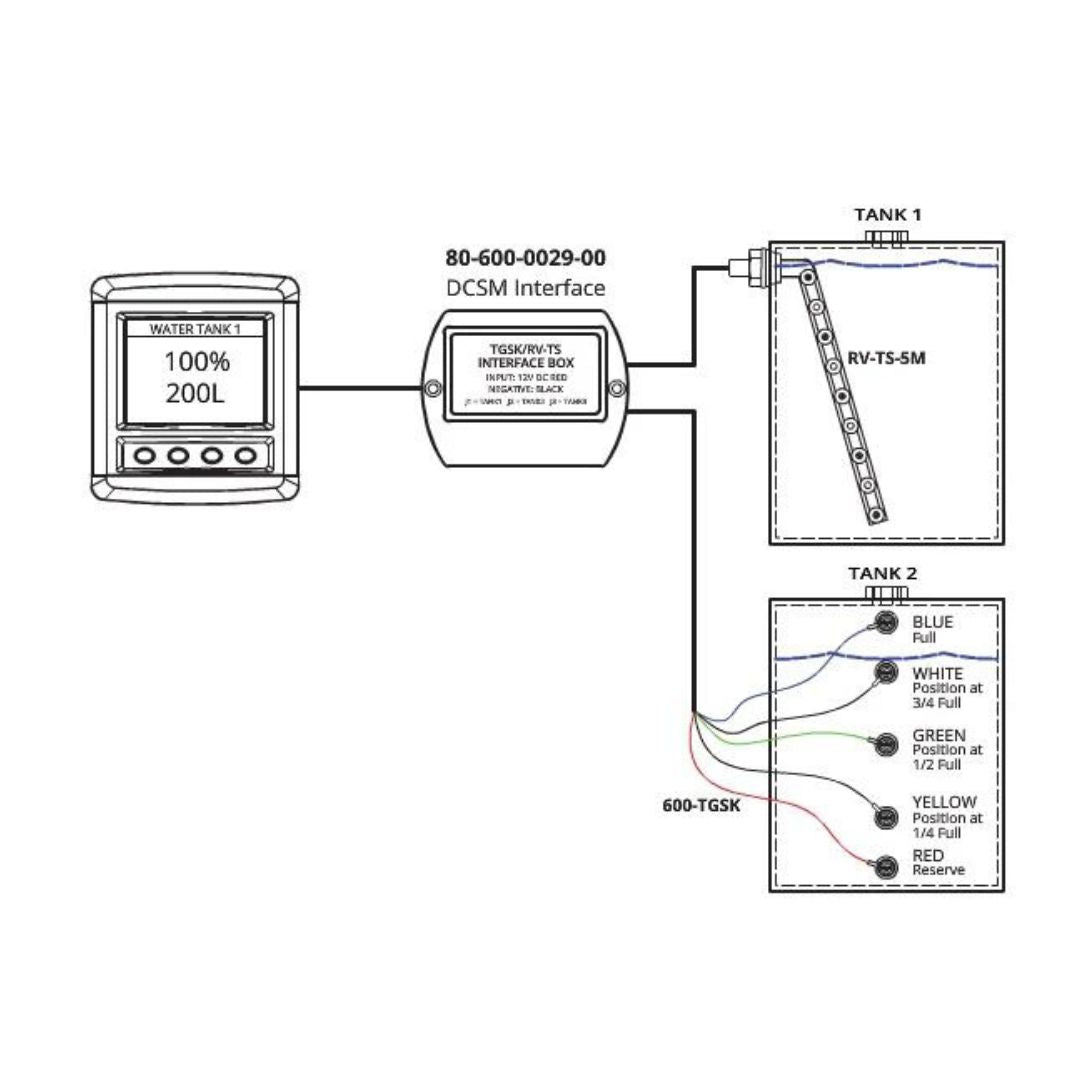

The BEP 80-600-0029-00 is an intelligent DCSM Tank Probe Interface Card designed to connect up to 4 fluid level senders to BEP DCSM (Digital Color Systems Monitor) displays or CZone networks. It translates signals from diverse tank senders—including 10–180 Ω European, 240–33 Ω American, 0–5V voltage-based, and capacitive ultrasonic senders—into standard digital telemetry.

Ideal for monitoring fuel, fresh water, greywater, and blackwater tanks, this module calibrates nonlinear tank shapes and eliminates signal noise caused by fluid sloshing. It provides accurate volume readouts and customizable alarm threshold monitoring across all connected tanks.

Key Features

• Multi-Input Compatibility: Accepts resistive (10–180 Ω / 240–33 Ω), voltage (0 - 5V), and 4 - 20mA tank senders.

• 4-Channel Tank Monitoring: Interfaces up to 4 independent fluid tanks simultaneously per module.

• Multi-Fluid Support: Pre-configured calibration profiles for Fuel, Fresh Water, Greywater, and Blackwater.

• Nonlinear Tank Calibration: Supports multi-point volume calibration for irregularly shaped hulls and tanks.

• Slosh Dampening: Electronic signal filtering prevents erratic level jump caused by wave action and boat motion.
