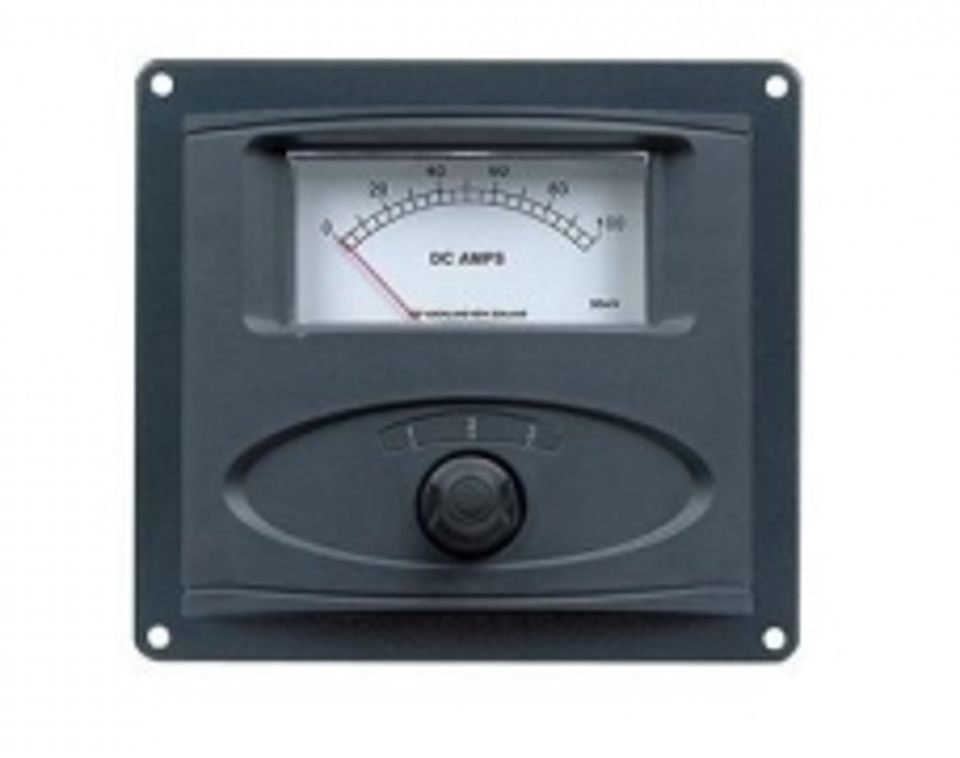

BEP 80-601-0026-00 Analog Ammeter 0-150A Panel

BEP Marine Contour Analog Ammeter Panel 0-150A DC (80-601-0026-00)

The BEP 80-601-0026-00 is a classic Contour-Series 0–150A DC Analog Ammeter Meter Panel designed for real-time monitoring of high-current marine electrical circuits, including main alternator outputs, inverter draw, solar charging arrays, and central battery banks.

Built into BEP's modular marine-grade panel housing, this meter features a high-accuracy moving-coil analog display with clear dial markings for rapid visual status checks. The system operates in conjunction with an external 50mV shunt (included/required depending on installation) to safely measure up to 150 A of continuous DC current without routing high-amperage cables directly to the dashboard.

Key Features

• 0–150A Analog Monitoring: High-contrast needle display allows immediate visual assessment of circuit load or charge rates.

• External Shunt Architecture: Operates via a low-voltage 50mV signal wire from a remote shunt, keeping high-current DC cables away from the helm.

• Internal Backlighting: Integrated dial illumination ensures clear readability during night-time navigation and low-light operation.

• Contour Modular Panel Design: Standardized footprint seamlessly integrates alongside BEP 600-series and 800-series breaker panels.

• Corrosion-Resistant Housing: Molded from high-impact, UV-stabilized polymer for reliable performance in marine salt-air environments.
