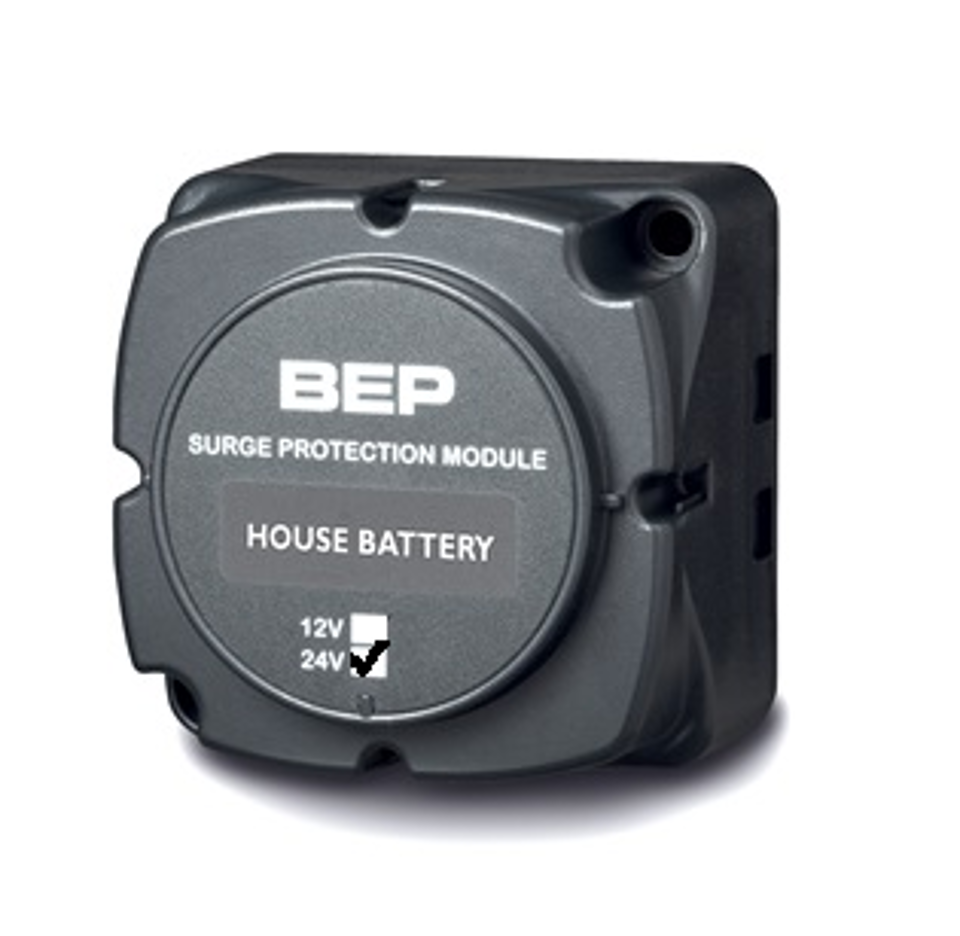

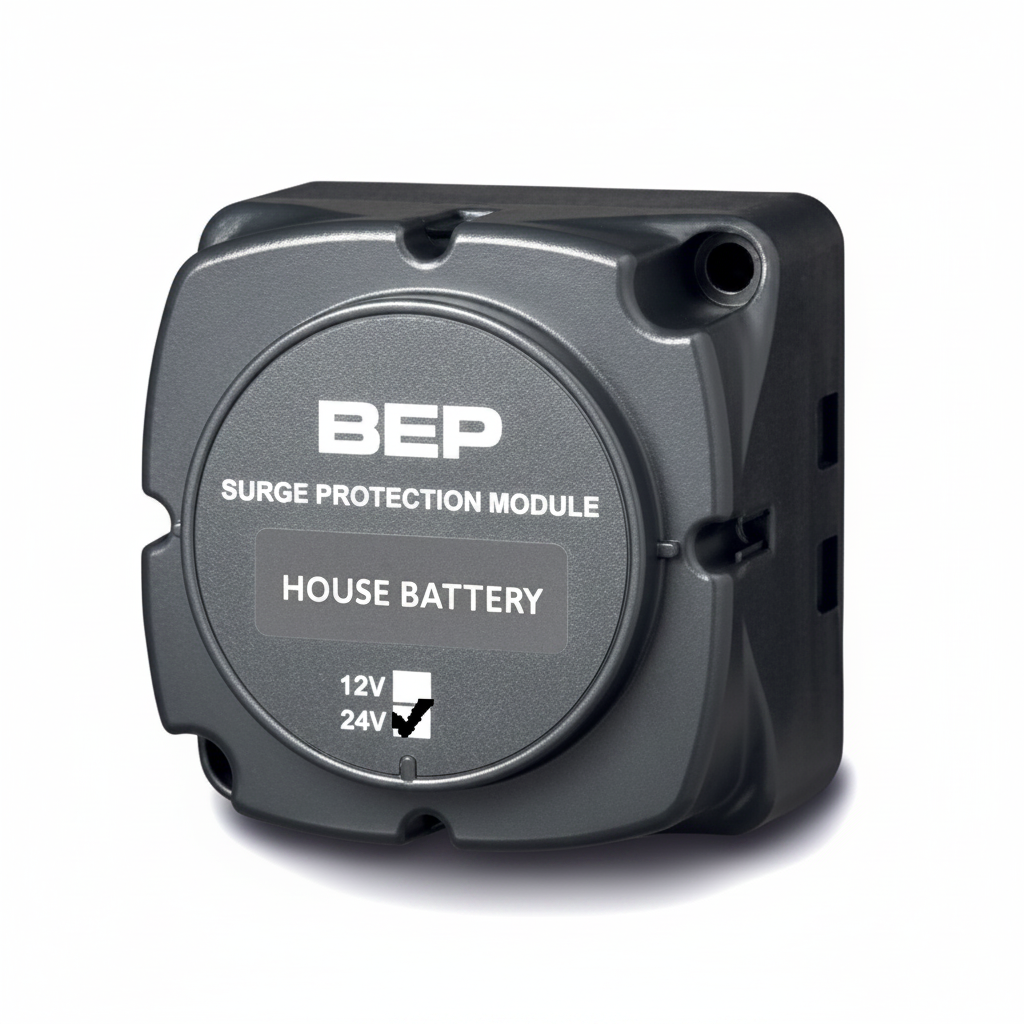

BEP 80-707-0005-00 24V DC Marine Surge Protection Module

BEP 24V DC Marine Electrical Surge Protection Module

The BEP 80-707-0005-00 is a heavy-duty, 100% solid-state 24V DC marine surge protection module engineered to safeguard sensitive onboard navigation electronics, CZone digital switching nodes, and communication gear from damaging voltage spikes. Designed for installation downstream of main battery disconnect switches and cable runs, it suppresses high-voltage transient pulses caused by motor inductive kickbacks, thruster switching, and severe load dumps (e.g., accidental alternator disconnects under heavy charge).

Operating continuously on 24V systems, the module clamps high-energy spikes down to a safe threshold. It incorporates an integrated Auxiliary Fault Signal Output that latches ON when a major high-energy overvoltage event occurs. This output can power a panel LED or external alarm relay to notify crew members of power supply anomalies, resetting automatically once power to the module is cycled.

Key Features

• ISO / SAE Load Dump Compliance: Meets ISO 7637-2 and ISO 16750-2 standards to protect electronics from severe alternator load dump events.

• Active Solid-State Clamping: Instantly clamps voltage spikes, preventing high-voltage propagation into downstream electronic sub-panels.

• Auxiliary Fault Alarm Output: Provides an auxiliary signal output (100mA - 250mA capacity) to drive a status LED or alarm relay during major surge events.

• Encapsulated Marine Design: Fully potted compact plastic housing protects internal solid-state circuitry against moisture, salt spray, and vibration.

• Simple In-Line Battery Wiring: Installed near protected distribution panels or sensitive loads with a primary inline supply fuse.

Specifications
