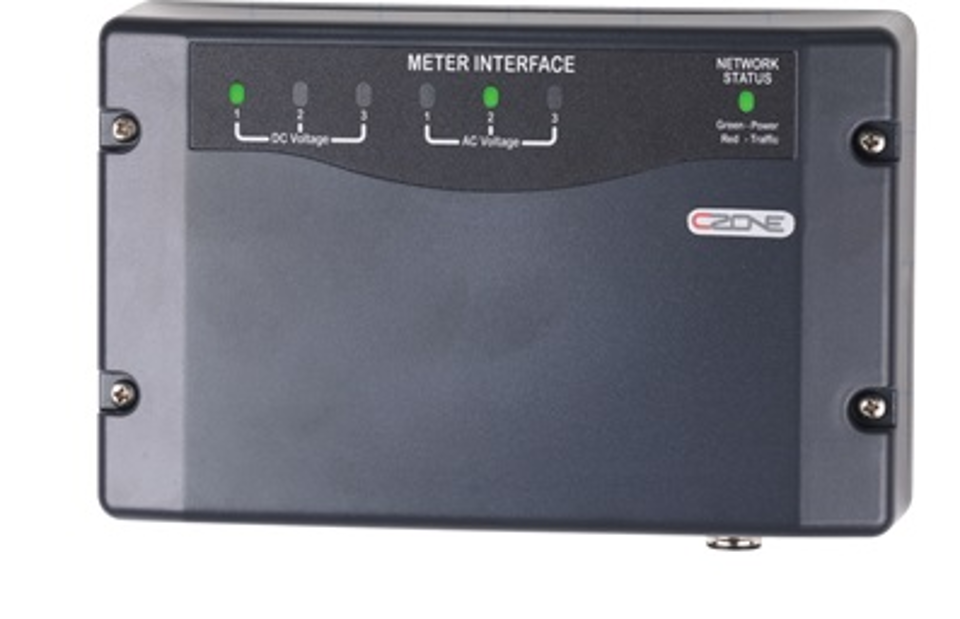

BEP CZone 80-911-0005-00 Meter Interface

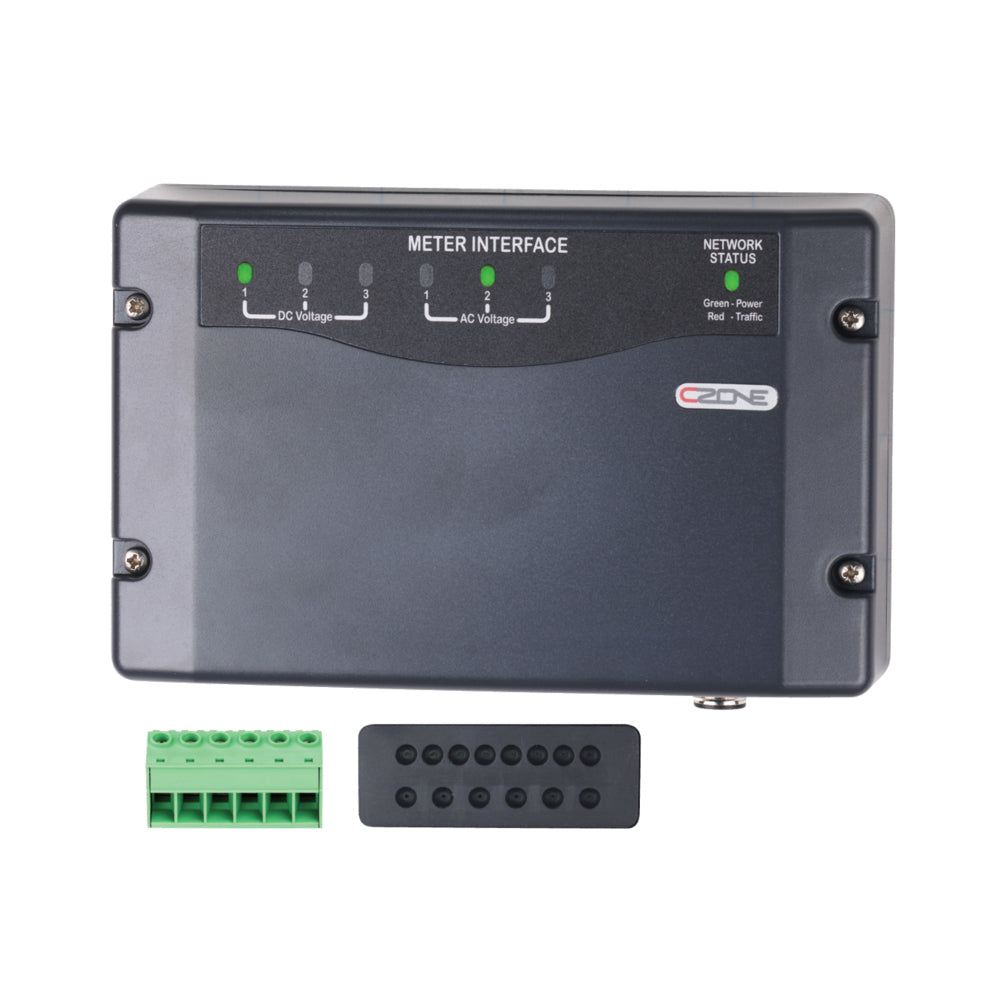

BEP / CZone Meter Interface (MI) with Seal & Plug

The BEP / CZone Meter Interface (80-911-0005-00) is an intelligent power monitoring module designed to digitize and process AC and DC power telemetry within a CZone / NMEA 2000 network. It accepts analog inputs from external voltage transformers, AC current transformers, and DC current shunts, broadcasting processed power parameters across the NMEA 2000 CAN bus.

The Meter Interface measures true RMS AC power, AC/DC voltage and current flow, and calculates DC battery metrics including State of Charge (SoC %), remaining battery capacity in Amp-hours, and time-to-empty. This complete kit variant includes a protective cable seal, waterproof glands, and blanking plugs to maintain an IPX5 water ingress rating in marine and mobile utility environments.

• AC: 3 x AC voltage inputs (multi voltage), 2 x AC current inputs, Calculates true RMS power
• DC: 3 x DC voltage inputs (multi voltage), 2 x DC current inputs, Calculates battery capacity as ampere hours and percentage charge remaining, Resolution for current metering down to 0.1 A
• General: Dimensions, WxHxD: 6-3/32"x3-29/32"x1-5/8" 156x100x42 mm, IPX5 water ingress protection, Outputs standard NMEA2000 power monitoring sentences
