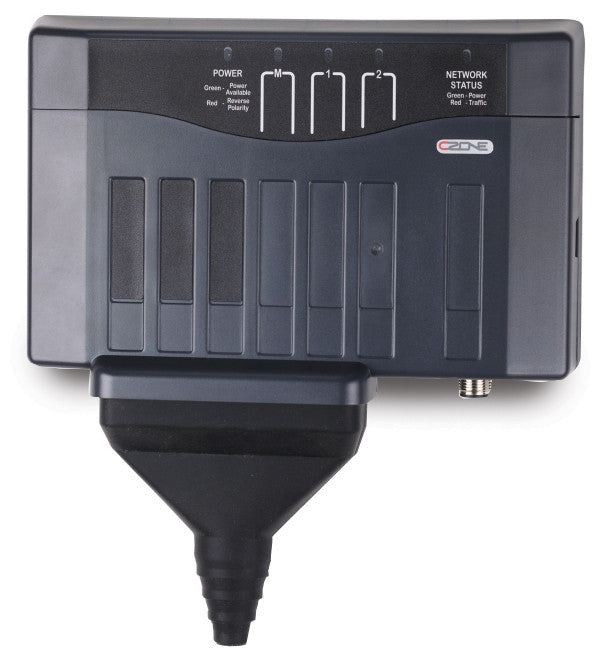

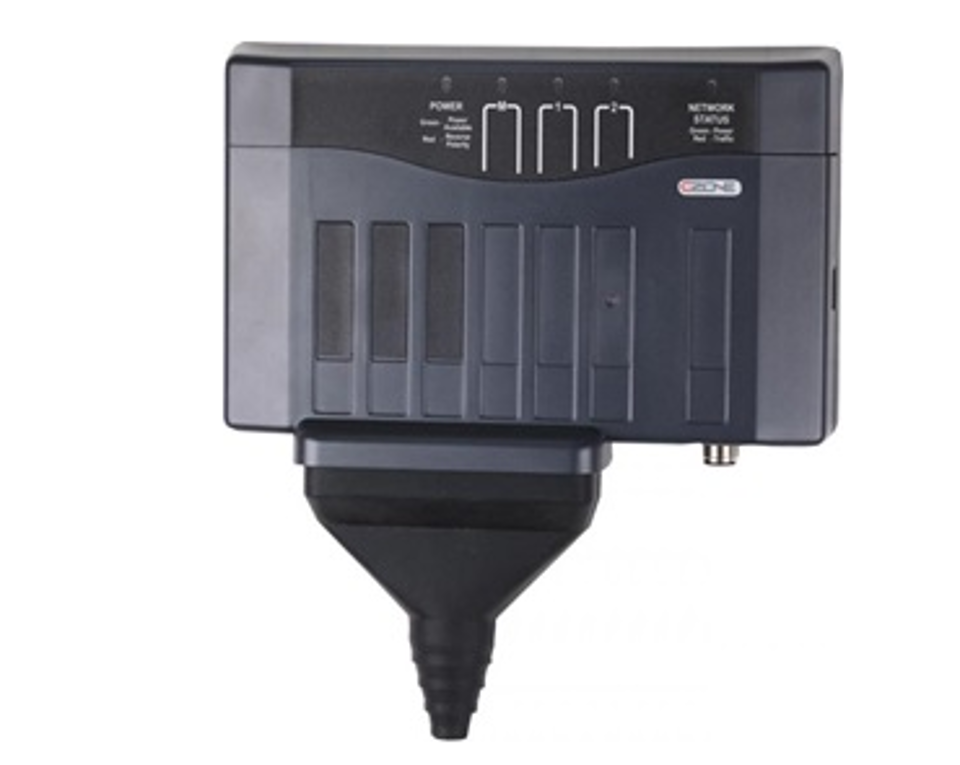

BEP CZone Motor Output Interface – Complete Kit (80-911-0007-00)

The BEP CZone 80-911-0007-00 is a full-kit Motor Output Interface (MOI) digital switching module designed to control reversible DC motor loads across marine and specialized vehicle systems. It enables seamless digital control of electric hatch lifters, power anchors, trim tabs, electric winches, and companionway doors via the CZone NMEA 2000 CAN-bus network.

Unlike bare module variants, this complete SKU (80-911-0007-00) comes fully equipped with the pluggable high-current output connector block and a protective, weather-sealing rubber boot for clean, IPX5 waterproof installations. The MOI features electronic overcurrent protection, mechanical emergency fuse bypass slots, and soft start/stop current ramping to prevent mechanical shock to connected gearboxes and actuators.

Key Features

• Complete Field Installation Kit: Includes the heavy-duty pluggable wiring connector and protective rubber boot for immediate installation.

• Reversible Polarity DC Control: Drives dual-direction DC motor loads by dynamically reversing output polarity.

• Soft Start & Soft Stop Ramping: Reduces peak surge current and extends mechanical motor and mechanical coupling lifespan.

• Emergency Manual Override: Features manual mechanical fuse positions for emergency bypass motor control during network dropouts.

• Electronic Overcurrent Protection: Configurable current limit thresholds protect against motor stalling and harness thermal overload.

Specifications
