BEP CZone 80-911-0008-00 Motor Output Interface

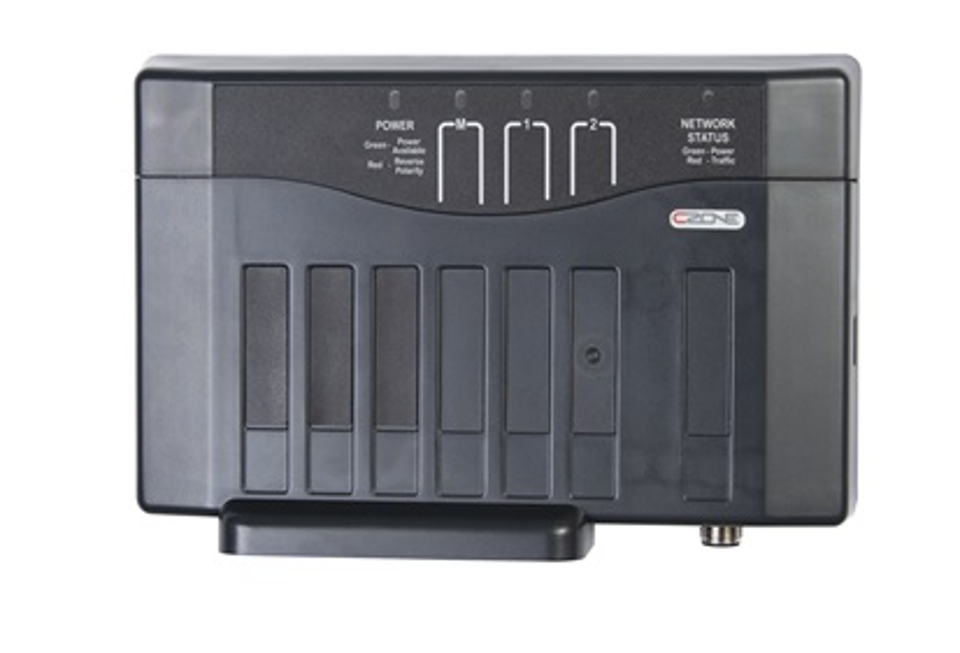

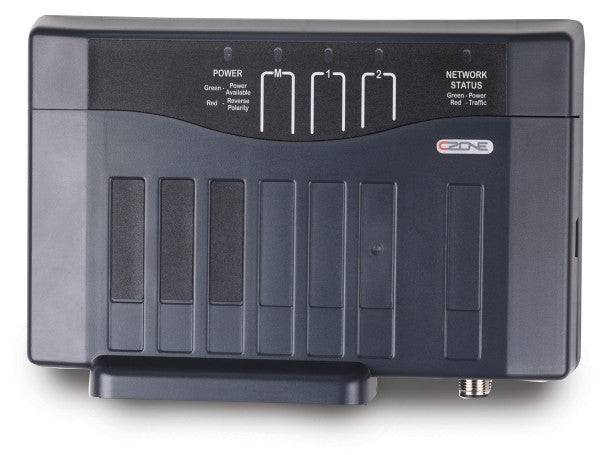

BEP CZone Motor Output Interface – Bare Module (80-911-0008-00)

The BEP CZone 80-911-0008-00 is an intelligent Motor Output Interface (MOI) digital switching module designed to control reversible DC motor loads across marine and specialized vehicle systems. It provides polarity-reversing motor control for electric hatch lifters, power anchors, trim tabs, electric winches, and automated companionway doors via the CZone NMEA 2000 CAN-bus network.

This specific SKU (80-911-0008-00) is supplied as the standalone replacement interface chassis without the pluggable wiring connector block or protective weather seal boot (ideal for retrofits or replacing damaged module units where existing harness connections remain intact). The MOI features electronic overcurrent protection, mechanical emergency fuse bypass slots, and soft start/stop current ramping to prevent mechanical shock to connected gearboxes and actuators.

Key Features

• Reversible Polarity DC Control: Drives dual-direction DC motor loads by dynamically reversing output polarity.

• Soft Start & Soft Stop Ramping: Reduces peak surge current and extends mechanical motor and mechanical coupling lifespan.

• Emergency Manual Override: Features manual mechanical fuse positions for emergency bypass motor control during network dropouts.

• Electronic Overcurrent Protection: Configurable current limit thresholds protect against motor stalling and harness thermal overload.

• CZone Networked Integration: Seamlessly integrates into CZone setups for automated timed sequences and system presets.

Specifications
