BEP CZone SCI Cable 0.5m RJ45 Carling

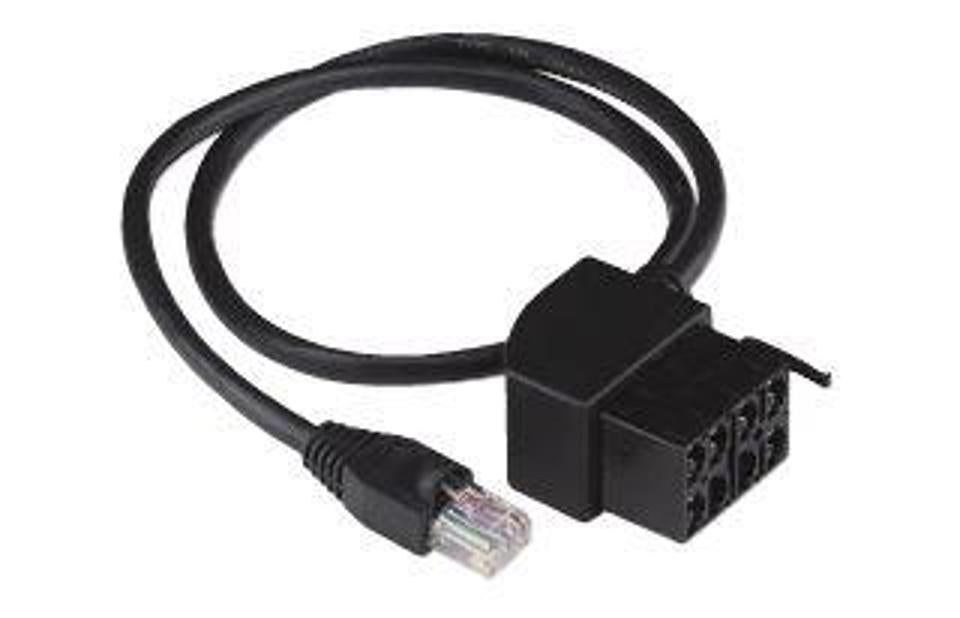

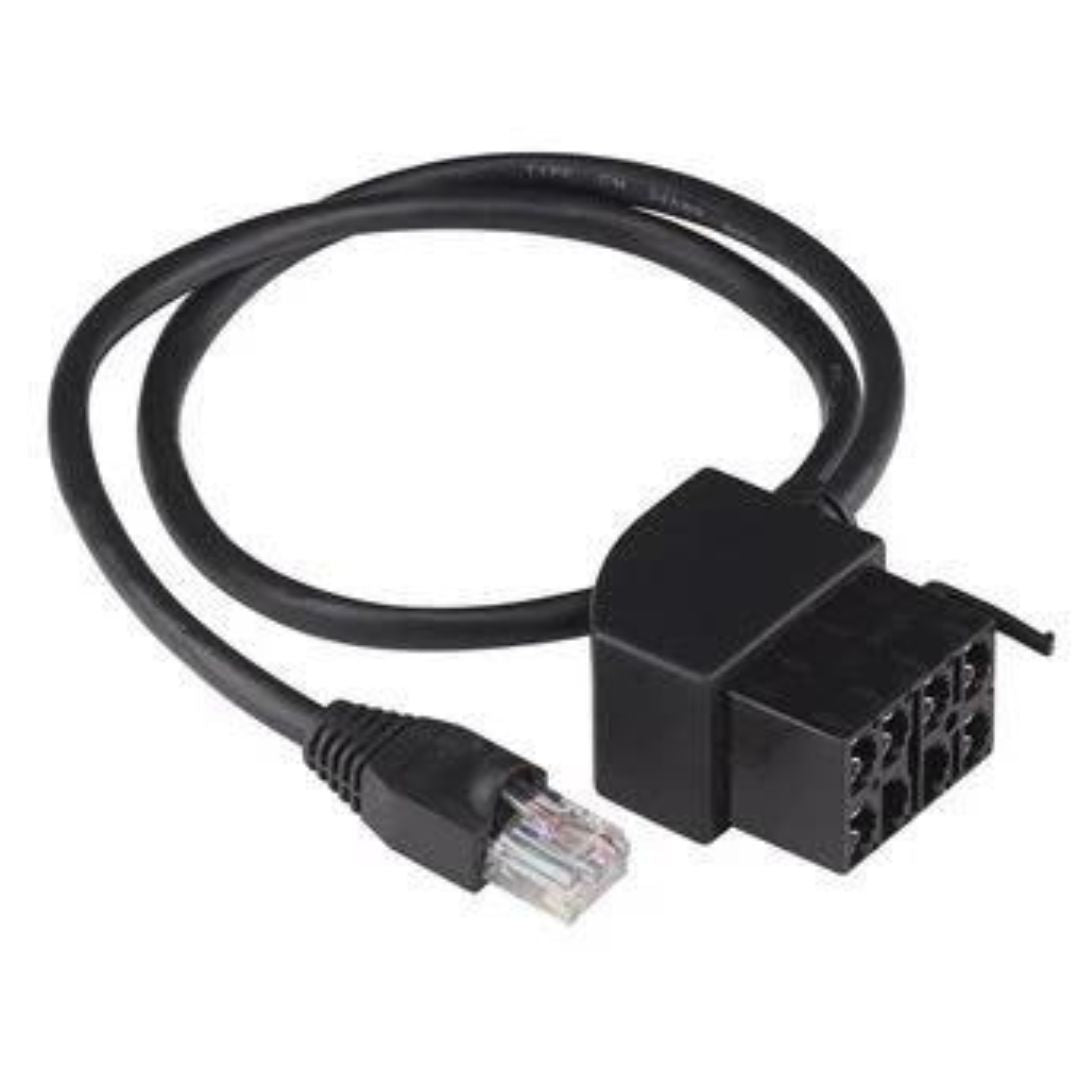

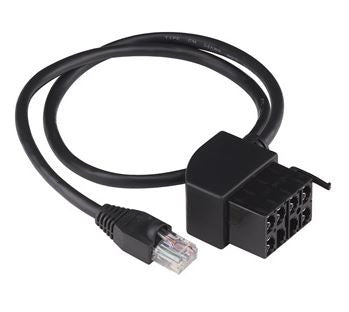

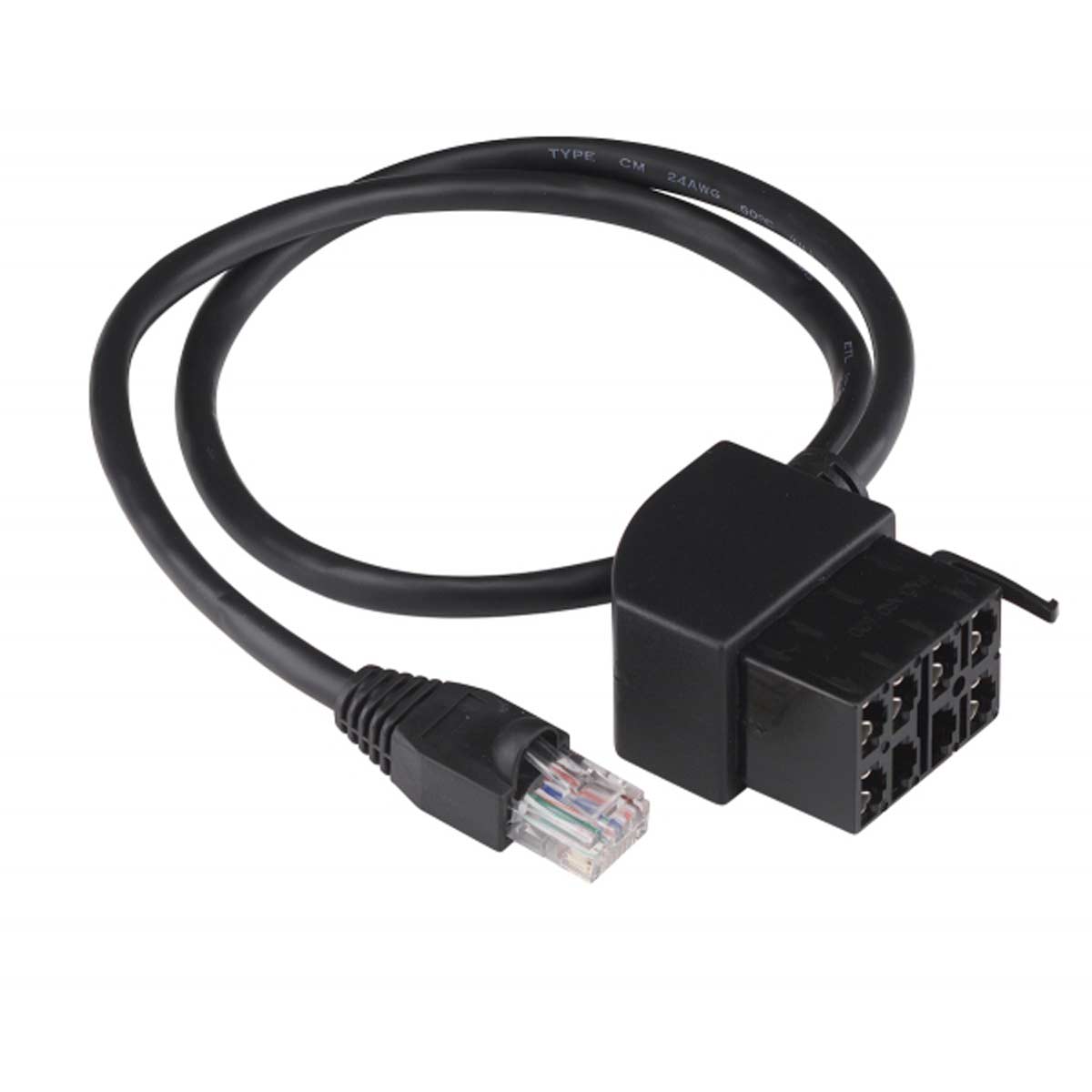

BEP / CZone Switch Control Interface (SCI) 0.5m RJ45 Cable

The BEP / CZone SCI Cable (0.5m) is a specialized marine interconnect cable designed to establish a direct communication link between physical Carling V-Series rocker switches and the CZone Switch Control Interface (SCI) module. It simplifies harness wiring in digital switching installations by eliminating individual terminal leads and consolidating switch signals into a structured drop connection.

Constructed with oil- and UV-resistant marine-grade jacket materials, this 0.5-meter cable features a molded RJ45 plug on one end to interface with the SCI board port and an integrated Carling-compatible connector housing on the other. This setup provides plug-and-play manual inputs for up to 6 switch positions per harness, maintaining low contact resistance and protecting signal integrity in harsh marine helm environments.

Key Features

• Plug-and-Play Integration: Directly connects standard Carling rocker switches to a CZone SCI module without manual wire stripping or custom crimping.

• Streamlined Harness Routing: Consolidates multi-switch signals into a single shielded cable, significantly reducing dashboard wire clutter.

• Vibration-Proof Locking Tabs: Features positive locking latches at both the RJ45 and Carling ends to prevent accidental disconnection due to hull impacts or engine vibration.

• Marine-Grade Cable Construction: Tinned copper conductors inside a flexible, chemical-, oil-, and flame-retardant outer jacket.

• Optimized Short Drop Length: The 0.5m length is suited for high-density, localized switch banks directly adjacent to the SCI module enclosure.
