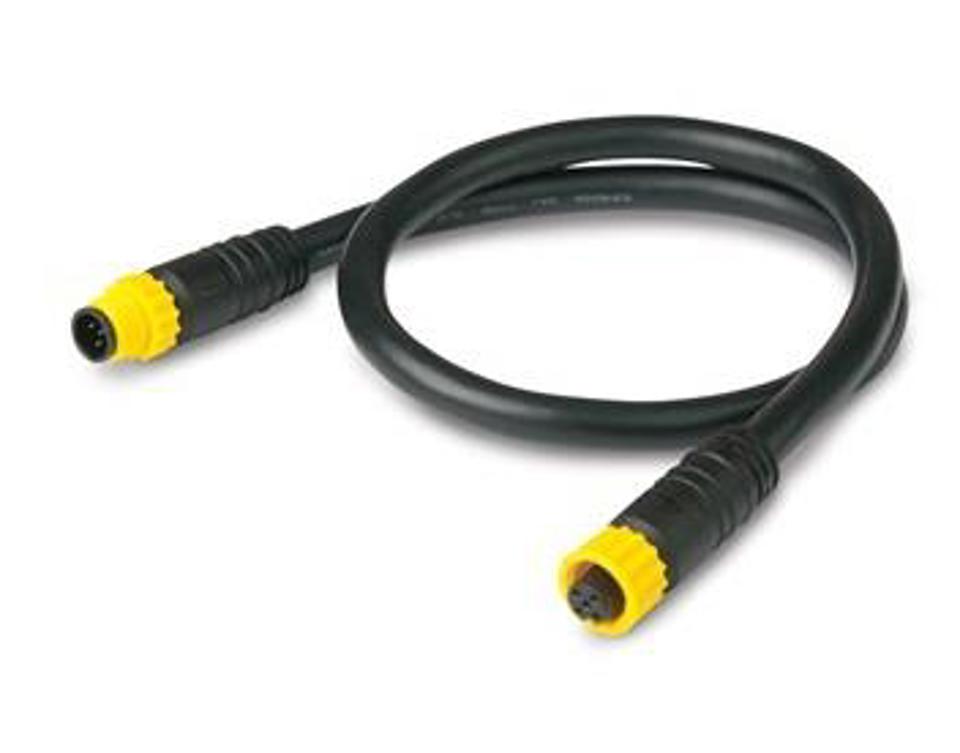

CZone 80-911-0024-00 NMEA 2000 5m Backbone Cable

BEP / CZone NMEA 2000 5m Backbone Cable

The BEP / CZone 80-911-0024-00 is a 5-m (16.4 ft) marine-grade NMEA 2000 Micro-C backbone cable engineered for low-voltage-drop performance across main network runs. It carries high-speed CAN-bus data alongside 12V DC power to connect T-connectors, power taps, and network interfaces over extended vessel distances.

Unlike thinner drop cables, the 80-911-0024-00 utilizes heavy-gauge 18 AWG power conductors paired with shielded 22 AWG twisted-pair data lines. This heavy-duty gauge minimizes line resistance and voltage drop, ensuring stable DC supply to connected displays, sensors, and CZone digital switching modules. Equipped with signature yellow identification couplers, it features gold-plated pin contacts and an IP68 waterproof rating for exposure to harsh marine environments.

Key Features

• Low Voltage Drop Construction: 18 AWG power lines preserve system voltage integrity across long main-bus cable runs.

• IP68 Submersible Sealing: Precision-molded strain relief couplings with internal O-rings protect internal pin connections from saltwater and bilge moisture.

• Gold-Plated Contacts: Gold-plated copper alloy pins and sockets provide maximum signal conductivity and corrosion resistance.

• Yellow Color-Coded Couplers: Provides quick identification during helm installation to prevent mixing backbone and drop cable gauge standards.

• Universal Micro-C Compatibility: Fully compliant with NMEA 2000 standards and compatible with Garmin, Lowrance, Simrad, Raymarine, and CZone hardware.
