BEP CZone 80-911-0026-00 NMEA 2000 0.5m Extension Cable

BEP / CZone NMEA 2000 0.5m Backbone Extension Cable

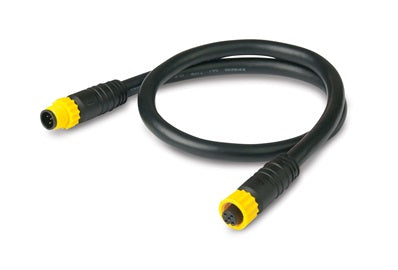

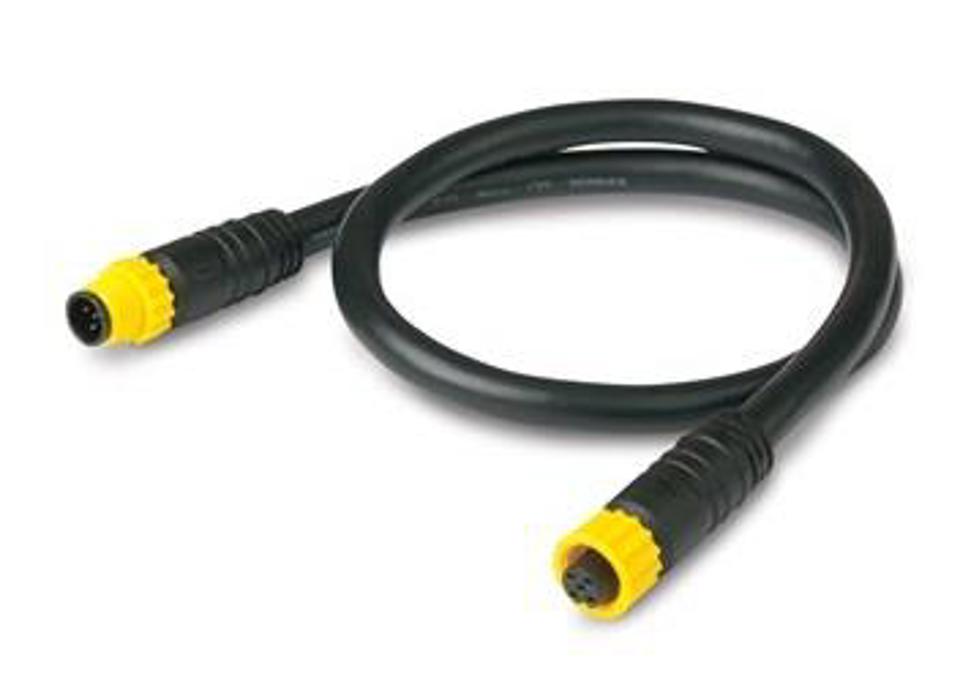

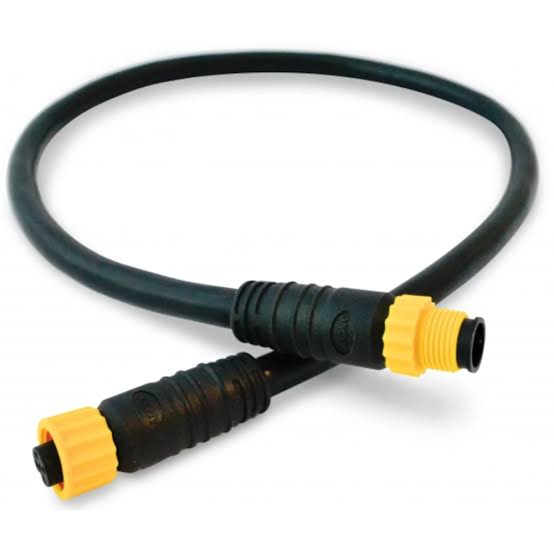

The BEP / CZone 80-911-0026-00 is an industry-standard NMEA 2000 (IEC 61162-3 / DeviceNet Micro-C) 0.5-m (1.6 ft) backbone extension cable. Designed to extend network CAN-bus backbones between T-connectors, multi-port hubs, or power taps, it features heavier-gauge copper power conductors specifically engineered to minimize voltage drop over marine network backbones.

Equipped with factory-molded 5-pin Micro-C connectors (1 x Male straight, 1 x Female straight) and yellow coupling nuts to distinguish backbone infrastructure from black-coupled drop lines, the cable ensures a secure, vibration-resistant IP67 waterproof seal. It is fully cross-compatible with NMEA 2000 certified hardware from CZone, Lowrance, Simrad, B&G, Garmin, Raymarine, and Ancor.

Key Features

• Low-Voltage-Drop Backbone Gauge: Constructed with larger copper wire gauge for main trunk lines to ensure stable supply voltage to downstream CAN nodes.

• IP67 Waterproof Rating: Sealed overmolded connectors resist engine room humidity, saltwater spray, and bilge condensation.

• Yellow Color-Coded Collars: Yellow metallic coupling nuts provide instant visual identification of backbone trunks versus black drop cables during installation and troubleshooting.

• Pre-Terminated Micro-C Connectors: Features precision 5-pin male and female connectors with gold-plated copper contacts for maximum corrosion resistance and low signal loss.

• Compact Short-Run Length: 0.5m (1.6 ft) length ideal for bridging closely spaced multi-port T-blocks or adjacent digital switching modules inside helm consoles.
