BEP CZone 80-911-0029-00 NMEA 2000 T-Piece Connector

BEP / CZone NMEA 2000 Micro-C T-Piece Connector

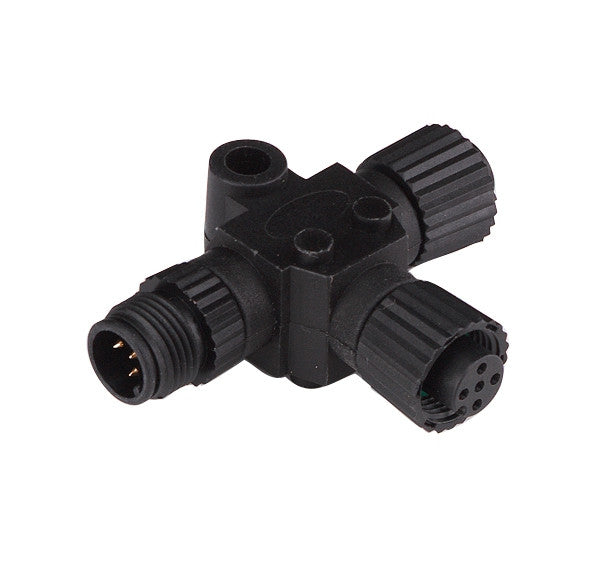

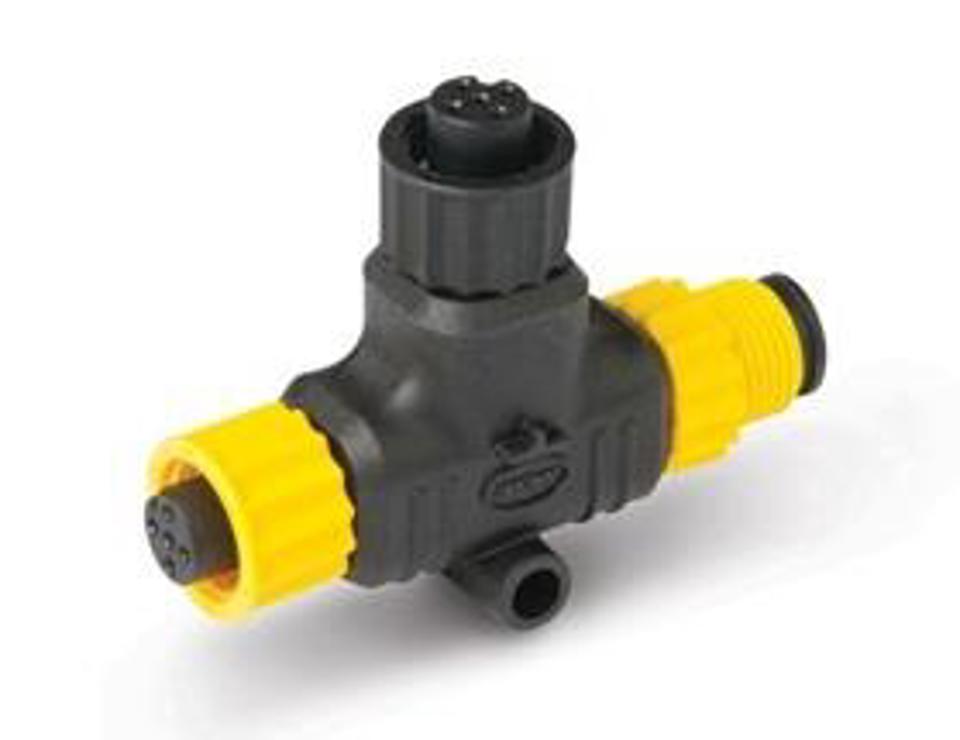

The BEP / CZone 80-911-0029-00 is an industry-standard NMEA 2000 (IEC 61162-3 / DeviceNet Micro-C) 3-way T-piece connector designed to tap drop lines into an NMEA 2000 CAN-bus backbone. It enables seamless network expansion by splitting the backbone signal path to connect display units, sensor modules, digital switching interfaces, engine gateways, and power tap cables.

Constructed from flame-retardant, overmolded thermoplastic with threaded metal coupling collars, the 80-911-0029-00 provides IP67 waterproof protection against harsh engine room and bilge conditions. Featuring a standardized 5-pin configuration (1 x Micro-C Male, 1 x Micro-C Female along the backbone, and 1 x Micro-C Female drop port), it is fully cross-compatible with NMEA 2000 certified hardware from CZone, Lowrance, Simrad, B&G, Garmin, Raymarine, and Ancor.

Key Features

• Standardized Micro-C Interface: Allows universal plug-and-play integration with all NMEA 2000 certified devices and cables.

• IP67 Waterproof Rating: Molded housing with internal rubber O-rings ensures dust-tight performance and resistance to continuous marine moisture.

• Threaded Locking Collars: Machined metallic coupling rings ensure vibration-proof connections that resist accidental decoupling under heavy sea conditions.

• Low Contact Resistance: Gold-plated copper alloy pins guarantee high signal integrity and minimal voltage drop across CAN-bus data and power lines.

• Compact Footprint: Space-saving design simplifies cable management behind helm consoles and inside tight distribution bays.
