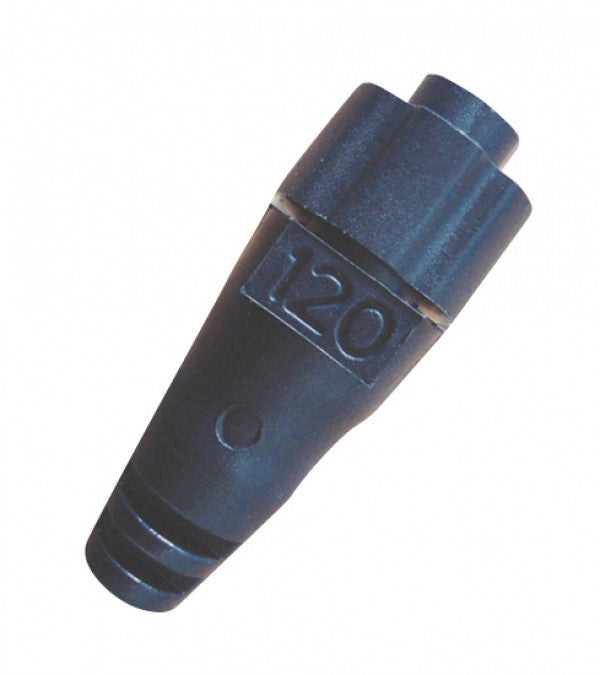

BEP / CZone NMEA 2000 Female Terminating Resistor

The BEP / CZone 80-911-0030-00 is an essential 120 Ω NMEA 2000 female terminating resistor engineered to complete the physical layer of an NMEA 2000 (IEC 61162-3 / DeviceNet Micro-C) marine CAN bus network backbone. Every NMEA 2000 network requires exactly two 120 Ω terminators—one female and one male—installed at the extreme physical ends of the backbone trunk line to absorb signal reflections, prevent standing wave interference, and maintain system-wide 60 Ω nominal bus impedance.

Housed in a rugged, overmolded polymer shell with an internal threaded coupling collar, the 80-911-0030-00 provides IP67 waterproof protection against continuous salt spray, engine room heat, and high-vibration marine environments. Its standard 5-pin Micro-C female socket interface mates seamlessly with standard NMEA 2000 male T-connector ends, backbone drop tees, and multi-port distribution blocks across BEP, CZone, Ancor, Lowrance, Simrad, Garmin, and Raymarine marine electronics networks.

Use at either end of the NMEA backbone to complete the network. Each network must have a male and female terminator.
